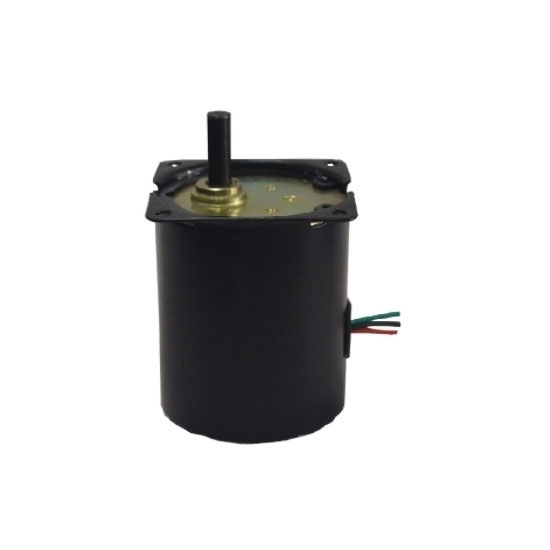

    30 rpm AC Synchronous Gear Motor, 24V/110V/220V

    5 out of 5 based on 8 reviews | Write a review
    Low price AC PM synchronous gear motor for sale, 1 phase, 30 rpm low output speed at 15/ 20 Kgf•cm output torque, optional voltage 24V/ 110V/ 220V – 240V, 50/ 60Hz, duty type S1 continues or S2 (30 mins). It is CW or CCW rotation at constant speed.
    SKU: ATO-60TYD-B30
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 30-40 Days

    AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.


    Model ATO-60TYD-B30
    Duty Type S1 Continues S2 (30 mins)
    Voltage (AC) 24V 110V 220V-240V 24V 110V 220V-240V
    Power Frequency 50/60 Hz 50/60 Hz
    Output Speed 30 rpm
    Output Torque 15 Kgf·cm 20 Kgf·cm
    Rated Speed 1200 rpm 1200 rpm
    Input Power < 17W < 25W
    Input Current < 0.65A < 0.15A < 0.08A < 1.5A < 0.35A < 0.2A
    Rotation CW/CCW (Reversible) CW/CCW (Reversible)
    Operating Temperature -15 ~ 40℃ -15 ~ 40℃
    Coil Temperature Rise < 80K < 80K
    Insulation Class B B
    Insulation Strength AC 1500/ 50Hz/min AC 1500/ 50Hz/min
    Recommended Capacitance 47μF/ 63V 2.2μF/ 250V 0.56μF/ 450V 67μF/ 63V 3.0μF/ 250V 0.8μF/ 450V

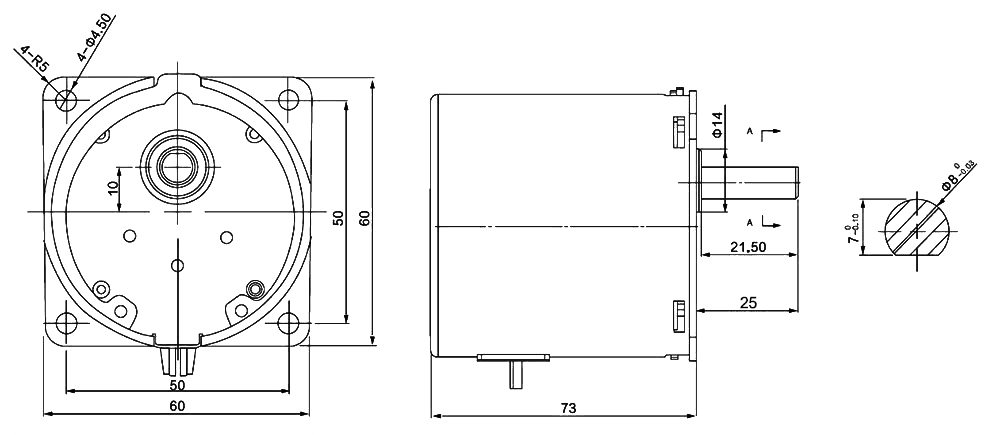

    Dimensions (Units: mm)

    Dimensions of 30 rpm AC Synchronous Gear Motor

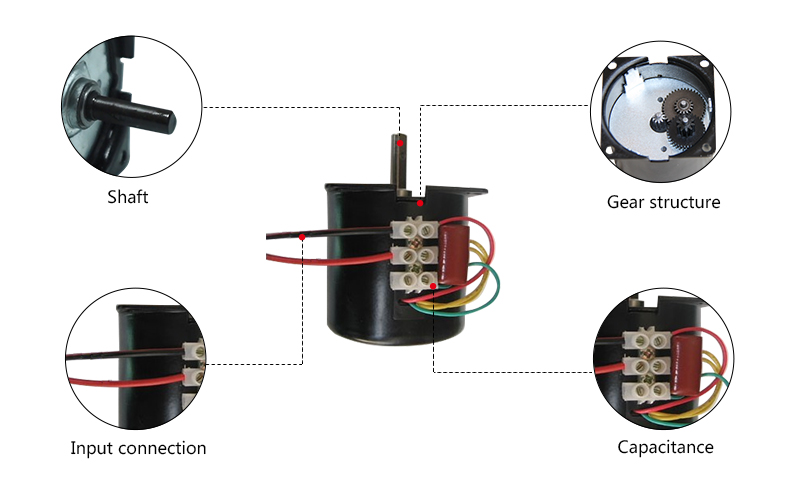

    30rpm AC Synchronous Gear Motor Details

    Tips: Advantages of AC permanent magnet synchronous motor

    • The AC permanent magnet synchronous motor has high power efficiency and high power factor.
    • PMSM motor has small heating, so its cooling system has simple structure, small volume and low noise.
    • Its system adopts fully closed structure, no transmission gear wear and noise, no lubricating oil, no maintenance.
    • PM synchronous motor allows high overload current, which has apparent reliability.
    • It adopts permanent magnet pole, especially rare earth metal permanent magnet, such as NdFeB, which has high magnetic energy allowing it to obtain the higher air gap flux density. Therefore, in the same capacity, the synchronous motor is small in size and light in weight.
    • Its rotor has no collector ring and brush friction loss, so it has high operating efficiency.
    • It has small rotating inertia and allows high pulse torque to get higher accelerated speed.
