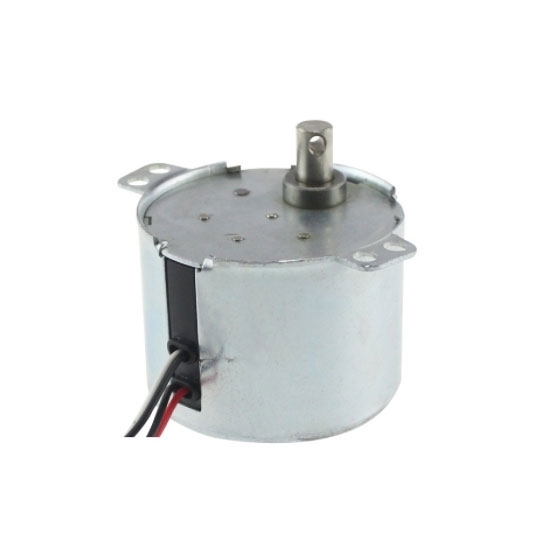

2.5 rpm AC Synchronous Gear Motor, 12V/24V/110V/220V

5 out of 5 based on 6 reviews | Write a review

$50.33

2.5 rpm AC synchronous motor for sale at low price, single phase, low speed at 18 Kgf•cm output torque, selectable 12V/24V/110V/220V, 50/ 60Hz, permanent magnet gear motor is CW or CCW rotation and starts by capacitor.

SKU: ATO-49TYD-3752-25

Voltage (AC) *
Frequency *

This product has a minimum quantity of 2

Qty:

Free Shipping Worldwide

Delivery date: 30-40 Days

Overview

AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc.

Specification

Model	ATO-49TYD-3752-25
Voltage (AC)	12V	24V	110V	220V
Power Frequency	50/60 Hz
Output Speed	2.5 rpm
Output Torque	18 Kgf·cm
Rated Speed	1200 rpm
Input Power	≤ 5W
Input Current	≤ 420mA	≤ 220mA	≤ 50mA	≤ 25mA
Rotation	CW/CCW (Reversible)
Operating Temperature	-15 ~ 40℃
Coil Temperature Rise	< 45K
Insulation Class	B
Insulation Strength	AC 1500/ 50Hz/min
Recommended Capacitance	40μF/ 63V	10μF/ 63V	0.47μF/ 250V	0.15μF/ 450V

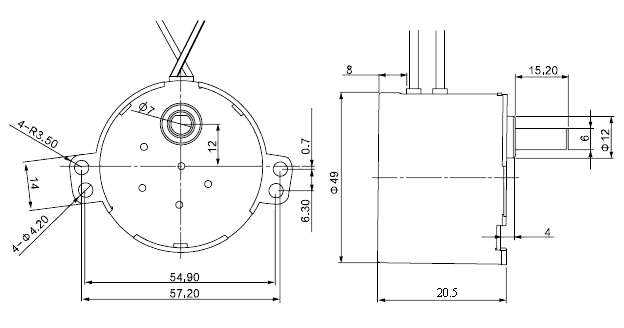

Dimensions (Units: mm)

Dimensions of 2.5 rmp AC Synchronous Gear Motor

Details

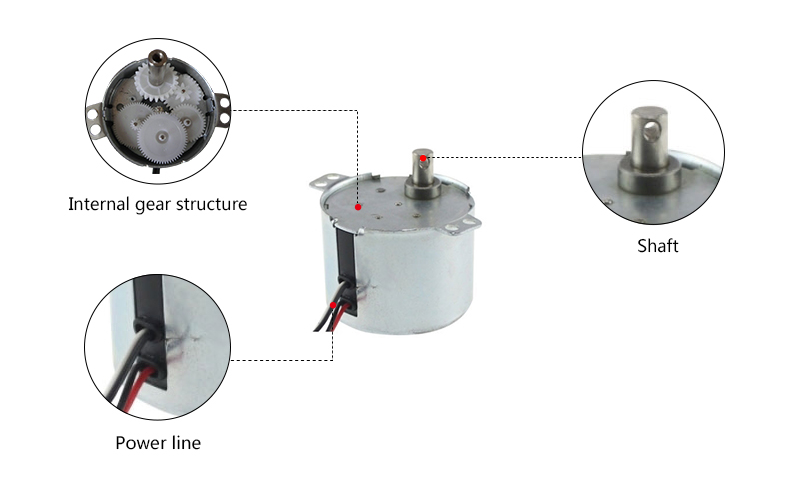

2.5rpm AC Synchronous Gear Motor Details

Tips: Difference between synchronous motor and asynchronous motor

Difference in design
The biggest difference between synchronous motor and asynchronous motor is that if their rotor speed and stator rotating magnetic field are consistent. The rotor speed and the stator rotating magnetic field is the same, called synchronous motor, otherwise, it is called asynchronous motor. In addition, the stator windings of the synchronous motor and asynchronous motor are the same, but the difference lies the rotor structure of the motor. The rotor of the synchronous motor is short circuited winding that relies on electromagnetic induction to produce electric current, so it is also called induction motor. And the rotor structure of the synchronous motor is relatively complicated, it needs external excitation power supply and pull-in current through slip ring.
Difference in reactive power
Asynchronous motor can only absorb reactive power, synchronous motor not only can emit reactive power, but also can absorb reactive power.
Difference in functions
Synchronous motor is mostly used in large generators, while asynchronous motor is almost used in motor occasions.
