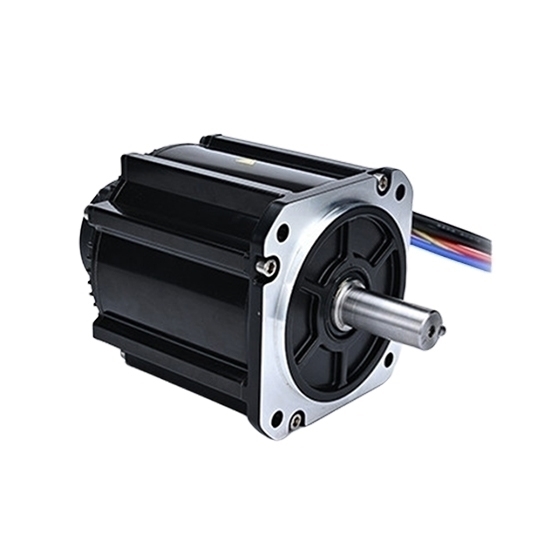

7500W 96V DC Servo Motor, 48Nm, 1500rpm

7500W servo motor runs at 1500rpm with a 96V DC supply, delivering accurate positioning via a high-resolution encoder. An optional brake (>55N·m) enhances stability in CNC machines and automated systems.

Basic Specifications

• Model: ATO-180TM48015I5-C; ATO-180TM48015I5-CB
• Rated Power: 7500W
• Rated Voltage: 96V DC
• Rated Current: 101.5±10%Arms
• Rated Torque: 48 N.m
• Peak Torque: 96 N.m
• Rated Speed: 1500 rpm
• Max. Speed: 2000 rpm
• Weight:32kg; 34kg (with brake)
• Power Line Socket: Signal Leads Color-PE (yellow-green), U (red), V (blue), W (black), 24V (thin red), BRK (thin black)

Technical Parameters

• Vibration Class: Class F
• Line Resistance: 0.014 Ω±10% (25 °C)
• Line Inductance: 0.236 mH±10%
• Line Back EMF: 29.2 V/krpm ±10%
• Torque Coefficient: 0.48 N·m/A ±10%
• Rotor Moment of Inertia: 150 × 10⁻⁴ kg·m² ±10%; 153±10% (with brake)
• Feedback Component: Incremental Encoder, 2500 PPR
• Static Torque: >55Nm (with brake)
• Rated Voltage: DC24V±10% 2.4A (with brake)
• Insulation Resistance: DC 500 V, > 20 MΩ
• Ambient Temperature: -20～+40℃
• Ambient Humidity: 20～80% No Condensation

Features

1. Provides 48 N·m rated and 96 N·m peak torque, delivering stable power for precise motion with the 7500W 96V DC servo motor at 1500 rpm.
2. Runs efficiently with permanent magnet excitation, reducing energy loss and heat for the 96V DC servo motor.
3. Offers accurate feedback control via a 2500 PPR encoder, ensuring precise speed and position in automation use.
4. Built for reliability with an IP54-rated housing, the DC servo motor operates quietly and steadily from –20℃ to +40℃.

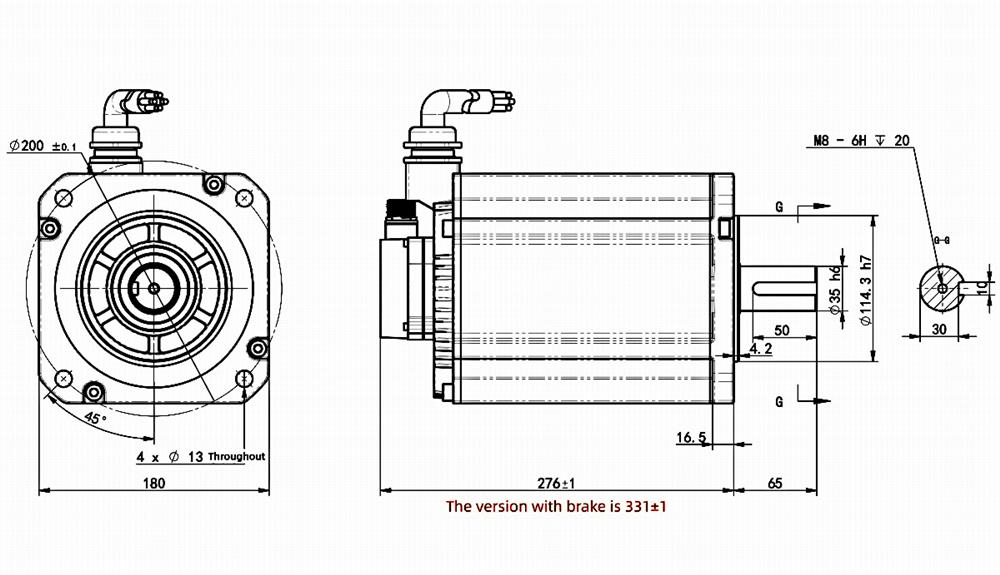

Dimension

Encoder Socket

Overload Characteristics

The characteristics are measured in the warm-boot conditions at 40℃:

Tips: Where Servo Motors Are Used?

Servo motors are widely used in industrial automation, where precision and stability are essential. Typical applications include CNC machinery, robotic arms, packaging systems, conveyor equipment, and motion control platforms. They are also found in automated assembly lines, material handling systems, and smart manufacturing, providing accurate positioning, smooth movement, and high efficiency across a range of industries.
