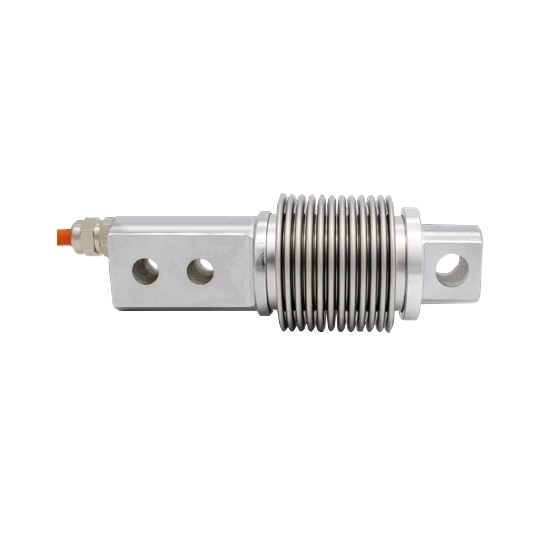

Beam Load Cell, 10kg/20kg/30kg/50kg/100kg/200kg/500kg to 1000kg

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Beam load cells have capacity range from 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg to 1000kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	ATO-S-LCB-DYBW-106
Weight	0.5~1.5kg
Capacity Range *	10kg~1000kg
Matched Display Controller	ATO-DDC5-CHB (Click it to the controller page)
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.05mV/V (Low range variations may differ)
Creep	±0.03%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.02%F.S/10℃
Temperature Effect on Output	±0.02%F.S/10℃
Operating Temperature	-40℃~+80℃
Input Impedance	352±10Ω
Output Impedance	350±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Overload Limit	200%F.S
Bridge Voltage (excitation voltage)	DC 5-10V
Material	Alloy steel (filled with inert gas)
Protection Class	IP68
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

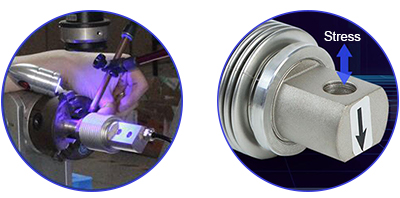

Feature

High Precision & Stability: Ensures accurate detection with excellent stability and strong anti-interference capability.
Laser Welded Waterproof Sealing: Features professional laser welding and an integrated sealing structure, achieving IP67 waterproof performance.
Durable Steel Construction: Made from high-quality stainless steel or alloy steel for superior mechanical fatigue resistance and longer lifespan.
Wide Application: Designed for various environments with waterproof and corrosion-resistant properties, suitable for platform scales, bench scales, conveyor scales, small scales, and silo weighing systems.
Modular Compatibility: Supports integration with additional modules for enhanced functionality.

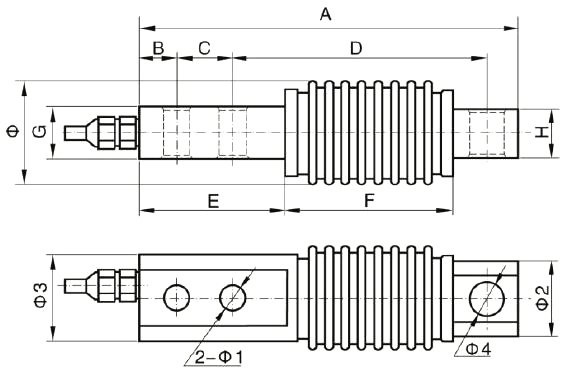

Dimension

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H	Φ	Φ1	Φ2	Φ3	Φ4
10~200kg	123	13	18	82	45	59	22	20	45	8.5	27	32	11
300~1000kg	210	15	40	133	93	64	34	25	60	13	35	50	14

Wiring Method

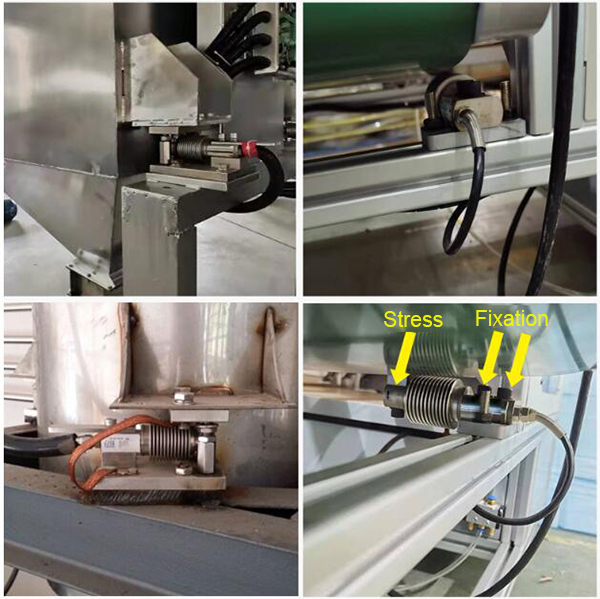

Application

Tips: Beam load cell with bellows vs single point load cell

Structure: Both of them are beam load cells. The difference is that the beam load cell with bellows is a cantilever beam structure and the single point load cell is a parallel beam structure.
Application: Using for the platform scale or hopper scale, beam load cells with bellows are used to combine into a group of four or three units. Single point load cell generally uses only one in the middle of a pricing scale or a human scale. The single point load cell is calibrated for angular differences before leaving the factory.
Operating environment: The beam load cell with bellows can be used for both static and dynamic weighing, and the unique bellows seal allows it to be used in very harsh weighing environments. The single point load cell can only be used for static weighing and should be away from harsh environment. But its impact resistance and stability are good.
