Cantilever Beam Load Cell, 500kg/1000kg/2 ton/3 ton/5 ton

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Cheap cantilever beam load cells have capacity range from 500kg/1000kg/2 ton/3 ton to 5 ton. Capacity of Load cell can be customized according to customer's requirements.

Specification

Model	ATO-LCB-DYHLJ
Shipping Weight	1.1~5kg
Capacity Range *	500kg/1000kg/2 ton/3 ton/5 ton
Matched Display Controller	ATO-DDC5-CHB (Click it to the controller page)
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30Min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.002%F.S/10℃
Temperature Effect on Output	±0.002%F.S/10℃
Operating Temperature	-20℃~+60℃
Input Resistance	380±4Ω
Output Resistance	350±1Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%FS
Bridge voltage (excitation voltage)	DC 5-15V
Material	Alloy steel
Protection Class	IP67
Cable Length	2m (＜5ton), 5m (≥5ton)
Wiring	EXC+: Green, EXN+: Yellow, SIG+: White, EXC-: Black, EXN-: Blue, SIG-: Red. Shielded wire: Yellow.

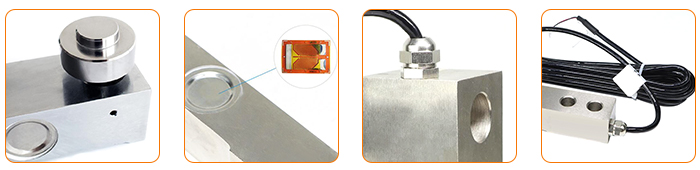

Feature

High Precision & Sensitivity: Offers high detection precision and excellent sensitivity, ensuring reliable force measurements.
Durable Construction: Made from 42CrMo alloy steel, known for its high strength and wear resistance, ensuring long-term durability.
Stable Performance: Designed for long-term stability with strong resistance to bias load, suitable for accurate weighing and measurement.
Waterproof & Reliable Signal: Features a 6-point waterproof connector, preventing wire pull-out and ensuring stable signal transmission.
Wide Application: Ideal for platform scales, hopper scales, tank scales, and various other industrial weighing systems with high stability and precision.

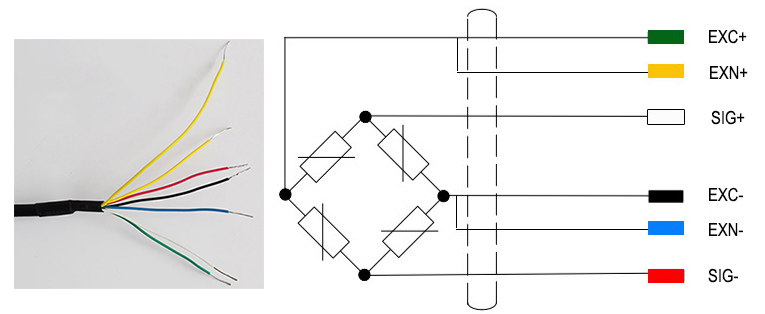

Wiring Diagram

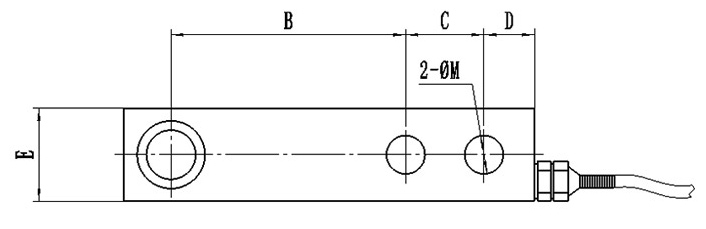

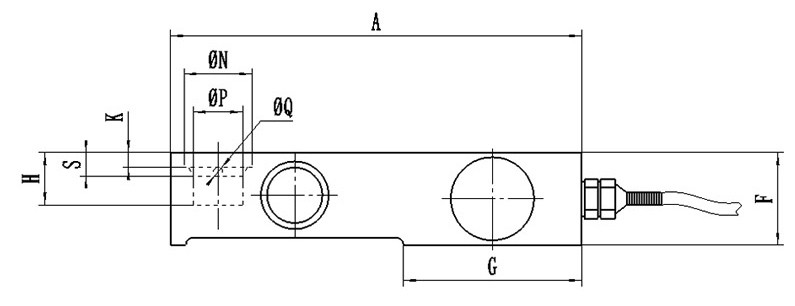

Dimensional Drawing

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H
500kg/1 ton	133.4	76.2	25.4	16.4	30.7	30	57.9	17
2 ton	136.7	76.2	25.4	16.7	36.8	36.6	57.9	23
3 ton	139.7	79.2	25.4	16.7	39	36.6	57.9	23
5 ton	171.5	95.2	38.1	16.7	42.9	43	73.8	29.4

Capacity	Dimension (mm)
Capacity	K	M	N	P	Q	S
500kg/1 ton	4.8	12.7	22	15.9	3.1	7.7
2 ton	9.5	12.7	22	15.9	3.1	11.7
3 ton	9.5	15	22	15.9	3.1	11.7
5 ton	11	19	34.9	22.2	3.1	11.7

Application

Tips: How do I know if my Cantilever Beam Load Cell is working properly?

To check if your load cell is functioning correctly:

Verify output signal: Ensure the output signal is within the expected range for the applied load.
Perform calibration: Test the accuracy using known reference weights or forces.
Check for physical damage: Inspect for cracks, corrosion, or other signs of wear.
Monitor performance over time: Track consistency and make adjustments if readings become erratic.
