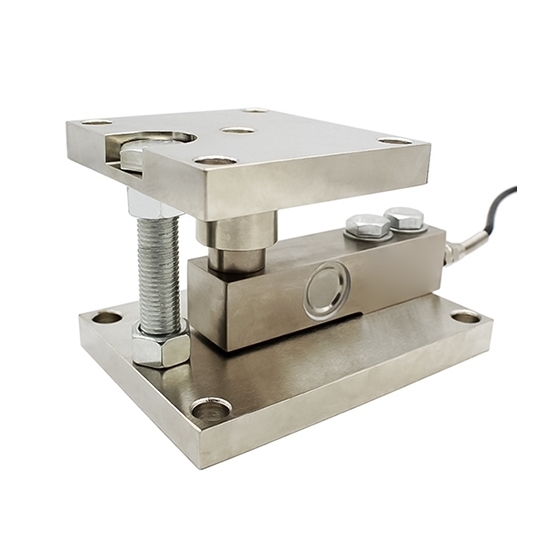

Cantilever Type Load Cell Module, 30kg/100kg/200kg/300kg to 10 ton

Write a review

$308.15

The cantilever load cell module is a precision weighing module designed for industrial tank weighing, hopper weighing, and platform scale applications. Offering 30kg to 10 ton capacity, 0.03% accuracy, and corrosion-resistant alloy steel construction, it delivers consistent weighing performance in demanding environments. Buy this cantilever load cell module for precise, reliable industrial load measurement.

Capacity *

SKU: ATO-LCM-CT

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Featuring OIML R60-certified performance, laser-welded sealing, excellent resistance to hysteresis and creep, and 150% safe overload capacity, this load cell module ensures accurate and stable operation over extended service life. The modular design enables quick installation and simplified maintenance, making it the preferred solution for process weighing, batching systems, and industrial automation.

Specification

Model		ATO-DYMK-001
Rated capacity (Emax)		0.06/ 0.1/ 0.2/ 0.3/ 0.5/ 1/ 2/ 3/ 5/ 8/ 10/ 15 T
Accuracy class1) 2)		0.03%	C3
Min. dead load		0 kg
Rated output		2.0 ± 0.002 mV/V
Zero balance		±1 % of Emax
Y-value		6000	10000
Repeatability error		< ±0.015% of AL3)	< ±0.010% of AL3)
Creep; 30 minute		< ±0.030% of AL	< ±0.017% of AL
Min. dead load output return (DR); 30 min		< ±0.030% of AL	< ±0.017% of AL
Temp. effect on	Min. dead load output	< ±0.0023% of Emax/℃	< ±0.0014% of Emax/℃
	Rated output2)	< ±0.0020% of AL/℃	< ±0.0012% of AL/℃
Temperature range	Compensated	-10 to +40 [+14 to +104]℃(°F)
	Operating	-40 to +65 [-40 to +149]℃(°F)
	Safe storage	-40 to +80 [-40 to +176]℃(°F)
Excitation voltage	Recommended	5 ~ 15V AC/DC
	Maximum	15V AC/DC
Terminal resistance	Excitation	384 ± 5Ω
	Output	350 ± 3Ω
Insulation resistance @50VDC		> 5000MΩ
Breakdown voltage		> 500V AC
Seal type / IP rating		Silicone seals	Laser welding
Load limit	Safe	150% of Emax
	Ultimate	300% of Emax
Material	Spring element	Stainless steel
	Strain gauge	PEEK
	Cable	Φ6.5; 4-wire; PVC
Cable length		0.05-0.3t	0.5-2t	3-15t
		2.0m	2.0m	5.0m
Fatigue life		> 1,000,000 cycles @Emax
Deflection at Emax; approx		< 0.5mm
Barometric pressure effect on Zero Output		< 1.0Vmin/kPa
Mounting bolts	Size/Grade	M12 / 8.8	M14 / 8.8	M18 / 10.9
	Recommended Torque	98N.m	120N.m	275N.m
Notes		1) Error due to the combined effect of non-linearity and hysteresis
		2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
		3) AL= Applied Load

Features

High-Precision: This cantilever load cell module delivers 0.03% accuracy with outstanding repeatability, low non-linearity, low hysteresis, and minimal creep, providing precise and stable measurements for demanding industrial load cell and weighing module applications.
Wide Capacity Range of Options Available: Available in capacities from 30kg to 10 tons, this load cell module is suitable for everything from compact weighing equipment to heavy-duty tank and hopper systems, making it an ideal weigh module for a wide range of industrial weighing applications.
OIML R60 Certified Measurement Performance: Designed in compliance with OIML R60 international metrology standards, this load cell module provides reliable weighing accuracy and consistent performance for industrial weighing modules, batching systems, and process control applications.
Rugged Construction: Manufactured with a high-strength alloy steel load cell body, this cantilever load cell module offers excellent corrosion resistance, mechanical durability, and long-term reliability in demanding industrial environments. Stainless steel options are also available.
Excellent Stability with High Overload Protection: The load cell module features outstanding long-term stability, supports 150% safe overload and 300% ultimate overload, and withstands more than 1 million load cycles, ensuring dependable operation in continuous industrial weighing module applications.
Anti-Tipping Design: Featuring a unique support-bolt structure, this load cell weighing module provides secure installation on tanks, silos, and hoppers while helping prevent equipment tipping. Its modular design also simplifies installation and maintenance, reducing downtime.

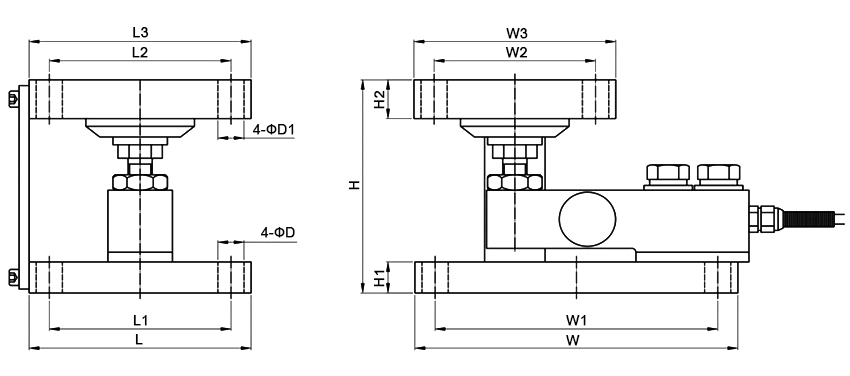

Dimension (unit: mm)

Cantilever type load cell module dimension

Rated Cap(t)	L(mm)	L1(mm)	L2(mm)	L3(mm)	W(mm)	W1(mm)	W2(mm)	W3(mm)	H(mm)	H1(mm)	H2(mm)	D(mm)	D1(mm)
0.1t-2t	110	90	90	110	160	140	80	110	110	16	20	13	13
3-5t	110	80	80	110	228	200	122	150	131	24.5	26.5	13	13
10-15t	140	100	100	140	290	250	140	180	157.5	30	30	22	22

Wiring

Cantilever type load cell module wiring

Tips: How to calibrate a load cell module after installation?

After installing the load cell module, ensure it is securely mounted and the load is evenly distributed. Perform a zero calibration with no load applied, then use certified test weights to complete the span calibration according to the weighing indicator or controller. Finally, verify accuracy by loading and unloading the test weights several times to confirm stable, repeatable measurements.
