Diaphragm Seal Pressure Gauge, 0-6MPa

Purchase diaphragm seal pressure gauge at ATO Automation Shop. It is a stainless steel pressure meter that is high-temperature resistant and corrosion-resistant, suitable for pressure measurement in various scenarios such as medical treatment, petrochemical industry, pipeline valves, etc. High precision pressure gauge with diaphragm seal has a class 2.5 accuracy, with clear dial scales, and displays both bar and MPa units, making the readings accurate and intuitive. It adopts a chuck connection method, which is easy to install. Industrial diaphragm pressure gauge is filled with glycerin, which can effectively buffer vibrations. Cutting off the top oil plug can further improve accuracy, making it a reliable choice for pressure monitoring.

Specification

Features

• Excellent material: Made of stainless steel, it is resistant to high temperatures and corrosion, and is suitable for various complex working conditions.
• Reliable accuracy: Accurate diaphragm pressure gauge has an accuracy class of 2.5 and supports simultaneous display of bar and MPa units.
• Easy installation: The chuck connection design ensures stable installation and easy maintenance. The chuck size of Φ50mm meets industry standards.
• Excellent performance: Professional diaphragm seal pressure gauge's shock-resistant model is filled with glycerin, which can buffer vibrations; for high-precision measurement, cutting off the top oil plug can further improve measurement accuracy.
• Wide application: Suitable for medical, petrochemical, pipeline valve and other fields, supporting pressure measurement of water/liquid/oil/air pressure, etc.
• Measurement range options: ATO diaphragm pressure gauge has optional ranges of 0.1/0.16/0.25/0.6/1/1.6/4/6MPa, meeting your needs.

Dimension

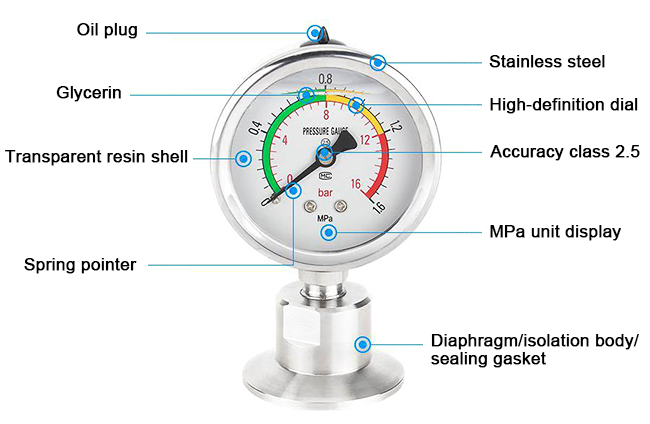

Details

Application

Tips: How to Choose Diaphragm Pressure Gauge?

When selecting a diaphragm pressure gauge, focus on the characteristics of the medium, the range and accuracy of the pressure gauge, the connection method, the material, and confirm whether your usage scenario requires shock resistance.

• Medium characteristics: If the medium is corrosive, highly viscous, or contains particles, choose a corrosion-resistant diaphragm material (such as 316 stainless steel).
• Range: Ensure that the working pressure is within 1/3 to 2/3 of the pressure gauge's range to avoid overload or inaccurate measurement.
• Accuracy class: Generally, choose class 2.5 for industrial scenarios, and class 1.6 or higher for precise pressure monitoring.
• Connection method: Chuck connection is suitable for sanitary/quick-installation scenarios, and threaded connection is suitable for conventional pipelines; choose according to the installation environment.
• Material: Stainless steel pressure gauges are corrosion-resistant and high-temperature resistant, suitable for complex working conditions; ordinary materials are only applicable to clean and non-corrosive environments.
• Additional function requirements: Choose the oil-filled type if shock resistance is needed, choose the one with a transmitter function if remote transmission is required, and choose the explosion-proof type if explosion protection is needed.
