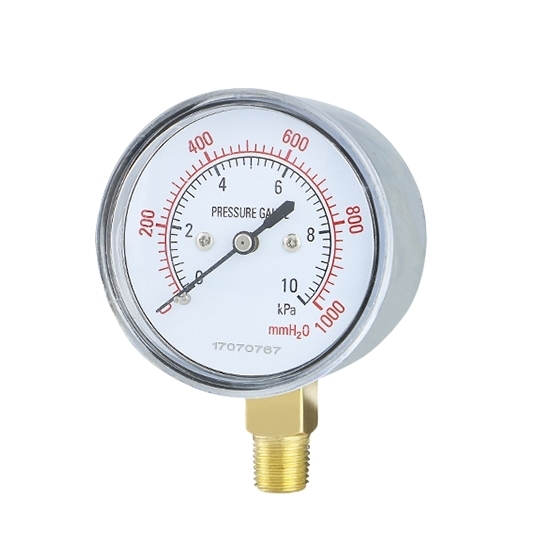

Diaphragm Type Capsule Pressure Gauge, 0-10kPa

ATO low pressure capsule gauge is a precision instrument specially designed for micro-pressure measurement. It has an accuracy of class 2.5 and a nominal diameter of 60mm. It adopts a stainless iron shell, featuring high temperature resistance and corrosion resistance. Its measurement range is 0-10kPa. Capsule pressure gauge uses thread connection, is suitable for environments of -25~55℃, and is widely used in micro-pressure monitoring scenarios.

Specification

Features

• Precise measurement: High accuracy capsule pressure gauge is up to class 2.5, and the measuring range is ≤10kPa, meeting the needs of micro-pressure measurement in multiple scenarios.
• Durable material and strong adaptability: The shell is made of stainless iron, which is high-temperature resistant and corrosion resistant. Industrail pressure gauge applicable to ambient temperatures of -25~55℃, with a long service life and adaptability to complex working conditions.
• Convenient installation and clear reading: Diaphragm capsule pressure gauge adopts M14*1.5 standard thread connection, with a plastic glass mask for protection. The diaphragm-type sensing structure intuitively displays pressure, making installation and maintenance simple.
• Wide range of application: Suitable for multiple industries such as mining, smelting, medical treatment, and food, meeting your needs.

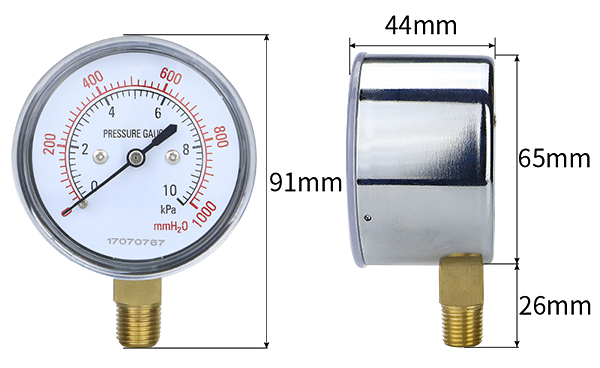

Dimension (Unit: mm)

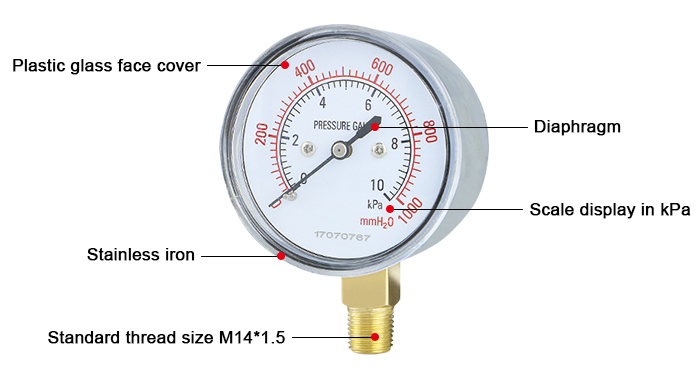

Details

Application

5 Tips for Use Capsule Pressure Gauge

1. Please check before use whether there is a qualification mark and whether it has exceeded the validity period. If it is expired, it needs to be re-inspected before use.

2. Install low pressure capsule gauge vertically.

3. When the pressure meter measures a stable load, the reasonable use range does not exceed 3/4 of the upper measurement limit. When measuring fluctuating pressure, it does not exceed 2/3 of the upper measurement limit. As for the minimum pressure, in both cases, it should not be lower than 1/3 of the upper measurement limit.

4. When measuring media that may crystallize and media with high viscosity, an isolation device should be added.

5. Before use, diaphragm type pressure gauge should carefully verify the degree of corrosion of the stainless steel/iron spring tube caused by the measured medium to avoid early corrosion and rupture of the spring tube.
