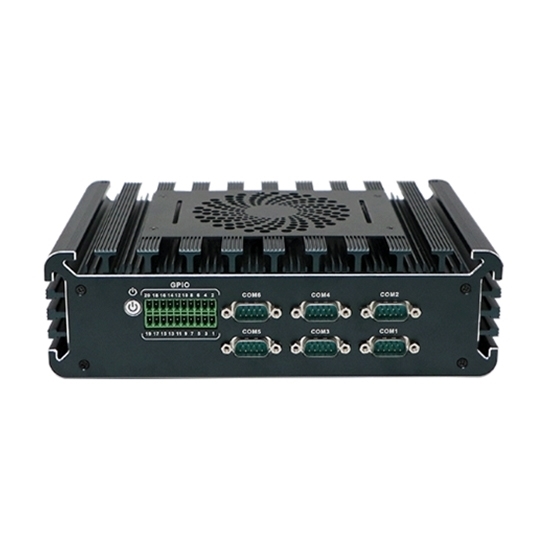

Embedded Industrial Edge Computer, Intel i5, 3 LAN, 6 COM

4.5 out of 5 based on 2 reviews | Write a review

$921.38

Embedded industrial edge computer can be matched with CPU Intel Core i5 1135G7, usable system Linux/Windows 10/Windows 11, DDR4 3200MHz SODIMM ram slot, max 32GB, I/O interface supports 1*16 pins GPIO Phoenix terminal, 3*Intel i226-V 2.5G LAN, 6*COM (COM1, 2 RS232/RS485), input voltage DC 12V. Industrial computer has fanless design, embedded mounting, competitive price.

RAM/ Hard Disk Capacity *
Usable System *
Usable System *
Usable System *
Additional Options *

SKU: ATO-IPC-3126

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy a industrial computer online from a reliable manufacturer. Powered by an Intel Core i5-1135G7 processor (4 core, 8 threads, 2.4 GHz), supporting Linux, Windows 10, and Windows 11. An embedded industrial-grade computer suitable for industrial automation, medical equipment, logistics and transportation, warehousing, electronic education, machinery control, and other applications.

Specification

Model	ATO-IBOX-3126
Color	Dark gray (color can be customized)
Material	High quality all aluminium alloy
Processor	Intel Core i5 1135G7 (4 core 8 threads, 2.4GHz)
RAM	1*DDR4 3200MHz SODIMM ram slot, Max.32GB
BIOS	AMI UEFI BIOS
Display Chip	Intel HD Graphics /Intel Iris(R)Xe Graphics
Display Port	1HDMI FHD Display port, 1DP
Front I/O	1Power button, 116 pins GPIO Phoenix terminal, 6*COM (COM1,2 RS232/RS485)
Rear I/O	12Pin Phoenix terminal, 1HDMI, 1DP, 4USB3.0, 2*USB2.0
Rear I/O	3Intel i226-V 2.5G LAN, 1audio&Mic
Expansion Slot	1*M.2 M-Key 2280 slot (support NVME)
	1*MINI PCIE slot (support WiFi/Bluetooth)
	1*M.2 B-key slot 3042/3052 (support 4G), with SIM card slot
	Can be expand (The standard is without it): 2*USB2.0
Network	3*Intel i226-V 2.5G LAN
Storage	1M.2 slot(support NVME), 12.5 inch HDD/SSD
Input Voltage	DC 12V
Other Function	Auto power on,Timing boot, Wake on LAN/ PXE/ Watchdog(level 0-255), TPM2.0 security encryption
Work Temp	0℃~+50℃(business HDD), -20℃~+60℃(industrial SSD), Air flow surface
Work Humidity	5%~95% Non-condensing state
Dimension	23015268 mm
Weight	2.4kg (No include wall mount)

Feature

Intel Core i5 Processor: Embedded industrial edge computer is powered by Intel Core i5-1135G7 with 4 cores and 8 threads for reliable industrial performance.
Fanless Aluminum Design: All-aluminum fanless enclosure for silent operation and efficient heat dissipation.
Triple 2.5G LAN: Industrial PC with 3× Intel i226-V 2.5G Ethernet ports for high-speed and reliable network communication.
Rich Industrial I/O: 6 COM ports, 16-channel GPIO, USB, HDMI, and DP interfaces for versatile integration.
Flexible Expansion: Industrial computer supports NVMe SSD, WiFi/Bluetooth, and optional 4G communication modules.

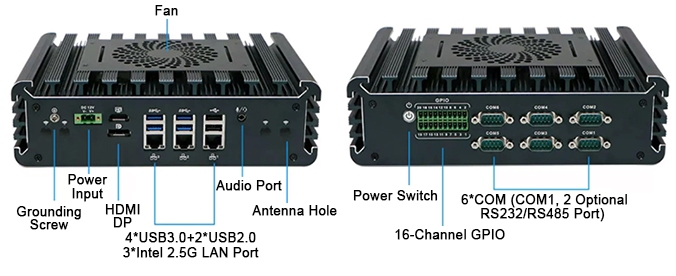

Detail

Embedded industrial PC core i5 detail

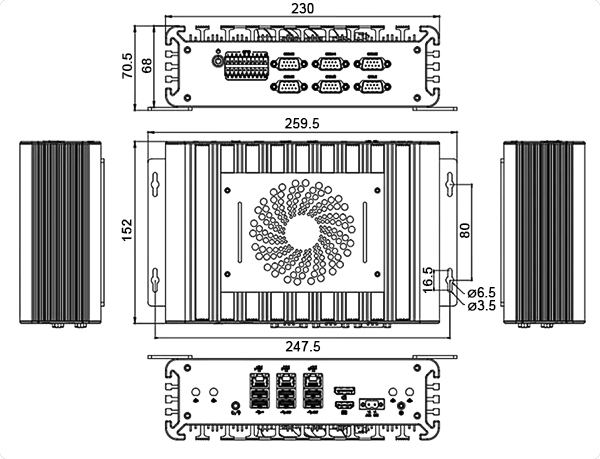

Size (unit: mm)

Embedded industrial PC core i5 size

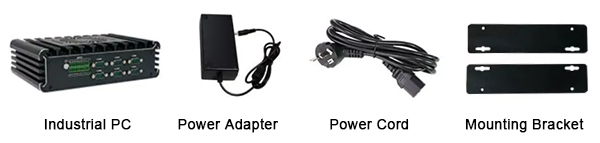

Package Includes

Embedded industrial PC core i5 package

Tips: How to install fanless industrial PC quickly?

Prepare the fanless industrial PC case first, and then install the fanless industrial PC power supply. Pay attention to the installation position when installing the industrial PC power supply, and the fan should face the motherboard.
Install the motherboard. Fix the motherboard to fanless industrial PC case according to the small holes on motherboard.
Install the CPU. Remove the CPU pressure bar, place the CPU on the clamping seat, and then fix the pressure bar.
Install the fan on motherboard. Fix the fan with screws. Because the fan disperses the heat to motherboard, the fanless industrial PC will vibrate when it is working. If the installation is not reliable, it is easy to fail. When finished, connect the fan to power port on the motherboard.
Install the memory stick. Open the buckle where the memory stick is installed and put the memory stick in.
Install the hard disk. Connect the hard disk required by fanless industrial PC to the SATA interface.
