Mini Fanless Industrial PC, Celeron J1900, Linux/Win 7

Write a review

$505.54

Fanless industrial PC with ideal price. CPU onboard Intel Celeron J1900 quad core, 1.99GHz，TDP: 10W, system Linux/Windows 7/Windows 10, supports DDR3L 1333/1600MHz SODIMM RAM slot, max turbo 8GB, I/O interface 6*COM, 2*1000M LAN, input voltage DC 12V. Industrial computer has mini size, embedded mounting.

SKU: ATO-IPC-J1900LW

RAM/ Hard Disk Capacity *
Usable System *
Usable System *
Usable System *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

Buy embedded mini fanless industrial PC at good price. Onboard Intel Celeron J1900 CPU (quad core, 1.99GHz，TDP: 10W), usable system Linux/Windows 7/Windows 10, interface COM*6, 1000M LAN*2. Industrial grade computer has wide applications of industrial automation, medical, logistics transportation, warehouse, electronic education, machine and so on.

Specification

Model	ATO-IBOX-101 Plus
CPU	Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W)
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR3L 1333/1600MHz SODIMM RAM Slot, Max turbo 8GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel HD Graphics
Display Port	1HDMI, 1Built-in LVDS (Support synchronous and asynchronous dual display)
Front I/O Interface	4*USB 2.0
	2*COM
	1*Power Switch
Rear I/O Interface	1*USB 3.0
	1*USB 2.0
	4*COM (COM1 and COM2 have RS232/485 Optional)
	1*3PIN Phoenix connector
	21000M LAN, 1HDMI
	1*DC 12V Input
	1*Mic
	1*Line Out
Expansion Port	1MINI PCIE Slot (WIFI/3G/4G Optional, please contact us for configuration), Embedded SIM Slot 1MINI PCIE Slot (Support MSATA)
Network	2*Intel i211-AT 1000M LAN
Storage	1MSATA Slot, 12.5" HDD
Input Voltage	DC 12V
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these functions)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Silver (Color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	186 * 150 * 66mm (Not include the brackets)
Net Weight	1.6 kg (Not include the brackets)

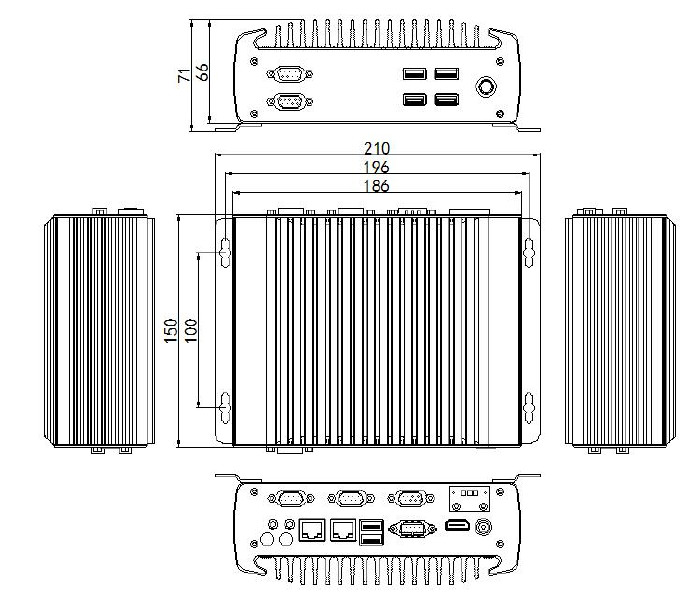

Mini Fanless Industrial PC Dimensions Diagram (Unit: mm)

Dimensions of Mini Fanless Industrial PC, Celeron J1900, Linux/Win 7

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
Bracket	2	Standard
CD Driver	1	Neutral
HDMI to VGA Cable	1	HDMI to VGA Cable

Tips: Software installation for mini fanless industrial PC.

Check the connection and appearance of the hardware device

Check if other devices connected to the mini fanless industrial PC are operating normally.
Check whether the connecting wires between the devices are connected incorrectly or missing. Check whether the connecting pins of plug and the base are deformed, missing, or short-circuited.
Carefully check the error report information to determine the components that may cause failure.
Observe whether the hardware equipment has a peculiar smell, and check the temperature of components.
Check whether CPU fan speed of the mini fanless industrial PC is too slow or unstable.
Pay attention to whether the driver of mini fanless industrial PC has abnormal noise when working.

Other checks

According to the user manual, confirm whether the hardware and software configuration of mini fanless industrial PC meets the requirements for use.
Observe whether the installation medium is intact.
