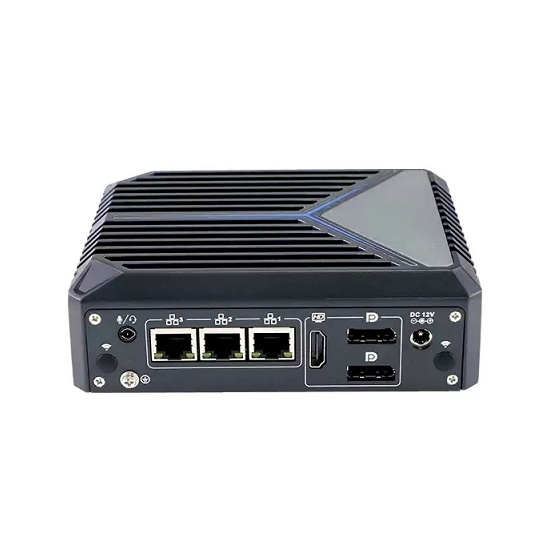

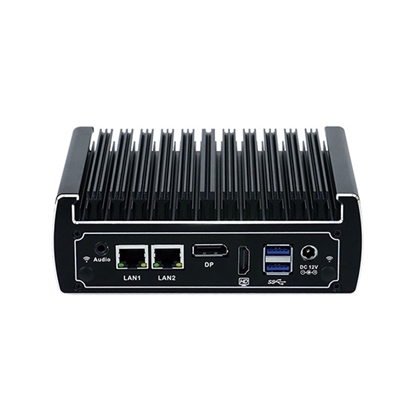

Mini Fanless Industrial PC, Intel J6412, DDR4, Linux/Windows

4.5 out of 5 based on 2 reviews | Write a review

$569.08

Mini Fanless Industrial PC is powered by Intel J6412 quad-core CPU with a compact, space-saving design. Full aluminum alloy fanless cooling ensures dustproof, silent operation, and stable performance in harsh environments. Ideal for industrial automation, warehousing, and education. Shop now and get your hands on this highly reliable industrial-grade mini industrial PC.

RAM/ Hard Disk Capacity *
Usable System *
Usable System *
Usable System *
Usable System *
Network Module *

SKU: ATO-IPC-J3160LW

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

ATO Mini Industrial PC offers multiple interfaces, triple 4K display, and optional WiFi/4G/5G connectivity. Supports TPM 2.0 security and multiple power-on functions. Compact and easy to install, suitable for industrial and commercial applications requiring flexible and stable computing performance. Get this versatile industrial PC to effortlessly meet your needs.

Specification

Model	ATO-NanoN1121
Chassis Color	Metallic Gray (custom color available)
Chassis Material	Premium all-aluminum alloy with hard anodized surface
Processor	Onboard Intel Celeron J6412 (4 cores/4 threads, base frequency 2.0 GHz, max burst frequency 2.6 GHz)
Architecture	Elkhart Lake
Memory	1 × DDR4 3200MHz SODIMM slot, up to 32 GB
BIOS	AMI UEFI BIOS
Display Chip	Intel UHD Graphics
Display Interfaces	1 × HDMI, 2 × DP ports (supports synchronous/asynchronous triple display, max resolution up to 4096×2160 @ 60Hz)
Front Panel I/O Ports	1 × power switch, 3 × USB3.1, 3 × USB2.0, 1 × COM port, 1 × SIM card slot
Rear Panel I/O Ports	1 × DC input, 2 × DP ports, 1 × HDMI port, 3 × Ethernet ports, 1 × combo audio jack
Expansion Slots	1 × M.2 2280 M-key slot (SATA protocol supported)
	1 × M.2 3052 B-key slot (USB3.0 signal, 4G/5G support) with external SIM card slot
	1 × M.2 2230 E-key slot (Wi-Fi/Bluetooth support)
Network Interfaces	3 × Intel i225-V 2.5G Ethernet
Storage Interfaces	1 × M.2 2280 slot, 1 × onboard 2.5" drive bay
Input Voltage	DC 12V input
Additional Features	Power-on on power restore, timed power-on, Wake-on-LAN, PXE boot, watchdog timer (0~255 levels), TPM 2.0 security encryption
Operating Temperature	0℃ ~ +40℃ (with commercial HDD); -20℃ ~ +60℃ (with industrial SSD), with surface airflow
Operating Humidity	0% ~ 95% non-condensing
Dimensions	150 × 126.5 × 45 mm
Weight	0.84 kg

Features

Powerful Industrial Processing Performance: ATO mini fanless industrial PC is powered by Intel Celeron J6412 quad-core processor with DDR4 high-speed memory, supporting up to 32GB RAM for fast and stable industrial-grade processing performance.
Rich Interfaces & Flexible Expansion: This Industrial PC provides 3× USB 3.0, 3× USB 2.0, 1× M.2 slot, and 1× 2.5" drive bay, enabling easy connection of peripherals and large-capacity storage expansion.
Triple 4K Multi-Display Output: The compact industrial PC supports HDMI + 2× DP ports with up to 4K resolution, allowing synchronous or asynchronous triple-screen display for efficient multi-tasking and control systems.
Stable Network & Wireless Connectivity: Built as a reliable mini industrial PC, it supports WiFi, optional 4G/5G modules, and 3× Intel 2.5G LAN ports, ensuring high-speed and stable network communication in industrial environments.
Fanless Aluminum Alloy Design: The Fanless Industrial PC adopts a full aluminum alloy chassis with fanless cooling design, delivering silent operation, dust resistance, and improved hardware lifespan.
Compact Size with Easy Installation: Weighing only 0.84kg, this Mini Industrial PC is compact and space-saving, supporting wall or desktop installation for flexible deployment in various industrial setups.
Wide Compatibility and Applications: Compatible with Linux, Windows 10/11, this Industrial PC is widely used in automation, warehousing, digital signage, and education systems.

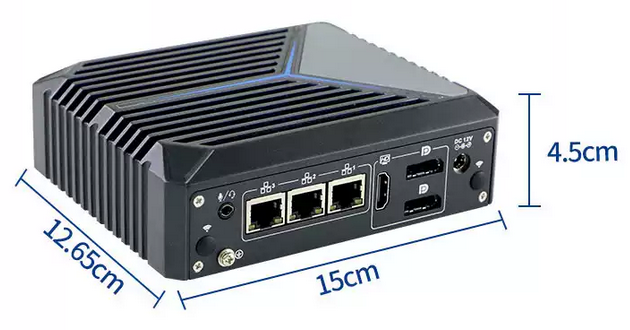

Dimension

Mini fanless industrial pc celeron j3160 dimension

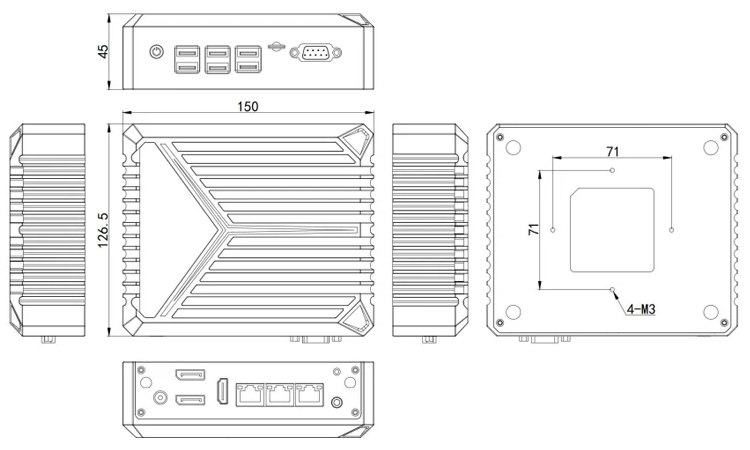

Five-View Drawing

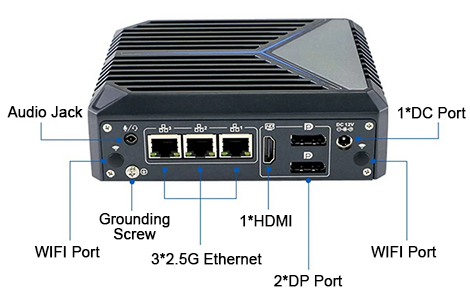

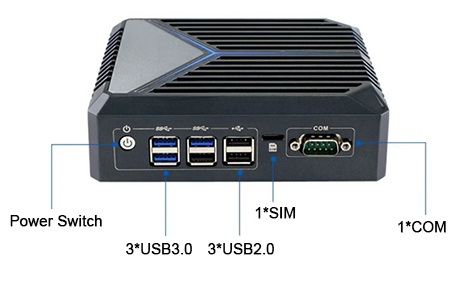

Interface Diagram

Mini fanless industrial pc celeron j3160 interface

Mini fanless industrial pc celeron j3160 interface_2

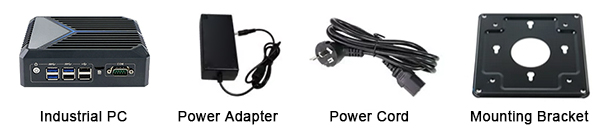

Package Include

Mini fanless industrial pc celeron j3160 package

Tips: What is the difference between fan-cooled and fanless industrial PCs?

Fan-cooled industrial PCs use internal fans for active heat dissipation, providing stronger cooling performance and making them suitable for high-load or high-performance computing applications. However, long-term operation may lead to issues such as fan wear, dust accumulation, noise, and higher maintenance requirements. In contrast, fanless industrial PCs rely on an aluminum alloy chassis for passive cooling without any moving parts, resulting in quieter operation, higher system stability, and virtually maintenance-free performance. They also offer better resistance to dust and harsh environments, making them ideal for industrial automation, outdoor equipment, and long-term continuous operation, although their performance scalability is relatively more limited compared to fan-cooled systems.

Existing reviews of Mini Fanless Industrial PC, Intel J6412, DDR4, Linux/Windows

Compact, fanless, and stable

Performance is smooth, heat control is excellent, and the fanless design stays silent. Connectivity is abundant, system runs stable, and daily use feels efficient and reliable.

From: Marquis | Date: 11/12/2025

Was this review helpful? Yes No (0/0)

Quiet PC

I like its passive cooling. This is, as advertised, a fanless computer. In fact, the factory configuration has no moving parts at all, so it's dead silent - literally no sound from it at all. This makes it ideal for use as a media center PC. The fact that it draws no air through it with a fan also makes it a great computer to put in industrial settings where dust can cause real problems for computers. Other tiny PCs I have makes this boast, but being in a smooth plastic case, they tends to overheat and shut down in self preservation, which is really annoying.

From: Cary | Date: 18/04/2022

Was this review helpful? Yes No (0/0)
