    3D Gyroscope Sensor, 9 Axis, Acceleration/ Angular Velocity/ Angle

    $653.88
    High-performance 9-axis 3D gyroscope sensor with three measurement functions of acceleration, angular velocity and angle, supporting X/Y/Z axis data, with a wide range of measurement (angle ±180°, acceleration ±2~16g, angular velocity ±50~2000°/s) is optional.
    *
    *
    *
    SKU: ATO-GS-9-AXIS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-precision industrial grade gyro sensor provides ultra-high resolution with bandwidth (>1000Hz) and short start-up time of only 0.5 seconds.Support multi-frequency automatic output, using RS232/RS485/RS422/TTL signal output methods, adapt to a wide range of industrial applications. Wide operating voltage, low power consumption, long life.

    Specification

    Model ATO-ML7600-3-D
    Measuring Axial X/Y/Z axis
    Measuring Range   Angle: ±180°
    Acceleration: ±2/4/8/16g
    Angular velocity: ±50/150/300/450/1200/2000°/s
    Acquisition Band Width >1000Hz
    Resolution   Angle: ±0.01°/S
    Acceleration: ±0.001g
    Angular velocity: ±0.005°/s
    Temperature Compensation Full temperature range,-45℃~85℃
    Power-on Startup Time 0.5s
    Auto Output Rate 5Hz output, 15Hz, 35Hz, 50Hz can be set (RS485 without this function)
    Output Signal RS232/RS485/RS422/TTL
    Average Trouble-Free Operating Time ≥45000 hours/time
    Negative Tenderness 20000g, 2ms, 1/2sine
    Vibration Resistant 10grms, 10~1000HZ
    Waterproof Rating IP67
    Cable Standard 1.5 meters length, wear-resistant, oil-resistant, wide temperature, shielded cable 5*0.2mm2
    Connector 6-pin aviation plug
    Tolerance Load 1000
    Operating Voltage 9~36V
    Operating Current 40mA
    Operating Temperature -40℃~85℃
    Storage Temperature -55℃~125℃
    Connector Lead wire (1.5m) or waterproof aviation socket
    Housing Material Aluminum alloy sandblasted oxidation
    Mounting Four M4 screws
    Dimensions 60*59*29mm
    Net Weight 180g

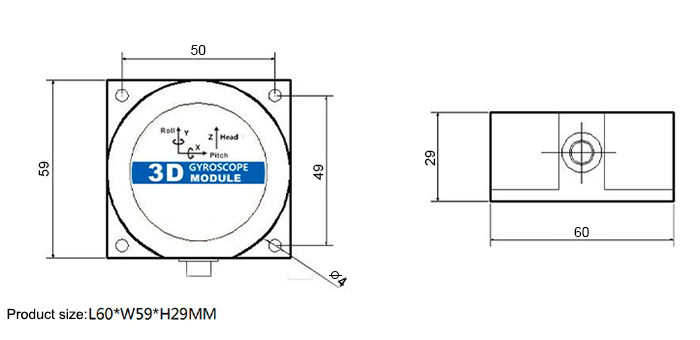

    Dimensional Drawing (unit: mm)

    9 axis gyroscope sensor size

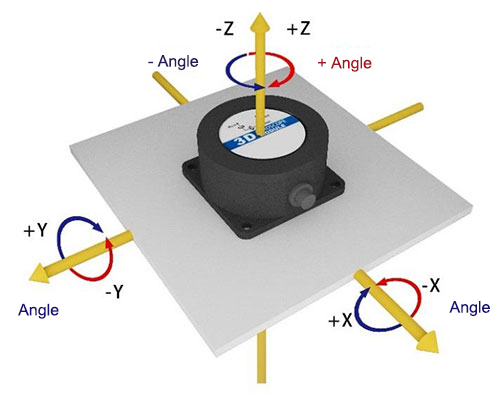

    Axis Direction



    9 axis gyroscope sensor axis direction

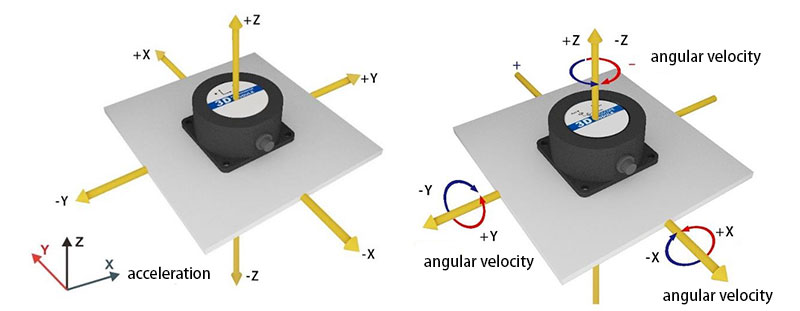

    9 axis gyroscope sensor other directions

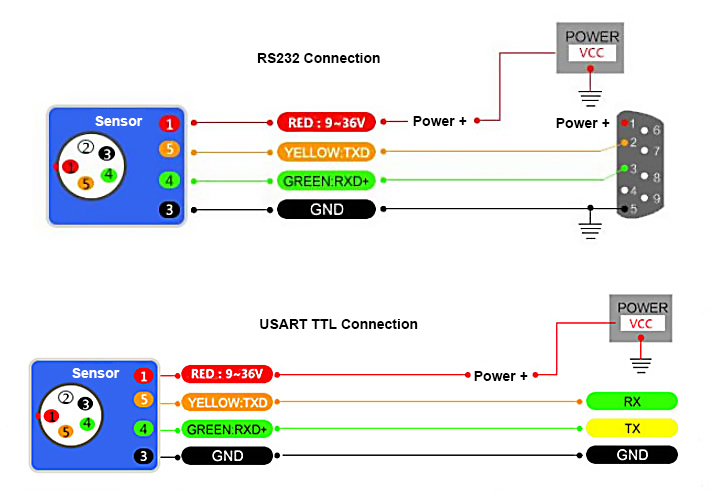

    Wiring Drawing

    9 axis gyroscope sensor wiring drawing

    Applications

    9 axis gyroscope sensor applications

    Tips: How do I process 9-axis sensor data to improve accuracy?

    The following steps are typically required to optimize data accuracy:

    1. Calibration: Calibrate sensors for acceleration, angular velocity, and magnetic field after initial use and long-term operation.
    2. Sensor Fusion: Integration of multi-axis data using filtering algorithms such as Kalman filtering or complementary filtering to reduce noise and drift.
    3. Temperature Compensation: Prevents changes in ambient temperature from affecting measurement data.

    The above methods can significantly improve the reliability and stability of sensors in complex application scenarios.
