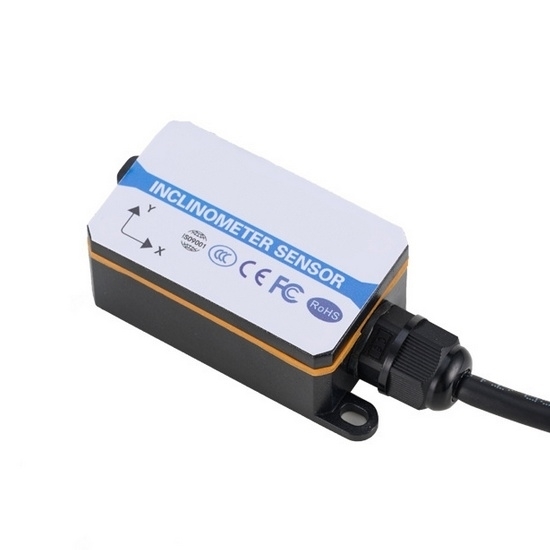

    Digital Inclinometer Sensor for Solar/Car, Single/Dual axis

    5 out of 5 based on 1 reviews | Write a review
    $102.06
    Dual-Axis Digital Inclinometer Sensor with 0.1° resolution and 0.2°-0.3° accuracy. Perfect for solar tracking, machinery, and vehicle overload detection. IP67 rated, works from -40°C to +85°C. 3-year warranty.
    *
    SKU: ATO-IMS-MK326T
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-performance digital inclinometer sensor provides precise angle measurement for solar tracking, automotive, construction machinery, and more. Built with MEMS technology, it offers fast response times and robust protection for both dynamic and static applications in harsh environments.

    Specification

    Model ATO-MK326T
    Measured Axes X, Y axes X axis
    Measurement Range ±90° ±180°
    Accuracy 0.2° 0.3°
    Long-Term Stability 0.22Hz 0.35Hz
    Operating Temperature -40°C to +85°C
    Power Supply Voltage DC 5V (optional DC 9~36V)
    Sensitivity Temperature Coefficient ≤200
    Frequency Response 100
    Power-On Start-Up Time 0.2s
    Response Time 0.01s
    Customizable Output Frequency 5Hz output, 15Hz, 35Hz, 50Hz configurable
    Output Signal RS232, TTL (USART), RS485, RS422 available upon request
    Average working hours ≥35,000 hours/cycle
    Shock Resistance 2450g, 0.5ms, 3 times/axis
    Vibration Resistance 10grms, 10~1000Hz
    Insulation Resistance ≥100MΩ
    Waterproof Rating IP67 (IP68 available upon request)
    Cable Standard 1.5m length, abrasion-resistant, oil-resistant, wide-temperature, shielded cable 4*0.2mm²
    Weight 30g (Excluding packaging)
    Dimension L50*W30*H17mm


    Features

    1. High Precision: 0.1° resolution and 0.2°–0.3° accuracy for reliable angle measurement in various applications.
    2. Fast Response Digital Sensor: 0.01s response time and 0.2s startup ideal for dynamic angle sensing in solar tracking and vehicle overload detection.
    3. Durable Industrial Sensor: IP67-rated inclinometer with a wide temperature range from -40°C to +85°C, built for harsh industrial environments.
    4. Optional Measurement Range: Dual-axis and single-axis options to fit specific industrial applications like machinery, construction, and solar panels.

    Dimension (Unit: mm)

    Inclinometer sensor dimension

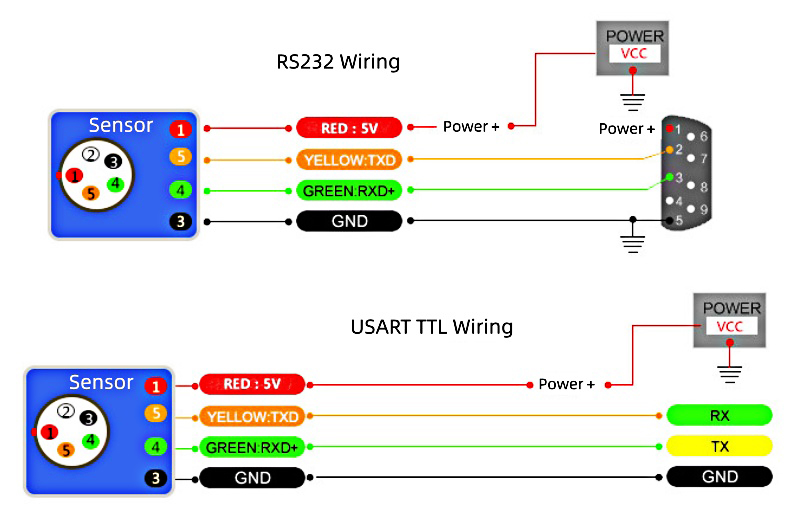

    Wiring Diagram

    Inclinomete sensor wiring diagram

    Line Color Red White Black Green Yellow
    Output Interface 1 2 3 4 5
    RS232 VCC NC GND RXD TXD
    RS485 VCC NC GND (B、D-) (A、D+)
    TTL VCC NC GND RXD TXD



    Line Color Red Black Green Yellow White Brown
    Output Interface 1 2 3 4 5 6
    RS422 VCC GND RXD-(B-) RXD+(A+) TXD+(A+) TXD-(B-)



    Tips: How does a digital inclinometer sensor improve solar tracking accuracy?

    A digital inclinometer sensor improves solar tracking accuracy by precisely measuring the tilt and orientation angles of solar panels in real time. Using advanced MEMS sensing technology, it detects even the slightest angular changes with 0.1° resolution and 0.2°–0.3° accuracy, ensuring panels maintain the optimal position relative to sunlight throughout the day. Its fast response time and IP67-rated protection allow stable performance under harsh outdoor conditions, reducing energy loss and improving overall solar system efficiency.
