Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet

5 out of 5 based on 9 reviews | Write a review
$66.67
Multi-channel load cell junction box has 2/3/4/6/8/10 inlets and 1 outlet, aluminum alloy casing, good anti-interference, special for waterproof sealing joint, waterproof and dustproof rubber gasket for cover, easy to assemble and debug. Each channel can be adjusted balance to prevent damage to the sensor caused by inductive lightning and surge signals.
*
SKU: ATO-LCBOX-10I
30-day Returns
Free Shipping
Delivery date: 6-12 days

Load cell junction box has 2/3/4/6/8/10 inlets and 1 outlet, special for electronic truck scale, hopper weigher and other weighing instruments.

Specification:

Model ATO-LCJBX-JXH-S4
Accuracy ±0.1%FS
Number of channels * 2 inlets to 1 outlet, 3 inlets to 1 outlet, 4 inlets to 1 outlet, 6 inlets to 1 outlet, 8 inlets to 1 outlet, 10 inlets to 1 outlet
Multi-channel input signal 0-20mV (including 2mV load cell output signal)
Output signal 0-20mV
Power supply DC 12V/24V
Working temperature -20~+85℃ (-4~+185℉)
Protection class IP67
Weight 3 kg

Load cell junction box dimension (unit: mm):
Load cell junction box dimension

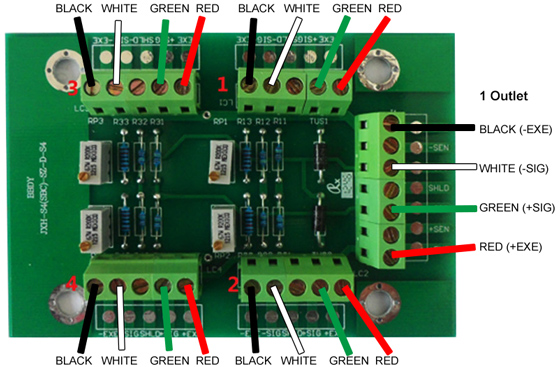

Load cell junction box wiring diagram:
Load cell junction box wiring diagram

Existing reviews of Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet
What signal our PLC will receive if any part of the load cell system fails?
We recently purchased 4 Tension and Compression Load Cells, a Load Cell Transmitter and a Load Cell Junction Box for Scales at ATO Automation Store. And we combined the outputs of the 4 load cells with the junction box and using 1 total weight reading on our machine.
Our question is what reading/output will we get if any part of the signal chain fails/breaks. For example, if a load cell fails, will the single load cell output of 0 KG or 200 KG? Or will it stick at whatever its last value was? If this happens, will our junction box output the average weight and make it hard to tell if 1 of the cells has actually failed? And if the transmitter fails, what does it output? If the junction box fails, what does it output?
From: Alex | Date: 11/06/2024
Was this review helpful? Yes No (0/0)
ATO Responded
If any part of the signal chain fails/is damaged, the result will Not be displayed or the displayed value will be incorrect.
Similarly, if the transmitter or junction box fails, there will be No signal or a very different output value transmitted to the PLC.
There is no ground connection
We received the order, we are reviewing the wiring and it seems there is no ground connection on the display controller.

We want to install these load cells on a distillery, tanks are 40% alcohol. We have a concern for any possible sparks in an explosive area.
From: Thomas | Date: 05/02/2024
Was this review helpful? Yes No (0/0)
ATO Responded
1. Yes, there is No grounding terminal on the display controller, and the grounding wire (yellow cable) of the sensor does Not need to be connected.

2. The inside of the sensor is sealed, and it will Not create a fire or explosion site.

But for safety, you'd better cover the cables with explosion-proof pipes, and place the junction box or transmitter specifically in an explosion-proof box, which will be safer.
Load Cell Junction Box
Do load cell junction box and amplifier come along with cable entry glands? What type of cable would you suggest for the connection between the load cell Junction box and the load cell amplifier? Or is there any specific cable in your product range for load cell connection?
From: Owens | Date: 28/11/2023
Was this review helpful? Yes No (0/0)
ATO Responded
1. The load cell junction box and amplifier have terminal blocks but no cable connectors.

2. If you want stable signal and better anti-interference, we recommend 4-core shielded cable connection for better connection.
If the distance between the junction box and amplifier is very short, you can also use regular 0.75mm² cable.

3. Generally, we only provide cables for load cells, and the rest of the power cables and control signal cables need to be solved by the users themselves.
Load more reviews...
