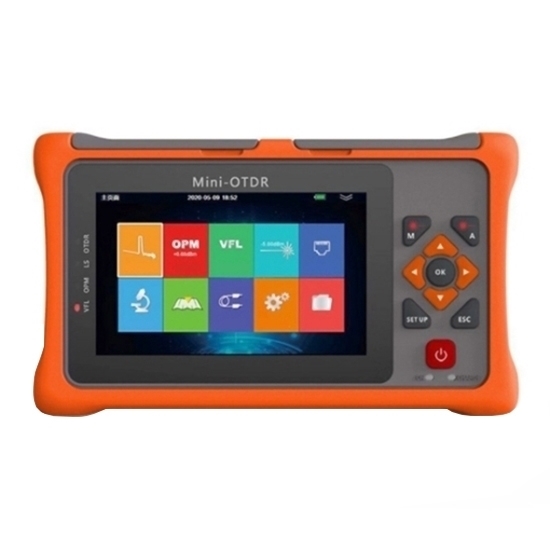

    9 in 1 Mini OTDR Fiber Optic Tester

    Nine-in-one multifunctional mini optical domain reflectometer (OTDR, OPM, VFL, LS, network test, fiber detection, event map, loss test, flashlight), 1310/1550nm wavelength, 22/20dB dynamic range, maximum test distance up to 70km, with 4.3-inch full-view capacitive touch screen, supports multi-touch control. Professional OTDR fiber tester is used to measure fiber length, loss, connection quality, identify fiber breakage and other parameters.
    SKU: ATO-OTDR-1100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy online multifunctional mini optical domain reflectometer, support OTDR, OPM, VFL, LS, network cable test, fiber optic detection, event map, loss test, flashlight and other nine functions. 9 in 1 mini OTDR fiber optic tester wavelength 1310/1550nm, dynamic range 22/20dB, support uploading data via USB interface to PC terminal for further data analysis, processing and printing test results.


    Model ATO-TM1100-A22D
    Wavelength 1310/1550nm
    Dynamic Range 22/20dB
    Measuring Range 100m, 500m, 2km, 5km, 10km, 20km, 40km, 70km
    Sampling Resolution Minimum 0.2m
    The Sampling Point 64,000 Point
    Inearity ≤0.05dB/Db
    Loss Threshold 0.01dB
    Loss Resolution 0.001dB
    Range Resolution 0.01m
    Range Accuracy ±(0.5m+Range×3×10-5+Sampling resolution), (Excluding refractive index error)
    Memory >100000
    VFL 10mW,CW/2Hz
    Data Interface 2xUSB(Type A x 1,Micro USB x 1, SD card
    Screen 4.3-inch TFT-LCD (Standard distribution capacity touch screen)
    Battery 3.7V/5200mAh
    Working Temperature -10℃~+55℃
    Storage Temperature -20℃~+80℃
    Humidity ≤95%(No condensation)
    Dimension 175x105x45mm
    Weight 0.56kg(Contain the battery)
    Attachment Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package
    OPM Type A: -10dBm~-70dBm, Type B: +26dBm~-50dBm
    LS The output power:-5dBm,Modulation frequency:CW/270Hz/1KHz/2KHz
    Network Cable Test Network Cable test


    • Nine-in-one function (OTDR, OPM, VFL, LS, Network Cable test, Fiber Inspection, Event Map, Loss test, Flashlight).
    • 4.3-inch full-view capacitive touch screen with multi-touch support.
    • International standard test data, with perfect simulation software, make your report easier.
    • Sink-type lamp port design, so that the optical time domain reflectometer lamp port is better protected.
    • Support uploading data to PC via USB port for further data analysis, processing and printing test results.

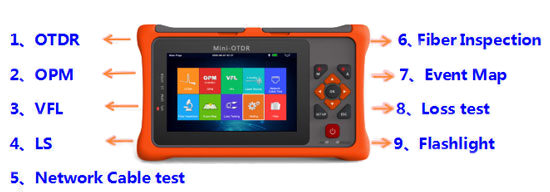

    9 in 1 mini fiber optic tester




    Tips: Optical field reflectometer applications

    OTDR (optical time domain reflectometer) uses the backward scattered light generated when the light propagates in the fiber to obtain attenuation information, which can be used to measure fiber attenuation, splice loss, fiber fault location and understand the loss distribution along the length of the fiber, etc. OTDR tester is an essential tool in fiber optic cable construction, maintenance, and monitoring.
