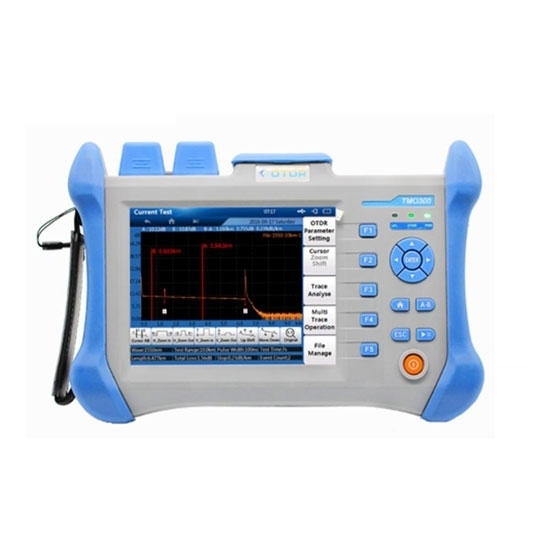

Optical Time Domain Reflectometer, OTDR Machine

5 out of 5 based on 2 reviews | Write a review

$1,989.76

Optical time domain reflectometer price reasonable, light source 1310/1550nm, dynamic range: 30/28dB, 32/30dB, 100-120km accurately testing, 5.6 inch LCD touch screen, accurate measurement of fiber optic cables, otdr machine support multiple languages, English, Spanish and Chinese.

Connector Type *
Optional Accessories *
Socket *
Dynamic Range Type *

SKU: ATO-OTDR-FC300

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
User Manual

Professional otdr machine price low, 1310/1550nm, integrated 8GB internal memory can store 80,000 sets of curves, portable otdr optical time domain reflectometer is the ideal choice.

Specification:

Model	ATO-OTDR-FC300
Pulse Width	(SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs
Pulse Width	(MM 850/1300NM) 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1us
Distance Range	(SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km
Distance Range	(MM 850/1300NM) 100m, 400m, 1.3km, 2.5km, 5km, 10km, 20km, 40km, 80km
Sampling Resolution	Minimum 0.05m
Sampling Point	128000
Loss Threshold	0.01dB
Loss Resolution	0.001dB
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10 + sampling resolution)
Data Storage	80000 groups of curve
VFL	10mW, CW/2Hz
Interface	3 USB ports (Type A×2, Type B×1)
Display	5.6 inch TFT-LCD, Touching screen
Language	English, Spanish, Chinese
Battery	7.4V/4.4Ah lithium battery, support 8 hours continuous working
Working Conditions	Working Temp: -10℃~+50℃, Storage Temp: -20℃~+70℃, Humitity: ≤95% (non-dew)
Dimensions	253×168×73.5mm
Certificate	CE
Weight	1.5kg (Include battery)
Packing List	Straps, Adaptor, Lithium battery, FC connector, USD Cable, User Guide, CD, Softbag, Cleaning cotton

Dynamic Range Type

Dynamic Range Type	Testing Wavelength	Dynamic Range	Event/Attenuation Dead-zone
TMO300A	1310/1550nm	30/28dB	0.8/4m
TMO300B	1310/1550nm	32/30dB	0.8/4m

Features

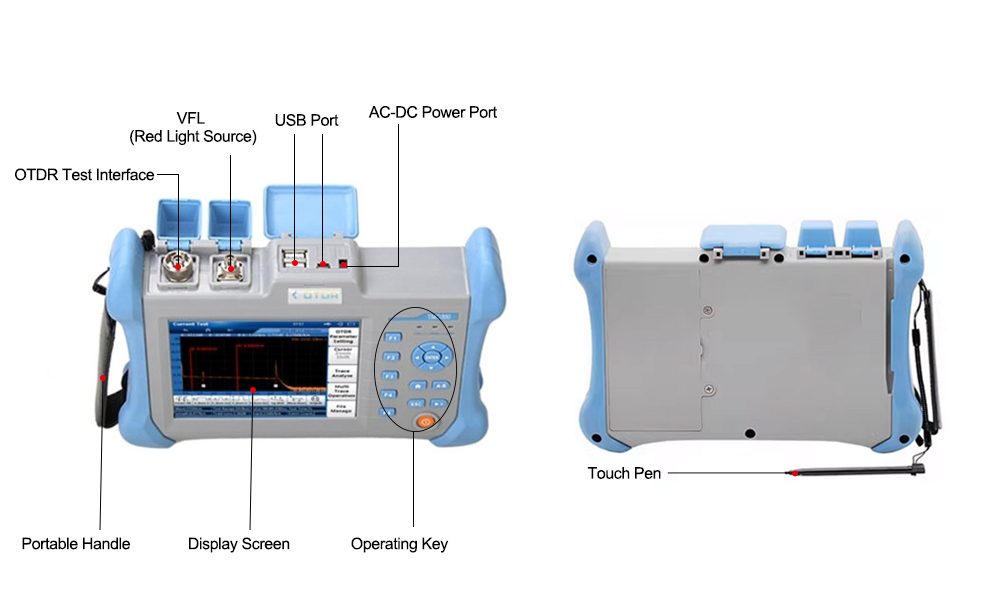

1. 5.6-inch outdoor enhanced touch screen, 7.4V / 4.4Ah lithium battery, durable.
2. Event dead zone is as low as 1.5 meters.
3. Multiple dynamic range and wavelength combinations.
4. Muti measurement mode, support touch LCD and keys.
5. The warning function can prevent the OTDR module from being damaged by the optical signal in the optical fiber.
6. Real-time measurement function, convenient to monitor the splicing process.
7. Integrated 10mw visual fault locator.
8. Support Chinese and English input, adopt friendly input interface, fully simulate computer keyboard input.
9. Integrated 8GB internal memory can store more than 80,000 sets of curves.
10. With PC remote access and control functions, support printing of measurement reports.

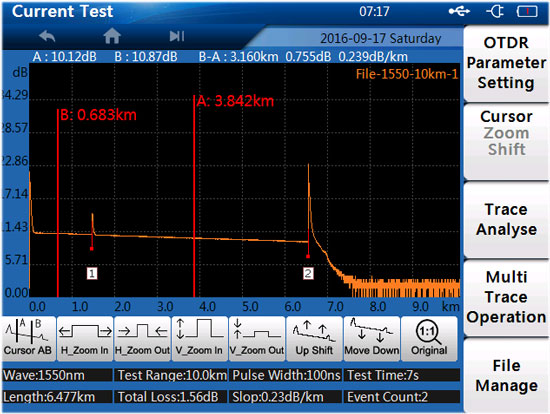

OTDR Graph

Details

Tips: ATO-OTDR-FC300 Optical Time Domain Reflectometer Advantages
1. Automatic measurement mode, the operator does not need to select the test distance and pulse width. The tester will automatically determine the length and select the appropriate dynamic range and pulse width to complete the work. The storage of event tracking can be saved manually or automatically, which will facilitate data analysis.
2. Multiple wavelength measurement modes. In order to use different wavelengths in one fiber for loss calculation, you can select the dual wavelength test mode from the parameter settings, and the tester will automatically switch the wavelength.
3. Multi-trace analysis, displaying 4 traces at the same time, the operator can compare the traces and analyze any one of the traces.
4. Online testing, protection of testing instruments and equipment.
5. Duplex mode, pure operation through touch screen, or pure operation through keys.
6. Data analysis.
7. Save and generate standard tracking files with a storage capacity of more than 20,000 sets.
8. Print analysis reports and traces to make acceptance or work simple and easy.
