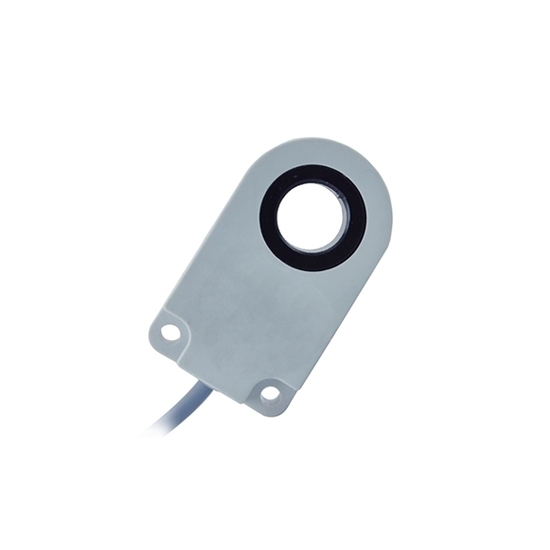

Ring Type Proximity Sensor, 15mm, 2 Wire

$130.26

15mm ring type proximity sensor at cheap price, operating voltage 10-36V, two lead wire types can be chosen. It is generally used to detect small objects, such as blanking detection, small steel balls, small springs, small rivets, metal wire breakage, wire breakage detection.

SKU: ATO-RTPS-T15

Output Form *
Lead Wire *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

Economical price inductive ring type proximity sensor with three kinds of output methods for your needs, which with 500Hz response frequency and -20℃~80℃ environment temperature.

Features
• Multiple sensing options for a wide range of applications.
• Cable or micro quick-disconnect styles provide flexibility.
• Adjustable sensitivity on some models.
• Reverse polarity, short circuit & overload protection.

Specification:

Model			ATO-T15
Mounting			Embedded
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Lead wire types			Direct lead wire/ M12
Ring Diameter			15mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Certificates			CE, RoHS
Warranty			12 months

Dimension: (mm)

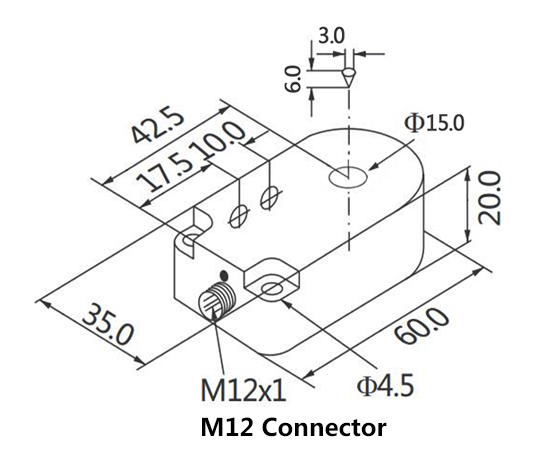

Dimension of 15mm ring type proximity sensor of direct lead wire

Wiring diagram:

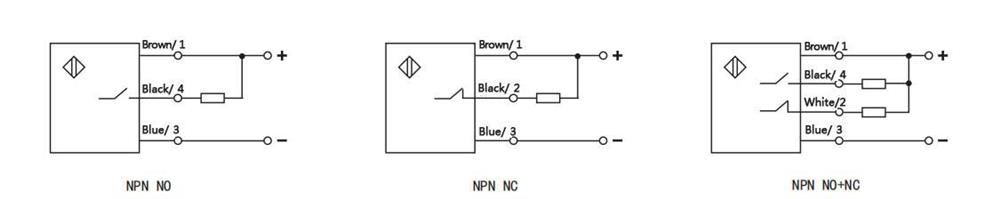

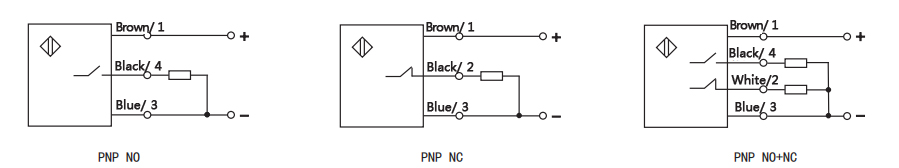

Wiring diagram of ring typr proximity sensor Wiring diagram of ring type proximity sensor

Tips: How to Choose the Models of Ring Type Proximity Sensor?

1. When choosing the model, you can choose according to your own host computer or the connected load. The output mode of the ring proximity switch of some manufacturers also has NPN/NO.NC optional or dual output, or PNP/NO.NC optional or dual output, each with its own characteristics. As for the output voltage signal, the output will be as much as the input (floating around 1V).

2. Regarding the size of the circular hole of the ring proximity switch, there are generally 3-25mm sizes available on the market. You can choose according to the size of your own detection object. If the detection object is small, you should choose a small detection hole. In short, the selected circular hole should be the same as the detection object. Matching, so that the sensitivity and stability of detection can be guaranteed.
