    Ring Type Proximity Sensor, 10mm, PNP

    $127.78
    Ring type proximity sensor at affordable price, with 10mm diameter, NPN/ PNP/ 2 wire three output types for selection, embedded type installation, > 20MΩ insulation resistance and repeated accuracy ≤5%. It offers high resolution,strong impact resistance, short response time and long service life advantages.
    SKU: ATO-RTPS-T10
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Ring type inductive proximity sensor with 10 mm diameter, PNP type output, manufacturer direct sale. It is generally used to detect small objects, such as blanking detection, small steel balls, small springs, small rivets, metal wire breakage, wire breakage detection.

    Features
    • Multiple sensing options for a wide range of applications.
    • Cable or micro quick-disconnect styles provide flexibility.
    • Adjustable sensitivity on some models.
    • Reverse polarity, short circuit & overload protection.

    Specification:

    Model ATO-T10
    Mounting Embedded
    Output methods DC24V NPN NO
    NC
    NO+NC
    PNP NO
    NC
    NO+NC
    2 wire NO
    NC
    AC110V 2 wire NO
    NC
    AC230V 2 wire NO
    NC
    Operating voltage DC24V 10-36V
    AC110V/ AC230V AC90-250V
    Output current DC24V 100mA (2 wire), 200mA(3/4 wire)
    AC110V 500mA
    AC230V DC 100mA/ AC 300mA
    Lead wire types Direct lead wire/ M12
    Ring Diameter 10mm
    Response frequency 500Hz
    Environment temperature -20~80℃
    Insulation resistance >20MΩ
    Repeated accurancy ≤5%
    Leak current ≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
    Shell material ABS
    Protection grade IP67
    Certificates CE, RoHS
    Warranty 12 months

    Dimension: (mm)

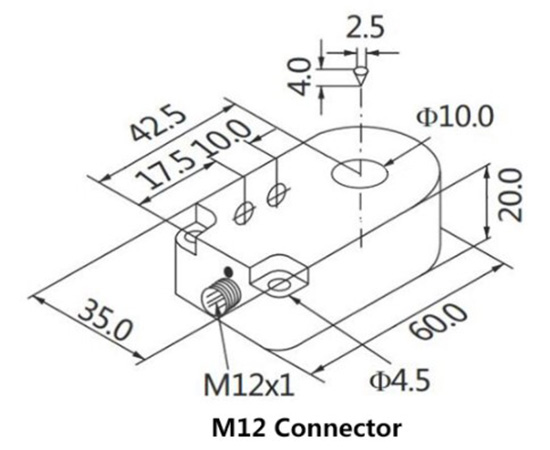

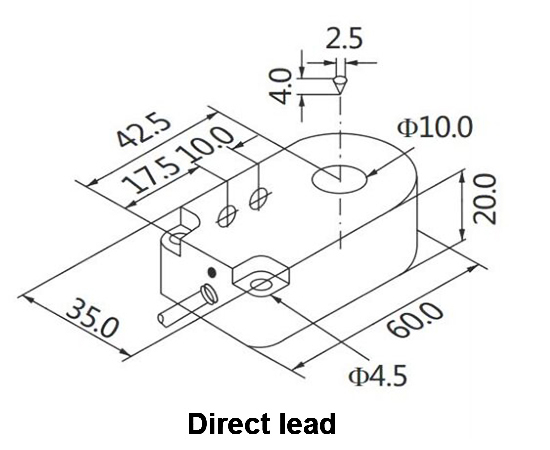

    Dimension of 10mm ring type proximity sensor of direct lead wireDimension of 10mm ring type proximity sensor of M12

    Wiring diagram:

    Wiring diagram of ring typr proximity sensor     Wiring diagram of ring typr proximity sensor Wiring diagram of ring typr proximity sensorWiring diagram of ring type proximity sensor

    Tips: The Advantages of Ring Type Proximity Sensor.

    1. Multiple sensing options for a wide range of applications.

    2. High resolution: even if the small steel ball with a diameter of 0.6mm can be reliably detected, particularly fast reaction time 0.2ms potentiometer can be set to pulse stretching and sensitivity with lines and connectors, normally open normally closed function can be election.

    3. Adjustable sensitivity.

    4. Reverse polarity, short circuit & overload protection.
