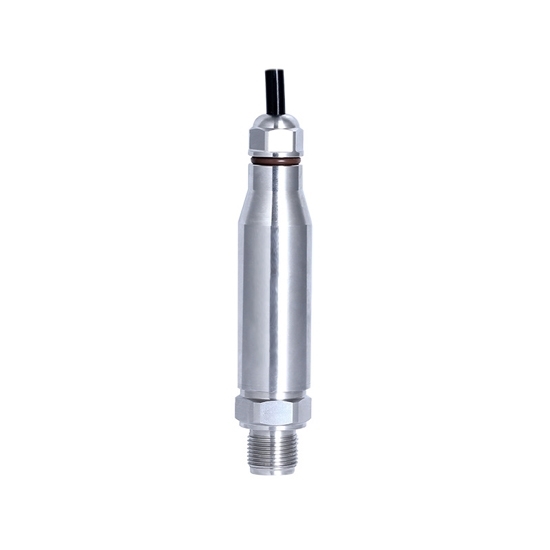

Waterproof Pressure Sensor for Liquid/Gas, IP68

Multi-functional high accuracy waterproof pressure sensors provide excellent solutions for harsh environments and industrial situations where high accuracy is required. With a range of 0.001 to 60MPa and an accuracy of 0.25%FS, they are suitable for a wide range of pressure measurement scenarios. The pressure sensor has built-in temperature compensation and a wide operating temperature range of -40°C to 85°C to ensure accurate readings. Supports standard M20, G1/4 and G1/2 connection interfaces to accommodate different pressure requirements. Extremely durable, supporting 1×10^8 pressure cycle operation to ensure long-term stability and reliability, ideal for industrial control and environmental monitoring.

Specification

Features

• The pressure sensor adopts diaphragm isolation technology and integrated chip design to ensure high accuracy and fast response, and improve overall stability and shock resistance.
• Supports wide voltage power supply, adapts to a variety of application scenarios, convenient installation, and has good waterproof performance.
• Interceptor design effectively enhances the anti-interference ability and prevents electromagnetic interference from affecting signal transmission.
• Equipped with current limiting, voltage limiting and reverse connection protection functions to ensure safe operation and limit current output.
• Excellent lightning protection design provides reliable protection in harsh environments.

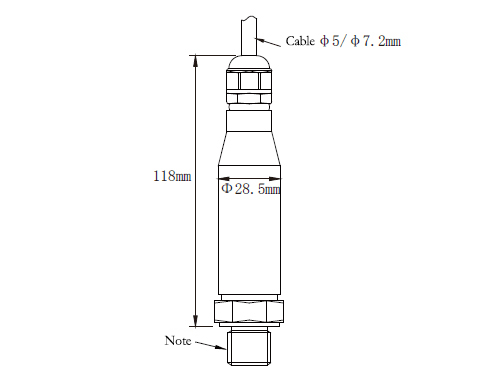

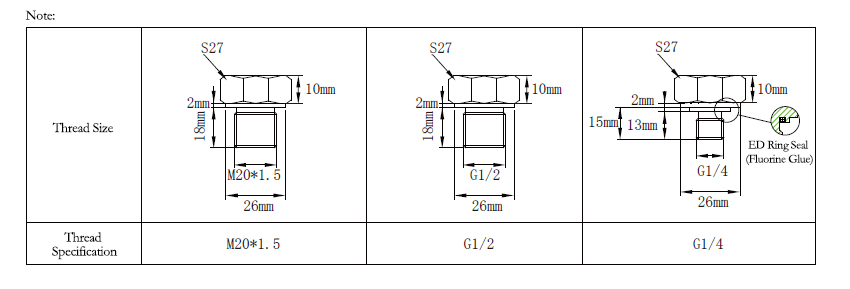

Pressure Sensor Dimension Drawing (unit: mm)

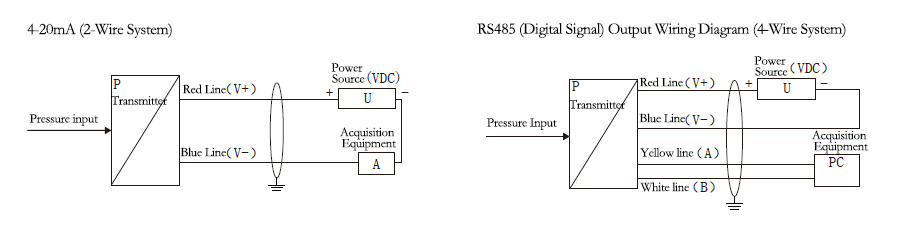

Wiring Diagram

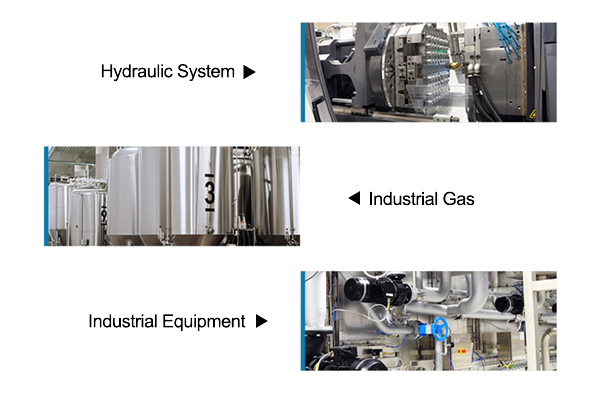

Applications

Tips: Waterproof pressure sensor working principle

Pressure sensor is in a single product on the silicon diffusion of a Wheatstone bridge, the measured medium (gas or liquid) pressure to make the bridge wall resistance changes (piezoresistive effect), resulting in a differential voltage signal, the signal by a special amplifier, the range corresponding to the signal is converted into a standard analog signal or digital signal.
