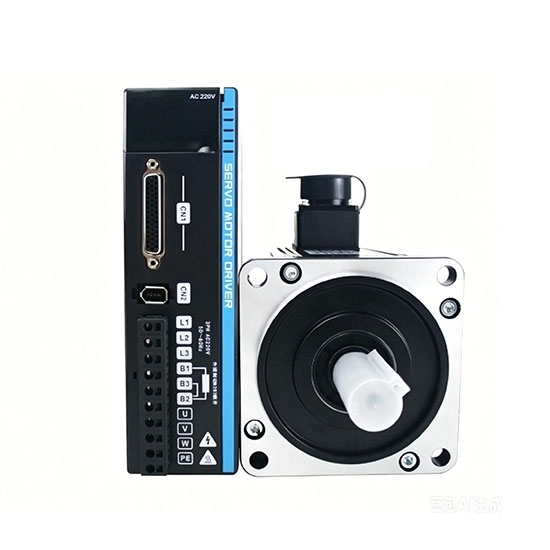

    2 hp (1.5 kW) AC Servo Motor Kit, 10 Nm, 1500 rpm
    1500W AC servo motor, 5 Nm, 3000 rpm
    1500W AC servo motor, 5 Nm, 3000 rpm
    1500W AC servo motor, 5 Nm, 3000 rpm
    1500W AC servo motor, 5 Nm, 3000 rpm

    2 hp (1.5 kW) AC Servo Motor Kit, 10 Nm, 1500 rpm

    5 out of 5 based on 1 reviews | Write a review
    $699.89
    Powerful 2 hp (1.5 kW) brushless AC servo motor kit features a rated speed of 1500 rpm, delivering 10 Nm rated torque and peak torque up to 25 Nm. Designed for three-phase 220V AC input, this servo motor is ideal for CNC machines, robotics, automated production lines, and industrial equipment, offering fast response, stable operation, and high positioning accuracy.
    *
    SKU: ATO-SERVO-130S1500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1500 watt AC servo motor kit for sale, engineered for demanding motion control applications with smooth acceleration, low vibration, and reliable continuous operation. The compact structure allows easy integration into automated systems, while the advanced feedback system ensures precise speed and position control for improved production efficiency and machine performance.

    Specification

    Servo Motor

    Model ATO-LCMT-15M-130M10015
    Rated Power 1.5 kW
    Rated Voltage 220 VAC
    Rated Current 6 A
    Rated Speed 1500 rpm
    Rated Torque 10 N·m
    Peak Torque 25 N·m
    Back EMF Constant 103 V/1000 rpm
    Torque Constant 1.67 N·m/A
    Rotor Inertia 1.94×10-3 kg·m2
    Phase Resistance 1.29 Ω
    Phase Inductance 5.07 mH
    Electrical Time Constant 3.93 ms
    Motor Length 213 mm
    Motor Length with Brake 294 mm
    Encoder Resolution 17-bit Incremental / 17-bit Absolute
    23-bit Incremental / 23-bit Absolute Encoder
    Insulation Class Class B (130°C)
    Protection Class IP65
    Operating Environment Ambient Temperature: -20°C–50°C
    Relative Humidity: <90% RH (Non-condensing)
    Certification CE
    Weight 11.5 kg

    Servo Drive

    Model ATO-LCA5-30P-1500
    Pulse Width >2.5μs
    Power Supply Range 3-Phase 220 VAC
    Current Range 30 A
    Communication Baud Rate 1 Mbps
    Signal Voltage +5 V / +24 V
    Maximum Pulse Frequency 200 kHz
    Compatible Motor AC Servo Motor (1 kW–3.8 kW)
    Control Mode Pulse + Direction / Analog Voltage / AB Pulse
    Communication Function RS485 Communication, Modbus RTU Protocol
    Communication Baud Rate 1 Mbps
    Weight 1.31 kg
    Dimensions 199 × 178 × 56 mm


    Feature

    • Complete 1.5kW AC Servo Motor Kit: Includes a matched AC servo motor and servo drive for easy wiring, quick setup, and reliable motion control performance in industrial automation systems.
    • High Torque Brushless Servo Motor: Provides smooth operation, fast acceleration, and stable torque output, ideal for CNC machines, robotics, packaging equipment, and automated production lines.
    • Advanced Servo Drive Control: ATO AC servo motor kit (with drive) supports Pulse + Direction, Analog Voltage, and AB pulse control modes, ensuring compatibility with PLCs, CNC controllers, and other motion control systems.
    • RS485 Modbus Communication: Built-in RS485 communication with Modbus RTU protocol enables convenient parameter adjustment, remote monitoring, and industrial network integration.
    • Stable and Efficient Performance: The 2 hp (1.5 kW) AC servo motor kit adopts advanced DSP control technology to reduce vibration and improve response speed, ensuring smooth, stable, and reliable continuous operation in demanding industrial applications.
    • Industrial Protection Design: IP65 protection rating and Class B insulation provide excellent resistance to dust, moisture, and demanding industrial environments.
    • Compact Structure for Easy Installation: Space-saving motor and drive design allows flexible installation in automated machinery, conveyor systems, and industrial equipment.

    Detail

    Servo Motor

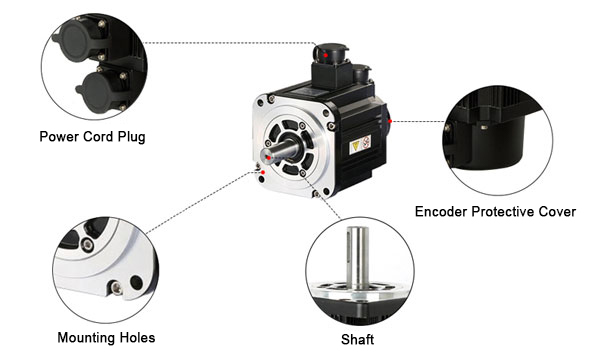

    1.5kw AC servo motor detail

    Servo Drive

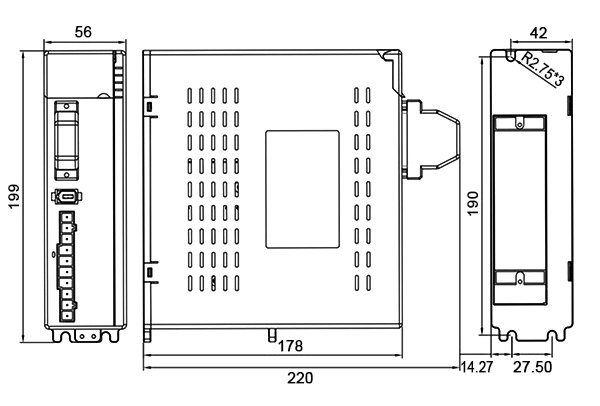

    1.5kw AC servo motor drive size

    Size (unit: mm)

    Servo Motor

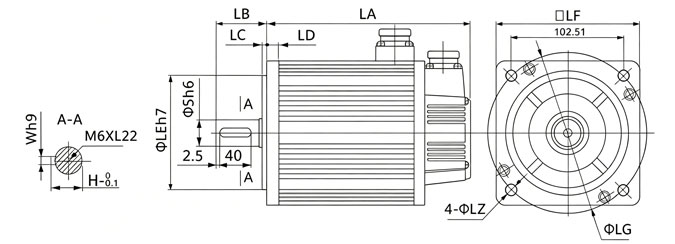

    1.5kW AC servo motor size

    LA 213
    LB 57
    LC 5
    LD 14
    LE 110
    LF 130
    LG 145
    LZ 9
    S 22
    W 6
    H 24.5

    Servo Drive

    1.5kW AC servo motor drive size

    Winding and Encoder Connection

    1. For servo motor winding

    Motor Winding Plug Winding Lead U V W PE
    Socket Number 2 3 4 1

    2. For encoder

    Encoder Socket Signal Definition 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 5 1


    Tips: Tension reduction for servo motor cable

    1. Ensure that cable is not subjected torque or vertical load due to external bending force or its own weight, especially at cable outlet or joint.
    2. When servo motor is moving, fix the cable (just that line which is provided with motor) at a static part (use motor as reference) firmly and use an additional cable installed in cable holder for extension, which can minimize the bending tension.
    3. Make the bend radius of cable be as large as possible.

    This video briefly shows the application of the ATO servo system in a linear slide.

    ATO servo motor has 40mm to 180mm different square flange size, power rating from 50W to 7.5kW and speed range from 1000 rpm to 3000 rpm. so you can select the best one for your applications. In this video, ATO will show you servo motor linear actuator system for robotics.

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    How to unlock the servo drive timing lock?

    In this video, the process of unlocking the servo drive timing lock is demonstrated.

    How to Connect the Servo Motor Controller and Set the JOG Mode?

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo drive and how to set the JOG mode.

    How to Use the Position Control Method of the Servo Motor(through PLC Pulse Control)?

    The video introduces the connection and control (position control method) between PLC and ATO servo motor system.
