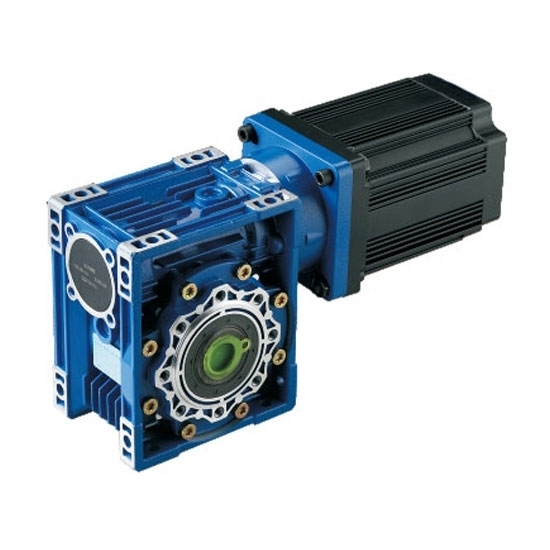

    1500 W DC Worm Gear Motor, 36V/48V

    5 out of 5 based on 2 reviews | Write a review
    Buy 1500 W DC worm gear motor for electric car, renewable energy systems and industrial equipment, works with 2000 rpm high speed and 4.78N·m rated torque, selectable 36V or 48V power supply, gear ratio from 7.5:1 to 100:1.
    SKU: ATO-GEAR-W1500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1500 W (2 hp) 3 phase BLDC motor is equipped with worm gearbox providing high speed and high torque at 36V or 48V power supply. The power, voltage, speed, shaft, motor length and lead can be customized.


    Motor Model ATOD110BLD1500-36A ATOD110BLD1500-48A
    Motor Type BLDC Motor
    Power 1500W
    Voltage 36V DC 48V DC
    Rated Current 52.08A 39.06A
    No Load Current <20A <15A
    No Load Speed 2700 rpm
    Rated Speed 2000 rpm
    Rated Torque 4.78N·m
    Peak Torque 14.34N·m
    Motor Dimension 110mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
    Recommended Drive Model ATO-BD100 ATO-BD100
    What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80 100
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25 20
    Rated Output Torque (Nm) 43.0 57.3 86.0 111.7 136.1 159.0 200.6 177.0 200.0 180.0 139.0


    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

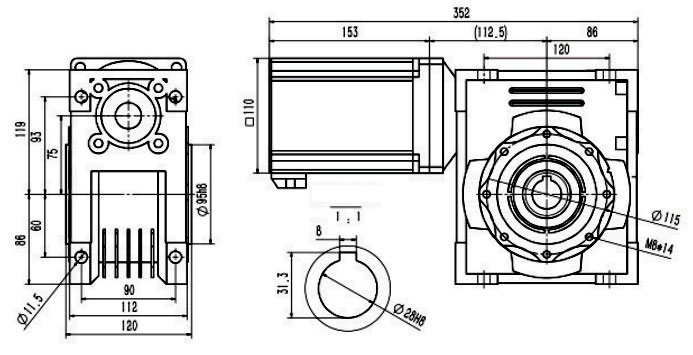

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

    Dimensions of 1500 W DC Worm Gear Motor

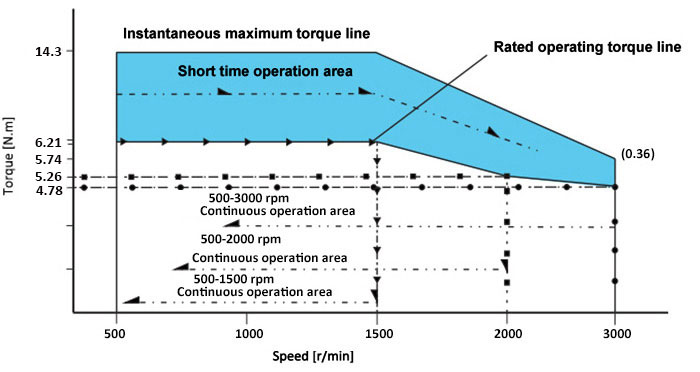

    Speed-Torque Curve

    1500 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

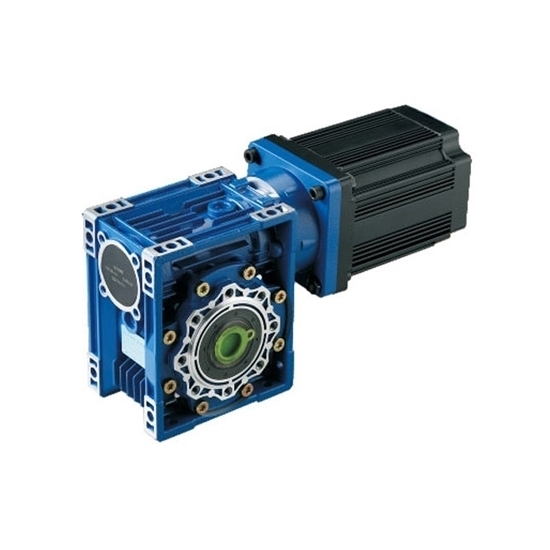

    1500W DC Worm Gear Motor Details

    Tips: How to prevent the generation of brush sparks in a worm gear motor

    1. The commutation pole can be installed, which is offset by the potential of the commutation pole.
    2. The brush should be selected reasonably, the contact resistance between the brush and the surface of the commutator should be as large as possible, and the wear resistance of the brush should be good.
    3. The pressure of the brush should be adjusted well. If the pressure is too tight, it will aggravate the wear of the brush and commutator. However, if the pressure is too loose, the contact between the brush and the commutator will be poor, which will cause some problems. The inner surface of the brush holder box should be smooth and flat, without burrs and other problems, and the inner hole roughness should be less than 2um.
    4. The material and model of the brush should be choosen correctly, which is generally determined according to the operating conditions of the generator.
    5. The number of positive and negative brushes should be equal, and during the installation process, the brush distance between the brushes should be equal, and the contact between the brushes and the collector ring should be good.
