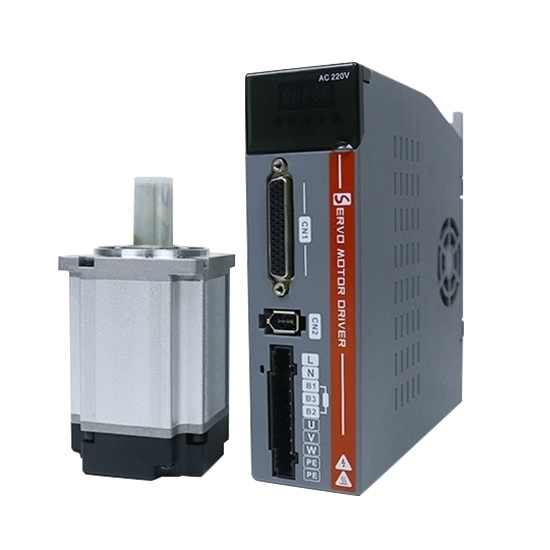

2 kW AC Servo Motor with Drive, 7.7 Nm, 2500 rpm

2000w AC servo motor with drive supports analog voltage, and RS485 control modes, providing flexible positioning, speed, and torque control. Equipped with 22 N·m peak torque, and advanced low-vibration technology, this ac servo motor kit suits equipment manufacturers, automation engineers, and precision machinery applications. Order today for fast-response and quiet servo operation.

Specification

Features

1. High Precision Control: Equipped with 17-bit/23-bit encoder and DSP digital technology, this AC servo motor achieves accurate positioning, stable speed regulation, and reliable torque control without step loss.
2. Powerful Servo Motor Performance: The 2KW AC servo motor delivers 7.7 N·m rated torque and 22 N·m peak torque at 2500 rpm, providing stable and efficient power for industrial automation systems.
3. Fast Response: Built with premium silicon steel materials, the industrial AC servo motor offers high magnetic permeability, low coercivity, high electrical resistivity, and faster response times.
4. Smooth and Low-Noise Operation: Equipped with advanced noise-reduction technology, this servo motor operates with extremely low noise, creating a quiet working environment and ensuring that its operation does not disturb the surrounding area.
5. Multiple Servo Drive Control Modes: The servo motor driver supports Pulse + Direction, Analog Voltage, AB Pulse, and RS485 Modbus RTU communication for flexible industrial motion control integration.
6. Industrial-Grade Design: Featuring IP66 protection and Class B insulation, this servo motor with drive operates reliably in dusty, humid, and harsh industrial environments.

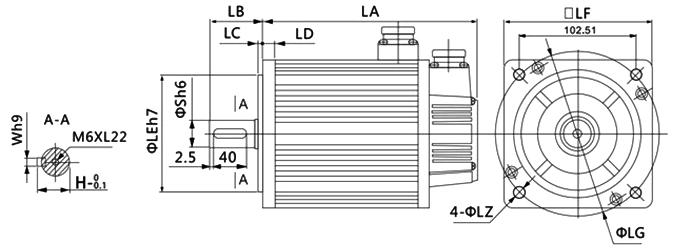

Dimension (unit: mm)

Servo Motor

Servo Drive

Installation Notes: When installing or disassembling components at the motor shaft end, do not strike the shaft with force, as this may damage the encoder at the opposite end. Avoid excessive vibration of the shaft mounting assembly to prevent bearing damage.

Details

Servo Motor

Servo Drive

Tips: What causes vibration or resonance in a servo motor at low speed?

Low-speed vibration or resonance in a servo motor is usually caused by improper servo gain tuning, load inertia mismatch, mechanical instability, or encoder feedback interference. When the position loop, speed loop, or current loop parameters in the servo drive are set too aggressively, the AC servo motor may continuously overcorrect during low-speed operation, creating oscillation, shaking, or resonance. Mechanical factors such as loose couplings, weak mounting structures, shaft misalignment, worn bearings, or insufficient system rigidity can also amplify vibration frequencies. In addition, unstable power supply, electrical noise, or incorrect encoder signals may affect servo motor feedback accuracy and lead to jitter or unstable motion. Proper PID parameter adjustment, optimized acceleration/deceleration settings, stable motor installation, and high-resolution encoder feedback are commonly used to improve low-speed smoothness and reduce servo motor resonance in industrial automation systems.
