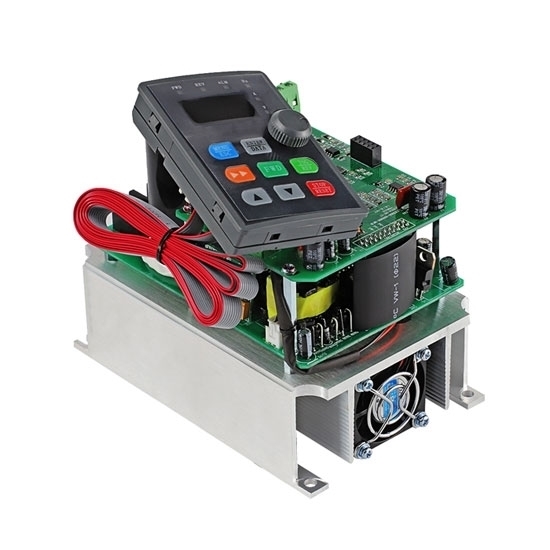

2 hp Non-Enclosure VFD, 1ph Input, 1ph/3ph Output

5 out of 5 based on 2 reviews | Write a review

$161.55

High quality 2 hp (1.5 kW) single phase VFD without enclosure, 220-240v 1-phase input to 1ph & 3ph output, built-in braking unit, V/F control, sensorless vector control, driving single and three phase AC motors.

SKU: GK3300-2S0015

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
User Manual

Discounted 2 hp VFD, customized non-enclosure desgin, single phase input and output, 7.5 amps, brand new direct sale by manufacturer.

Specification:

Basics	Model	GK3300-2S0015
	Capacity	2 hp (1.5 kW)
	Shipping weight	887 g
	Dimension (LWH)	15098114 mm
I/O Feature	Rated current	7.5 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage	1 Phase/3 phase AC 0~input voltage
	Output frequency	0.00~400.00Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Tips: Whether the VFD is suitable for your application.
The main function of the variable frequency drive (VFD) is to change the speed of the AC motor. VFD also provides non-emergency start & stop control, acceleration, deceleration and overload protection. In addition, the frequency inverter can reduce the motor startup inrush current by gradually accelerating the motor. ATO VFD is suitable for machines such as conveyors, fans and pumps which benefit from reduced and controlled motor operating speeds.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application

Existing reviews of 2 hp Non-Enclosure VFD, 1ph Input, 1ph/3ph Output

High quality 2hp non-enclosure VFD

In the case of a single phase input and output 2hp non-enclosure VFD, can you estimate the percentage of inrush current reduction?

From: Dagobert | Date: 23/03/2021

Was this review helpful? Yes No (0/0)

ATO Responded

You can completely eliminate the influx by increasing the acceleration time.

The perfect VFD

Hi, I am wiring a model GK3000-230037 and am wondering where to ground the 220V single phase input. Does it share the same ground as the 3 Phase output.

From: Fenlon | Date: 16/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Thanks for your email.
For 220V input, you can share the same ground as the 3 phase output(E).
Sure, if you connect to the ground system directly, that would be better.
