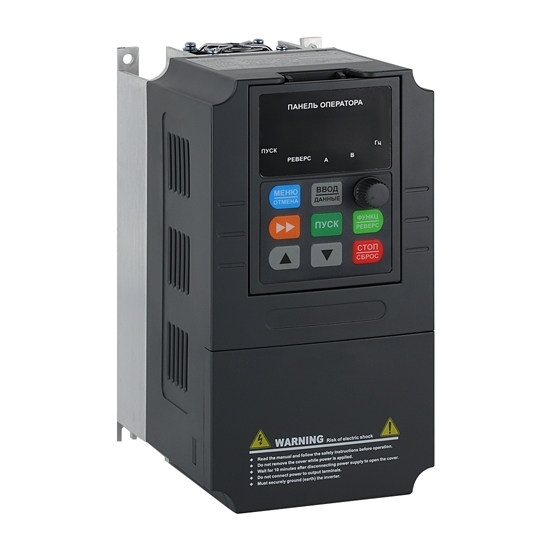

3 hp (2.2 kW) VFD, Single Phase Input & Output

4.8 out of 5 based on 17 reviews | Write a review

$379.23

Cheap 3 hp VFD, 1 phase for single phase AC induction motor, good variable speed performance, 220V - 240V 17 amps, manufacturer direct sale.

SKU: GK3000-1S0022

Qty:

30-day Returns

Free Shipping

Delivery date: 2-3 days

3 hp variable frequency drive, 2.2 kW, 1 phase 220V - 240V for single phase AC motor, manufacturer direct sale.

Specification:

Basics	Model	GK3000-1S0022
	Capacity	3 hp (2.2 kW)
	Shipping weight	3 kg
	Dimension	230118163 mm
I/O Feature	Rated current	17 A
	Input voltage	single phase AC 220V±15%
	Input frequency	47~63Hz
	Output voltage	0～rated input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features	Control mode	V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
	Operation command mode	Keypad control, Terminal control, Serial communication control
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
	Start frequency	0.40Hz~20.00Hz
	Speed adjustment range	1:50
	Carrier frequency	1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
	Frequency accuracy	Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.05%
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0%
	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuates
Control Function	Common DC bus	Common DC bus for several VFDs, energy balanced automatically
	Torque control	Torque control without PG
	Torque limit	"Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function
	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
	Fault protection function	Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals	Input terminals	Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA
	Output terminals	1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V
	Communication terminals	Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface	LED display	Display frequency setting, output frequency, output voltage, output current, etc.
Human machine interface	Multifunction key	QUICK/JOG key, can be used as multifunction key
Environment	Ambient temperature	-10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: Output rated power, ＞1000M: Output derated
	Storage temperature	-20℃～60℃

Note:

The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.
ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.
Single phase VFD Cannot control the motor in reverse, if you want to reverse the motor, refer to the motor nameplate instructions for operation.

Details

Tips: Irrational application in variable frequency drive energy-saving
The variable frequency drive is a power-saving control product, but it can't be used to save energy in every occasion. In fact, the VFD is able to save energy through adjusting the motor speed, and it has slightly higher efficiency and power factor than other speed control equipment. If the variable frequency drive can achieve energy saving is determined by the speed characteristics of the load.
For centrifugal fans or centrifugal pumps loads, the torque is proportional to the square of the speed, and the power is proportional to the cube of the speed. As long as uses the valve to control the flow, and not in full load operating, using speed control operation can achieve energy saving. When the speed dropped to 80% of the original, the power is only 51.2%of the original. We can see that the VFD has obvious energy saving effect in this type of load applications. For Roots blower loads, the torque is independent of the magnitude of the speed, that is, it is constant torque load. The original uses exhaust valve to discharge excess air flow and to adjust the air volume, if uses speed control operation, it can also achieve energy saving. When the speed dropped to 80% of the original, the power will drop to 80%, the energy-saving effect is much lower. For constant power loads, power is independent of the speed. Such as the ingredients belt scale, under the set flow conditions, when the material layer is thick, the belt speed down. When the material layer is thin, the belt speeds up. In this type of load applications, the VFD cannot achieve energy saving.

Running a single phase motor with VFD

In this video, ATO will show you details about running a single phase motor on a VFD. It's important to note that there are two wiring methods for single phase motor connecting to ATO single phase VFD: wiring of removing motor capacitor & wiring of keeping motor capacitor. At first, you should choose the wiring method you needed, and then set basic parameters step by step.

Four Ways to Control VFD with PLC

This video introduces the main wiring methods between PLC and VFD, including digital control, analog control, serial communication and Ethernet connection. The choice of connection method depends on the specific application requirements, system complexity, cost considerations and the need for control accuracy and flexibility.

How to Choose a VFD for Your Motor?

In this video, we lay out a list of key factors that should guide you in choosing the right VFD for your motor or any other possible application.

VFD analog input 0-10V frequency control (VI port)

ATO GK3000 VFD uses external voltage analog to control the frequency so as to achieve the purpose of motor speed regulation.

Control VFD with potentiometer & button (VI port)

ATO GK3000 vector VFD supports control of synchronous motors, and supports external potentiometer and button control.

Single-phase Output VFD Controls Single-phase Motor Speed

This video shows the details of using a frequency converter to run a single-phase motor on a single-phase power supply. Including wiring, parameter setting, single-phase motor speed control, etc.

Existing reviews of 3 hp (2.2 kW) VFD, Single Phase Input & Output

I'm having trouble Installing my VFD

I'm trying to install it on a Leeson 3hp single phase motor 230V input with run/start capacitors. When I installed it the motor just rock back and forward not making 1 compete turn so I'm thinking that I Program it wrong but I cannot find ANYTHING to tell me how to do a factory reset.
So, we left that one alone and we try to install it on a different motor a Rockwell same size and output as the Leeson. This time it ran but we burn out the start capacitors I am an electrician but I have never installed a VFD before I feel that I have it wired right.

From: Lindor | Date: 27/02/2025
