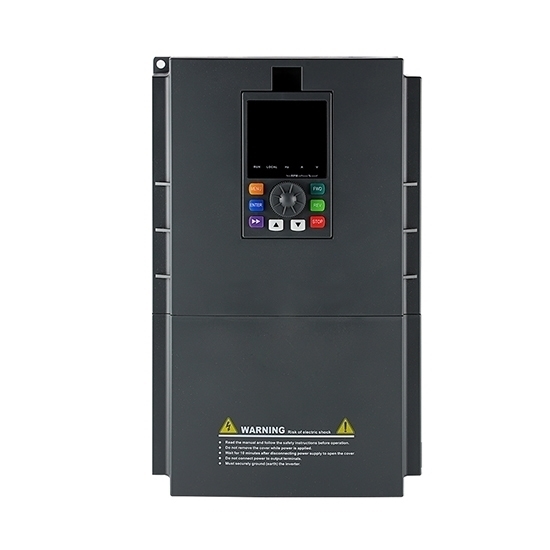

    7.5 hp (5.5 kW) VFD, Single Phase Input & Output

    $507.69
    Favorable price 7.5 hp VFD, 1 phase for single phase AC induction motor, high variable speed performance, 220V - 240V 32 amps, manufacturer direct sale.
    SKU: GK3000-1S0055
    Free shipping
    Delivery date: 6-12 days

    7.5 hp variable frequency drive, 5.5 kW, 1 phase 220V - 240V for single phase AC motor, manufacturer direct sale.

    Specification:

    Basics Model GK3000-1S0055
    Capacity 7.5 hp (5.5 kW)
    Shipping weight 9 kg
    Dimension 177.2*200*329.1 mm
    I/O Feature Rated current 32 A
    Input voltage single phase AC 220V±15%
    Input frequency 47~63Hz
    Output voltage 0~rated input voltage
    Output frequency V/f control: 0~3000Hz
    Over load capacity 150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
    Control Features Control mode V/f control
    Operation command mode Keypad control, Terminal control, Serial communication control
    Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
    Starting torque 1 Hz/150%
    Speed adjustment range 1:50
    Carrier frequency 1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
    Frequency accuracy Digital setting: 0.01Hz
    Analog setting: Maximum frequency * 0.05%
    Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0%
    V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
    Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
    DC braking DC braking when starting and stopping
    DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
    Jog operation Jog operation frequency: 0.0Hz~maximum frequency
    Jog acceleration/deceleration time: 0.1s~3600.0s
    Simple PLC & multi-step speed operation It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
    Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
    Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
    Control Function Common DC bus Common DC bus for several VFDs, energy balanced automatically
    Torque control Torque control without PG
    Torque limit "Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
    Wobble frequency control Multiple triangular-wave frequency control, special for textile
    Timing/length/counting control Timing/length/counting control function
    Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
    Fault protection function Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
    Input/output terminals Input terminals Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI:
    AI1: 0~10V or 0/4~20mA
    A12: 0~10V or 0/4~20mA
    Output terminals 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output)
    2 relay output
    2 analog output: 0/4~20mA or 0~10V
    Communication terminals Offer RS485 communication interface, support MODBUS-RTU communication protocol
    Human machine interface LED display Display frequency setting, output frequency, output voltage, output current, etc.
    Multifunction key QUICK/JOG key, can be used as multifunction key
    Environment Ambient temperature -10℃~40℃, derated 4% when the temperature rise by every 1℃ (40℃~50℃).
    Humidity 90%RH or less (non-condensing)
    Altitude ≤1000M: Output rated power, >1000M: Output derated
    Storage temperature -20℃~60℃

    Tips: Variable frequency drive functions in air conditioning

    1. In air conditioning, VFD can make the compressor motor speed continuously adjustable, and the speed is based on indoor air conditioning load proportional change. When the room needs rapid cooling (or rapid warming), air conditioning load will increase, the compressor speed up, and the cooling (or heating) capacity will proportion increases. And then after reaches the set temperature, the system will operate in low-speed to maintain room temperature.
    2. VFD air conditioner uses electronic expansion valve to control the flow, and its outdoor micro processor controls the valve opening degree based on the expansion valve inlet and outlet, the compressor in the air pipe at the temperature sensor to collect information, which can change the flow of refrigerant at any time. The speed of the compressor corresponds to the opening degree of the expansion valve, so that the capacity of the evaporator can be maximized. At the same time, because of using electronic expansion valve as a throttle element, the device will not stop when defrost. It uses compressor exhaust heat to the indoor, and then sends the remaining heat to the outside to melt the frost on heat exchanger fin.
    3. VFD air conditioner will gradually replace the traditional fixed speed air conditioner, and becoming the main stream of air conditioning control technology. The frequency conversion technology has been changed from AC type to DC type, and the control technology has been developed from PWM (Pulse Width Modulation) to PAM (Pulse Amplitude Modulation). The speed of the compressor with PWM control is limited by the upper limit speed, generally not more than 7,000/min, and the compression speed of PAM control mode can be increased for about 1.5 times, which greatly improves the refrigeration capacity at refrigeration and low temperature.

    ATO GK3000 VFD wiring instruction for single phase induction motor
    Single phase induction motor has specific wiring requirements in connecting with ATO single phase VFD to enable your single phase motor running properly, please follow below instructions step by step:
    VFD wiring instruction for single phase motor
    Step 1: Single phase motor has one or two capacitors, disassembly them. The VFD output can't have capacitor.
    Step 2: VFD Common Terminal: Running the VFD at 50Hz without connecting loads, measuring the output voltages of U-V, U-W, and V-W, two of three voltage values are the same, their common port is VFD's common terminal. Usually the default common terminal is V phase. (The output voltage is a bit higher for the non-common terminal)
    Step 3: Single phase motor has 3 windings and 6 taps. Base on the measuring results of the resistance by a multimeter, the biggest resistance is the secondary winding (Z1, Z2), the smaller resistance is the main winding (U1, U2), the smallest resistance (conducting) is centrifugal switch (V1, V2).
    Step 4: The Coupling End of the single phase motor secondary winding (Z2) and main winding (U2) is connected to the VFD's output common terminal (V phase).
    Step 5: The Coupling End of the single phase motor main winding (U1) and centrifugal switch (V1) is connected to the VFD's U phase. The Coupling End of the secondary winding (Z1) and capacitor is connected to the VFD's W phase. In case of the induction motor running in reverse, please exchange the VFD's U phase and W phase.
    ATO VFD wiring instruction for single phase motor without disassembling capacitors
    Connecting the single phase motor input lines (L, N) to ATO VFD's V, U or W terminals. Generally V Phase should be connected, U or W is optional. Refer to below wiring picture:
    VFD wiring instruction for 1 phase motor with capacitors
