    5 kvar Shunt Power Capacitor, 3 phase, 450V, self-healing

    5 out of 5 based on 1 reviews | Write a review
    3 phase low voltage shunt power capacitor is made of the advanced metalized film and has good self-healing property. It is 5 kvar rated capacity and used in 50Hz or 60Hz 450 volt AC power system. The provided capacitor is applied to improve the power factor of circuit by the parallel connection.
    SKU: ATO-CAP-45005
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    5 kvar 3 phase Power Capacitor Features

    • It is suitable for low voltage AC power system with 450V.
    • It has built-in insure device and discharge resistor for reliable.
    • Small volume, light weight and convenient for you to install.
    • With excellent self-healing performance.
    • Low loss, little radiation and low temperature rise.

    5 kvar 3 phase Power Capacitor Specifications

    Model 0.45-5-3
    Shape Rectangular
    Weight 1 Kg
    Height 105 mm
    Rated Voltage 450V AC
    Rated Capacity 5 kvar (78.6 μF)
    Rated Current 6.4 A
    Rated Frequency 50Hz or 60Hz
    Capacity Tolerance -5%~+10%
    Outgoing Terminal M5
    Connection 3 line-△ type / 4 line-Y type
    Anti Voltage
    1. Between two pole 2.15 times rated voltage is 10s;
    2. Between two pole 3 kv please choose highest value 10s;
    3. There is noperpetuity puncture and flash over.
    Max Permit Over Voltage
    1. 1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours.
    2. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours.
    3. 1.2 times rated voltage, it is not more than 5 minutes.
    4. 1.3 times ratedvoltage, it would not more than 1 minute.
    Max Permit Over Current It is permit that the over current is not more than 1.3 times rated current.
    Safety Self healing, Sheet metal enclosure
    Certification GB/T 12747-2004, IEC60831: 212002

    Note: Need more models information of the 3 phase shunt capacitors, please click here.

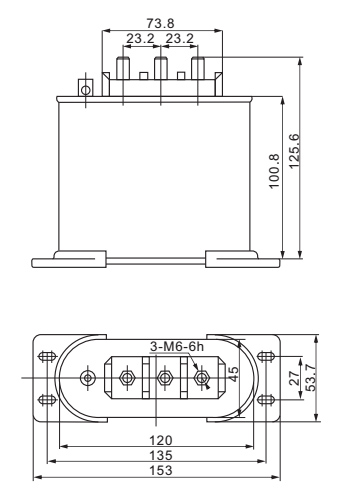

    5 kvar 3 phase Power Capacitor Dimension (mm)
    5 kvar capacitor dimensionTips: Functions of shunt capacitor?

    Shunt capacitor in parallel on bus system, similar to a capacitive load on the system bus, absorbs the capacitive reactive power of system, which is equivalent to shunt capacitor from perceptual reactive power to the system. Therefore, shunt capacitor can provide the perceptual reactive power to the system and the power factor of system operation, improve the voltage level of electrical terminal bus. Meanwhile, it reduces the perceptual reactive power transmission on lines and the voltage and power loss, thus increasing the transmission capacity of lines.
