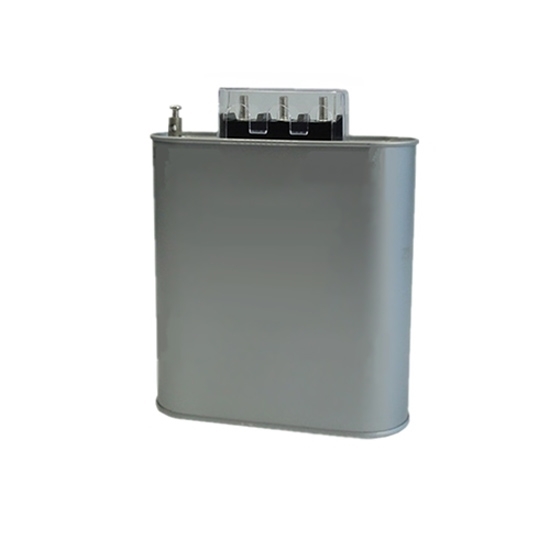

    8 kvar 125 μF Shunt Power Capacitor, 3 phase, 450V, low voltage

    5 out of 5 based on 2 reviews | Write a review
    AC shunt power capacitor is 3 phase, 8 kvar ( 125 μF ) rating at low cost, it is used in low voltage 450V electrical system to reduce reactive loss and improve power factor. Providing excellent self-healing property and reliable, small volume, light weight and convenient installation.
    SKU: ATO-CAP-45008
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 phase power capacitor with 8 kvar (125 μF) rated capacity and is parallel connection in the 450V, 50Hz/60Hz AC system to improve power factor. The component is designed with metalized film, which enables the capacitor to have high self-healing performance, and meet the requirement of high reliable contact and high stress resistance.

    8 kvar Shunt Capacitor Specifications

    Model 0.45-8-3
    Shape Rectangular
    Weight 1 Kg
    Height 105 mm
    Rated Voltage 450V AC
    Rated Capacity 8 kvar (125 μF)
    Rated Current 10.3 A
    Rated Frequency 50Hz or 60Hz
    Capacity Tolerance -5%~+10%
    Outgoing Terminal M6
    Connection 3 line-△ type / 4 line-Y type
    Anti Voltage
    1. Between two pole 2.15 times rated voltage is 10s;
    2. Between two pole 3 kv please choose highest value 10s;
    3. There is noperpetuity puncture and flash over.
    Max Permit Over Voltage
    1. 1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours.
    2. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours.
    3. 1.2 times rated voltage, it is not more than 5 minutes.
    4. 1.3 times ratedvoltage, it would not more than 1 minute.
    Max Permit Over Current It is permit that the over current is not more than 1.3 times rated current.
    Safety Self healing, Sheet metal enclosure
    Certification GB/T 12747-2004, IEC60831: 212002

    Note: Need more models information of the 3 phase shunt capacitors, please click here.

    8 kvar Shunt Capacitor Dimension (mm)
    25 kvar capacitor dimension
    Tips: Causes for shunt power capacitor damage

    1. When the capacitor bank is removed, the reignited overvoltage caused by reigniting of breaker causes the insulation damage and even breakdown between the capacitor poles. Some capacitor banks have no overvoltage protection measures, and no reactors in series, especially for those capacitors with frequent operation, are more likely to suffer insulation damage and even cause explosions.
    2. When the capacitor is input, the current is too high, and the excessive harmonic of power grid causes overcurrent, which causes the capacitor to overheat, reducing the insulation performance and even causing damage to the capacitor.
    3. The capacitor is not equipped with a single fuse, or has a fuse but the fuse characteristic (the ampere characteristic) is too bad. When the internal components of capacitor are seriously broken down, the failure current occurs. The fuse cannot be blown in time, and the effective relay protection measures have not been kept up. The excessive current causes the temperature inside the capacitor rising sharply, causing swelling or exploding to the capacitor.
    4. Poor product quality. The oil paper insulation is not dried and impregnated under strict vacuum. Under the long-term operating voltage, the inside residual bubbles produce partial discharging. Partial discharging further leads to insulation damage and aging. The temperature rising also increases, eventually results in the electrochemical breakdown of element and damage to the capacitor.
