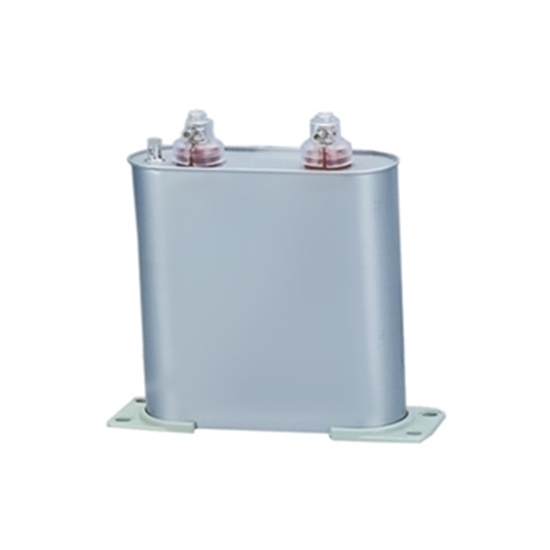

    10 kvar Shunt Capacitor, single phase, 400V, self-healing

    5 out of 5 based on 1 reviews | Write a review
    Self-healing type single phase shunt capacitor is 10 kvar rated capacity and good quality at low price. The offered AC capacitor is in parallel connection and widely used in low voltage electric network to improve power factor and reduce reactive loss of electrical energy.
    SKU: ATO-CAP-40010
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    10 kvar Capacitor Features

    • It can be used in 50Hz or 60Hz, 400V AC low voltage circuit system.
    • Small volume, light weight for you easy to install.
    • Excellent self-healing property: Rapidly self-healing after midum dielectric breakdown by over-voltage or over-current, recovered to normal work.
    • Good Safety performance: Discharge resitor and over-pressure protection device inside capacitor.
    • No leaking, no pollution and environment protection.

    10 kvar Single Phase Capacitor Specifications

    Model 0.4-10-1
    Shape Rectangular
    Weight 1.5 Kg
    Height 180 mm
    Rated Voltage 400V AC
    Rated Capacity 10 kvar (198 μF)
    Rated Current 25 A
    Rated Frequency 50Hz or 60Hz
    Capacity Tolerance -5%~+10%
    Outgoing Terminal M6
    Connection 3 line-△ type / 4 line-Y type
    Anti Voltage
    1. Between two pole 2.15 times rated voltage is 10s;
    2. Between two pole 3 kv please choose highest value 10s;
    3. There is noperpetuity puncture and flash over.
    Max Permit Over Voltage
    1. 1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours.
    2. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours.
    3. 1.2 times rated voltage, it is not more than 5 minutes.
    4. 1.3 times ratedvoltage, it would not more than 1 minute.
    Max Permit Over Current It is permit that the over current is not more than 1.3 times rated current.
    Safety Self healing, Sheet metal enclosure
    Certification GB/T 12747-2004, IEC60831: 212002

    Note: Need more models information of the single phase shunt capacitors, please click here.

    10 kvar Shunt Capacitor Dimension (mm)
    single phase 20 kvar capacitor dimension

    Tips: What is a shunt capacitor?

    Shunt capacitor, formerly known as phase-shifting capacitor. It is mainly used to compensate the reactive power of the inductive load of the power system to improve the power factor and the voltage quality and reduce the line loss. Single-phase shunt capacitor is mainly composed of core, shell and outlet structure. The metal foil (as a polar plate) is folded together with an insulating paper or plastic film, which consists of a number of components, insulating pieces and fasteners that are pressed together to form a capacitor core and impregnated with insulating oil. The lead wire of the capacitor plate is connected by string and connected in series and parallel to the outlet connecting piece of the lower end of the outlet porcelain casing. The metal shell of capacitor is filled with insulating medium oil.
