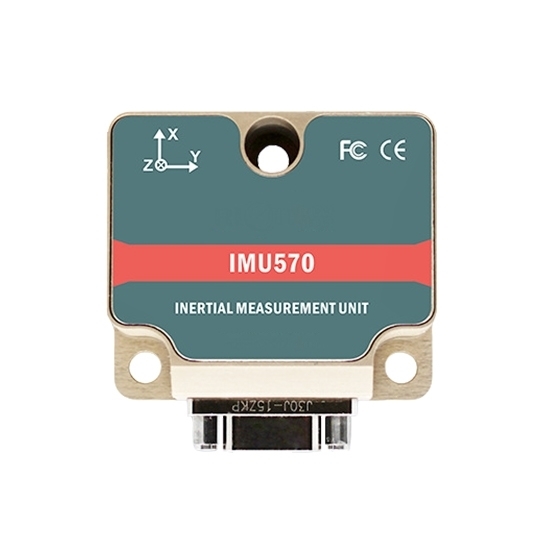

6 Axis Industrial IMU Sensor, 3 Axis Gyro/Accelerometer

Write a review

$1,080.59

This 6-axis industrial IMU sensor delivers high-precision 3-axis gyroscope and 3-axis accelerometer measurements. MEMS IMU achieves 0.5° dynamic roll/pitch accuracy and ±1800°/s gyro range. With 100g shock resistance and -40℃ to 85℃ operating range, IMU is ready to shop for industrial navigation, platform stabilization, and autonomous system applications.

SKU: ATO-IMU-570

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

6-axis small IMU provides precise 3-axis gyro and accelerometer data for vehicle/drone applications. Compact 52-gram design withstands extreme automotive vibrations and impacts, stable output supports various automotive guidance and control platforms.

Specification

Model	ATO-IMU570
Supply Voltage	+5 V ± 0.5 V (DC)
Operating Current	105 mA ± 5 mA
Operating Temperature	-40 ~ +85 °C
Storage Temperature	-40 ~ +85 °C
Vibration	10 ~ 2000 Hz, 10 g
Shock	100g @ 11ms, Three Axes (Half-Sine)
Weight	(52 ± 5) g
Attitude Performance	Roll/Pitch (1σ, Dynamic)	0.5°
Attitude Performance	Heading	0.5°
Gyroscope Performance	Measurement Range	±1800 °/s
	Bias Instability (Allan Variance)	≤ 8 °/h (-20 ~ +70 °C)
	Angular Random Walk (Allan Variance)	≤ 0.13 °/√h & 0.24 °/√h
	Bias Acceleration Sensitivity	≤ 1 °/h/g
	Resolution	≤ 0.001 °/s
	Scale Factor Non-Linearity	≤ 100 ppm
	Scale Factor Repeatability	≤ 100 ppm
	Cross-Coupling	≤ 0.1 %
	Bandwidth	≥ 200 Hz
Accelerometer Performance	Measurement Range	±38 g
	Bias Instability (Allan Variance)	0.019 mg
	Bias Repeatability	0.08 mg
	Velocity Random Walk (Allan Variance)	0.04 m/s/√h
	Bias Error (Full Temperature Range)	0.5 mg

Note: Roll, Heading: ±180°; Pitch: ±90°

Features

Dynamic accuracy: Delivers 0.5° dynamic roll/pitch accuracy, ideal for robotics/drone navigation and stabilization systems.
Vibration suppression: Effectively suppresses linear acceleration and vibration effects, ensuring reliable industrial IMU sensor performance.
Thermal compensation: Implements full-temperature compensation for stable 6 axis MEMS IMU operation across -40℃ to 85℃ range.
Shock resistance: Withstands 100g shock impacts, maintaining measurement integrity during sudden movements.
High-range sensing: Features ±1800°/s gyro and ±38g accelerometer ranges for extreme motion capture.
Low noise performance: Achieves 0.019mg accelerometer bias instability for precise vibration monitoring.
Compact design: Lightweight 52g construction enables easy integration into space-constrained applications.

Dimension

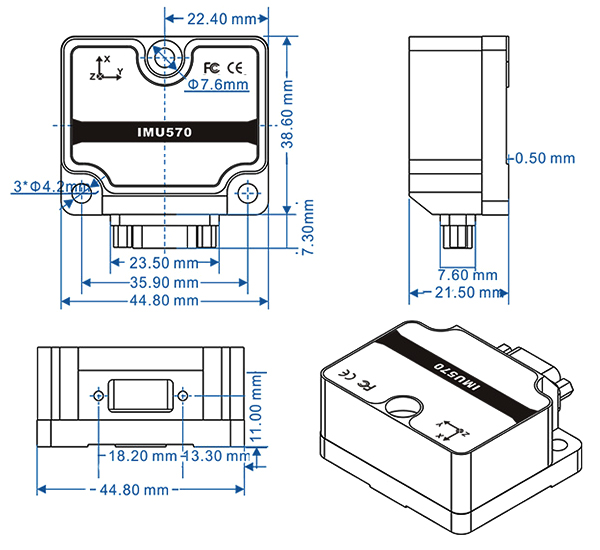

6 axis IMU sensor dimension

Contacts

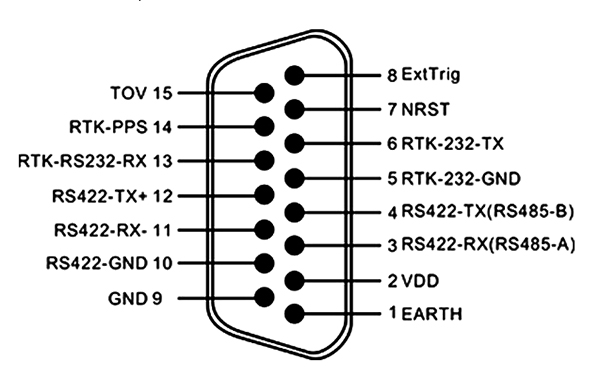

6 axis IMU sensor contacts

Application

6 axis IMU sensor application

Tips: What happens to the IMU during rapid acceleration-vibration conditions?

During rapid acceleration-vibration conditions, the high precision industrial IMU employs sophisticated signal processing to dynamically separate sustained linear motion from high-frequency mechanical vibrations. Advanced filtering algorithms within the inertial measurement unit isolate true kinematic acceleration from vibration noise, enabling the system to maintain precise attitude estimation and motion tracking even when strong propulsion forces coincide with intense structural resonances.
