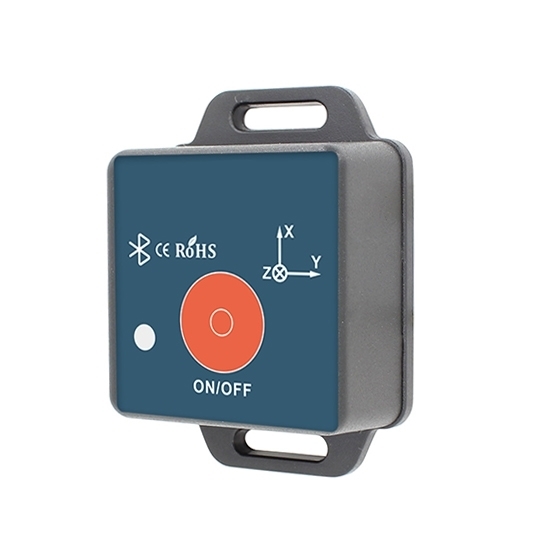

Wearable Wireless IMU Sensor with Bluetooth, 100Hz

Write a review

$105.88

High-performance wearable wireless IMU streams real-time motion data at a 100Hz output rate. An integrated Bluetooth IMU sensor provides cable-free operation for mobile applications. Performance features include ±500°/sec gyro range and ±8G accelerometer range. Rugged design offers 100g shock resistance and IP65 waterproof rating. With 98,000 hours MTBF, the cheap wearable Bluetooth IMU ensures reliable operation in demanding environments.

SKU: ATO-IMU-100BL

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low cost 100Hz wearable wireless inertial measurement unit provides industrial IMU orientation data, delivering roll, pitch, and magnetic heading angles. Dynamic tilt accuracy is better than 0.5 degrees. This AHRS IMU functionality supports both 6-axis and 9-axis fusion modes.

Specification

Basic Parameters
Model	ATO-IMU100-BL
Power Supply Voltage	DC 3.0 - 4.2 V
Power Consumption	50 mA (Typical)
Output Interface	USB 2.0
Connector	Type-C Connector
Operating Temperature	-5 °C ~ +55 °C
Storage Temperature	-10 °C ~ +55 °C
Mean Time Between Failures (MTBF)	≥ 98,000 hours
Shock Resistance	100g @ 11ms, Three Axes (Half-Sine Wave)
Vibration Resistance	10 g_rms, 10 ~ 1000 Hz
Waterproof Rating	IP65
Weight	≤ 35 g (excluding cable)
Azimuth
Measurement Range	±180° (Gyro or Magnetic Azimuth configurable)
Measurement Accuracy (RMS) @25°C	< 1.5° (Under non-magnetic interference)
Resolution	< 0.1°
Tilt (Inclination)
Measurement Range	Roll ±180°, Pitch ±90°
Measurement Accuracy (RMS) @25°C	< ±0.5° (Dynamic), < ±0.2° (Static)
Resolution	< 0.1°
Gyroscope
Measurement Range	±500 °/sec
Bias Instability @25°C	< 200 °/hr
Resolution	< 0.1 °/sec
Bandwidth	> 100 Hz
Accelerometer
Measurement Range	±8 G
Resolution	< 10 mg
Bandwidth	> 100 Hz
Magnetometer
Measurement Range	±8 Gauss
Resolution	< 2.5 mGauss
Bandwidth	14 - 17 Hz

Features

Sensor fusion: 9-axis IMU integrates gyroscope, accelerometer, and magnetometer for full orientation data.
Wireless performance: Bluetooth 5.1 enables reliable robot navigation IMU connectivity up to 40 meters.
Data accuracy: Advanced Kalman filtering ensures stable and precise attitude output.
Update rate: A 100Hz output provides real-time motion tracking for dynamic applications.
Durability: This MEMS IMU offers excellent vibration performance and drift stability.
Additional features: Built-in temperature sensor and Flash IAP support parameter retention.
Design benefits: Low noise, light weight, and high cost-effectiveness enhance usability.
Output flexibility: Supports both USB 2.0 wired communication and wireless data streaming.

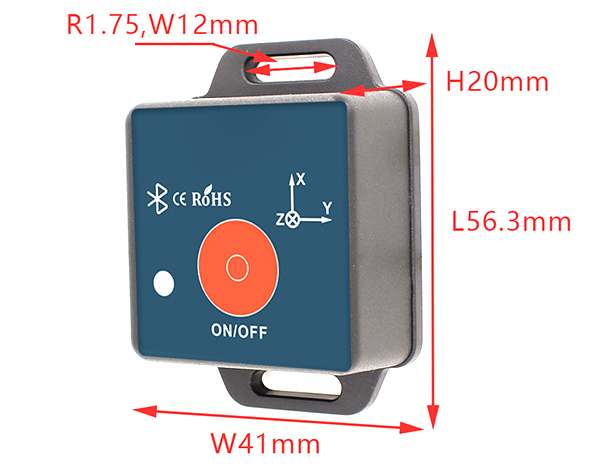

Dimension

Wireless IMU sensor dimension

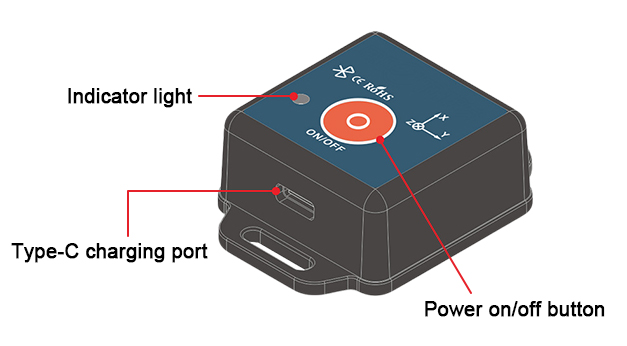

Details

Wireless IMU sensor details

NO/OFF Button: Press the button to power on, press the button to power off.
Indicator Light Status: Rapidly flashing red LED: The red LED flashes rapidly when powered on, indicating connection to a Bluetooth host.
Solid red LED: The red LED remains solid after connection to the host.
Slowly flashing red LED: The red LED flashes slowly when the battery is low, and the device automatically powers off after 30 seconds.
Solid green LED: The green LED remains solid while charging.
Type-C Charging Port: A 5V charging plug is recommended. Charging time is approximately 4 hours, and the theoretical working time is 8 hours.

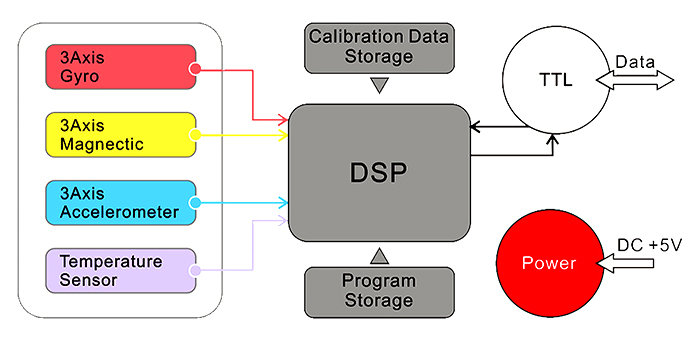

Working Principle

Wireless IMU sensor working principle

Application

Wireless IMU sensor application

Tips: What is the difference between the 6-axis and 9-axis IMU modes?

In 6-axis mode (gyro+accel), the azimuth angle is relative and will drift over time. In 9-axis mode (gyro+accel+magnetometer), the IMU system provides a stable, absolute magnetic heading, but requires a non-magnetic interference environment for accuracy.
