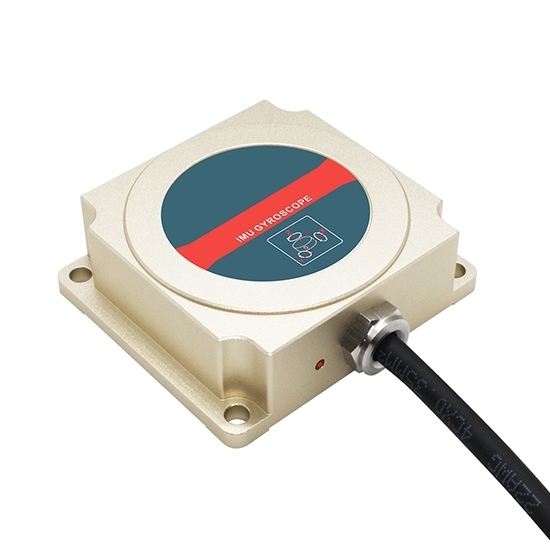

IMU Accelerometer Gyroscope Sensor for Tractor

Write a review

$162.94

Buy professional IMU sensor for tractor automatic guidance systems. This AHRS IMU integrates an industrial-grade accelerometer and gyroscope, delivering real-time dynamic tilt, orientation, and 3-axis motion data. Operating from 9-36V DC with IP67 protection, its excellent vibration resistance ensures smooth attitude output in high-shock farm environments.

Output *

SKU: ATO-IMU-TL725D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Industrial IMU sensor for sale delivers precise accelerometer and gyroscope measurements for harsh agricultural environments. Featuring 200g shock resistance and -40 to +80°C operating range, this small IMU maintains accuracy under extreme tractor working conditions.

Specification

Model	ATO-TL725D
Input Voltage	+9 ~ +36 V DC
Current Consumption (@12V)	35 mA (Typical)
Insulation Resistance	≥ 100 MΩ
Housing Dimensions	L62 × W54 × H20 mm
Installation	4 × M4 Screws
Weight (with 1m cable)	≤ 160 g
Cable	Standard 1-meter 4-core shielded cable
Ingress Protection (IP) Rating	IP67
Operating Temperature	-40 ~ +80 °C
Storage Temperature	-40 ~ +85 °C
Shock Resistance	200g peak, 2ms, 1/2 sine (Note: Conflicting spec: 100g@11ms also listed)
Vibration Resistance	10 grms, 10 ~ 1000 Hz
Operational Lifespan	10 Years
Mean Time Between Failures (MTBF)	≥ 98,000 hours
Output Signal	RS232 / RS485	CAN 2.0A / CAN 2.0B
Attitude Performance
Measurement Range (Roll, Pitch, Yaw)	±180° Roll, ±90° Pitch, ±180° Yaw
Resolution	0.01°
Non-Linearity	0.1% of FS
Algorithm Bandwidth	> 100 Hz
Gyroscope Performance
Measurement Range	250 °/s	250 °/s, 500 °/s (Configurable)
Output Data Rate	5, 15, 25, 35, 50, 100 Hz (Configurable)	1 ~ 200 Hz (Configurable)
Bias Instability (Allan)	4.0 °/h	4.5 °/h
Angular Random Walk (Allan)	0.25 °/√h
Bias Stability (10s mean)	8.5 °/h
Startup Time	500 ms	250 ms
Accelerometer Performance
Measurement Range	±4 g	±2g, ±4g, ±8g, ±16g (Configurable)
Resolution	0.001 g
Accuracy	1 mg
Bias Instability (Allan)	0.05 mg
Velocity Random Walk (Allan)	0.015 m/s/√h
Bias Stability (10s mean)	0.15 mg

Features

Specialized algorithm: Features agricultural dynamic algorithms optimized for navigation IMU performance in automated guidance systems.
Wide voltage input: DC 9-36V power supply compatibility matches combine harvesters and various farm equipment.
Dual output capability: Provides both three-attitude angles and gyroscope data from a single 6-axis IMU sensor unit.
Environmental protection: IP67 rating ensures reliable operation when exposed to dust and water in field applications.
Extended longevity: Designed for long service life and strong stability in automated agricultural machinery applications.
Robust construction: Internal anti-vibration mechanism protects this MEMS IMU sensor against harsh farming conditions and impacts.
Compact design: Space-saving and lightweight construction suitable for tractors and implements.

Dimension

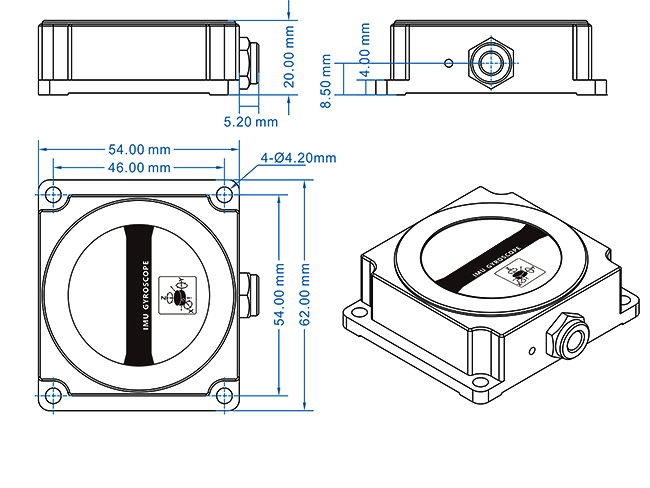

Dimension of IMU sensor for tractor

Installation

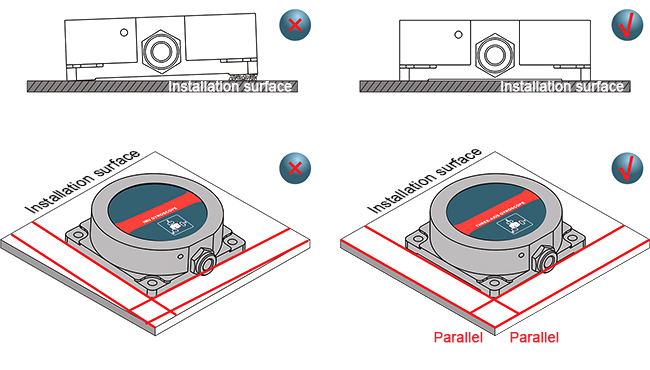

Installation of IMU sensor for tractor

Application

Application of IMU sensor for tractor

Tips: How does IMU system handle sudden temperature changes in field conditions?

The IMU system continuously monitors the die temperature through integrated sensors, with advanced compensation algorithms activating within 2 seconds of detecting thermal transients. This rapid response maintains measurement accuracy across both MEMS IMU sensors and calibration parameters during sudden environmental changes, ensuring reliable performance throughout agricultural operation cycles.
