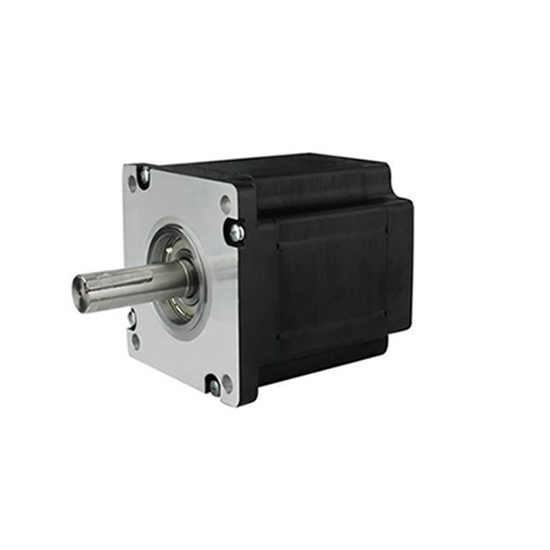

High Torque Nema 42 Stepper motor, 6A, 1.2 degree, 3 phase

5 out of 5 based on 1 reviews | Write a review

$401.35

Nema 42 high holding torque at high speed, 3 phase 6 wires, 1.2 deg. step angle, it is widely used in 3D printer, monitor, medical, textile, packaging machinery, stage lighting, etc.

With Matched Driver *

SKU: ATO-STEP-32004206

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video
Related Video

The 6A, 3 phase NEMA 42 stepper motor is a 6-wire stepper motor which has 1.2° per step for smooth motion and a nice holding torque.

Specifications

Basics	Model	ATO3200-6006A
	Matched the Driver Model	ATODSP86 (Click it to see more info)
	Step Angle	1.2°
	Length	200mm
	Weight	11.8kg
	Current	6A
	Resistance	1.7Ω
	Holding Torque	28Nm
	Motor Leads	6
	Rotor Inertia	15000g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

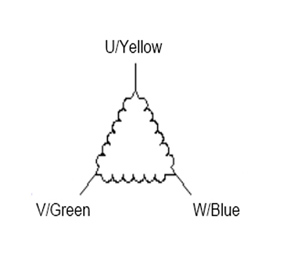

Wiring Diagram

Tips: Differences between unipolar and bipolar stepper motors

Bipolar stepper motor indicates the stepper motor with 2 coils and 4 lines. The current can flow in forward and reverse direction in two coils, so called bipolarity.
Unipolar stepper motor indicates the stepper motor with 2 coils and 5 or 6 lines. That is, one tap is increased in the middle of one coil. 5 lines can be seen as 6 ones. The two intermediate line of two coils can be connected. For there is tap in the middle of one coil, the current can flow towards different direction along the half way in one coil, but half of the motor coil is just used.
Bipolar motor features high application efficiency for the current flows in the forward and reverse directions of one coil. As for the unipolar stepper motor, the efficiency is low for half of coil is just used with most of the time. However, in terms of strict cost requirement, the unipolar motor is widely applied.

Stepper Motors vs. Servo Motors: Quick Comparison

In this video, stepper motors and servo motors are compared in different aspects.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Stepper Motor Wiring

In this video, the process of stepper motor wiring is introduced to you. The stepper motor driver can accept NPN or PNP line pulse signals. If the driving pulse is 12V, a 1kΩ resistor is required in series. If it is 24V, a 2kΩ resistor is required.

VFD Two-Wire Control Wiring with Push Button for Forward Motor
