    Diaphragm Valve VS. Ball Valve

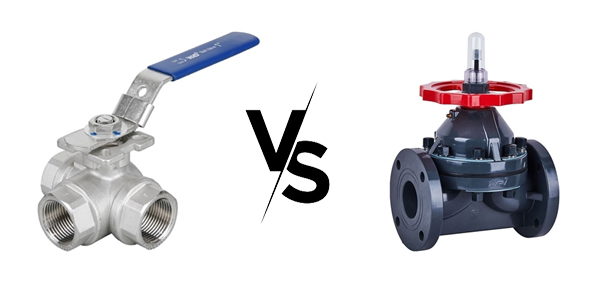

    Diaphragm valves and ball valves are two common types of valves in the industrial field, and they play an important role in fluid control and regulation. Both have their characteristics and are suitable for different working conditions and requirements. In the following ATO store will make a detailed comparison between diaphragm valves and ball valves to better understand the differences between diaphragm valves and ball valves.

    Structure and Working Principle

    A diaphragm valve is a valve that controls the flow of fluid through a flexible diaphragm. The diaphragm valve is a rubber diaphragm instead of a ball, with a valve body on each side of the diaphragm, and the switch is realized by compressing the diaphragm. Its basic structure includes a valve body, valve cover, diaphragm, and valve stem. When the valve is closed, the diaphragm is pressed against the bottom of the valve body, preventing fluid from passing through. When the valve opens, the stem lifts and the diaphragm deforms, allowing fluid to flow through. This design effectively isolates the valve body from the fluid and is suitable for applications with strict requirements for the medium, such as chemical, biopharmaceuticals, etc.

    The ball valve is composed of the valve body, ball, stem, seat, etc. The ball valve is a kind of valve that controls the flow of fluid by rotating the ball. Its basic structure includes a valve body, ball, stem, and operating lever. There is a hole on the top of the sphere, when the hole is 90 degrees with the direction of the fluid, the sphere and the valve seat closely fit, preventing the flow of fluid, and the valve is closed. When the hole is 180 degrees from the direction of the fluid, the valve is open, and the fluid can pass freely by rotating the ball. Ball valves are commonly used in some of the requirements of rapid cut-off fluid occasions, such as oil, natural gas, and so on.

    Diaphragm Valve Advantages and Disadvantages

    1. Good sealing Performance: The Diaphragm valve adopts a flexible diaphragm, which has superior sealing performance and can effectively prevent fluid leakage.
    2. Suitable for Fragile Media: Due to the working principle of the diaphragm valve, it is suitable for fragile and volatile media, and will not cause damage to the medium.
    3. Zero Leakage Design: The structure of the diaphragm valve gives it the potential for zero leakage, making it suitable for applications with high environmental and safety requirements.
    4. Fluid Resistance: Due to the presence of the diaphragm, the fluid will be subject to a certain resistance when passing through, resulting in a relatively large fluid pressure drop.
    5. Not Applicable to Large Flow Occasions: The structure of the diaphragm valve restricts its ability to pass fluid, and it does not apply to large flow conditions.

    Diaphragm valve vs ball valve

    Ball Valve Advantages and Disadvantages

    1. Rapid Opening and Closing: The structure of the ball valve is simple, and the rotation switch is quickly, suitable for the need to quickly cut off the fluid occasions.
    2. Low Fluid Resistance: Due to the smooth surface of the ball, the fluid through the resistance is relatively small, suitable for large flow conditions.
    3. Wide Applicability: Ball valves are suitable for a variety of media, including gases, liquids, etc., and have a strong generality.
    4. Sealing Performance is Relatively Poor: Because the seal between the ball and the valve seat depends on the surface of the fit, compared with the diaphragm valve, the ball valve in the sealing performance may be slightly inferior.
    5. Not Suitable for Volatile Media: For volatile media, ball valves may not be as suitable as diaphragm valves.

    Comparison and Selection

    Diaphragm valves are suitable for strict requirements for the medium, and do not allow contamination of the occasion, especially for the fragile, volatile media have advantages.
    Diaphragm valve is suitable for small flow, the resistance requirements of relatively small occasions. Diaphragm valve has excellent sealing performance, suitable for zero leakage requirements of the occasion.

    Ball valves are suitable for general media, for volatile requirements are not demanding occasions, as well as the need to quickly cut off the fluid applications. Ball valves are suitable for high flow, and need to quickly cut off the fluid occasions. Ball valve sealing performance is better, but relative to the diaphragm valve is slightly inferior, suitable for general sealing performance requirements of the occasion.

    Application Areas

    • Diaphragm Valves: Mainly used in the chemical industry, biopharmaceuticals, and other strict requirements of the media occasions.
    • Ball Valves: Widely used in oil, natural gas, water treatment, and other industrial fields.

    Diaphragm valves and ball valves have obvious differences in application areas. Diaphragm valves are mainly used in the field of extremely strict requirements on the medium, such as chemical, biopharmaceuticals, etc., their excellent sealing performance and zero-leakage design make them an ideal choice for handling fragile, volatile media. Because diaphragm valves can effectively isolate the medium from the valve body and reduce the risk of contamination, they are widely used in environments where the purity and safety of the medium are extremely demanding.

    On the contrary, the wide applicability of ball valves makes them mainly found in industrial fields such as oil, natural gas, and water treatment. Known for their simple construction, fast opening and closing characteristics, and adaptability to large flow rates, ball valves are commonly used where rapid shutoff of fluids is required. The performance and versatility of ball valves make them a common choice for fluid control in general media requirements.

    Other Differences

    In addition to the above differences in structure, principle, and application scenarios, there are other differences between ball valves and diaphragm valves. For example, in terms of maintenance, ball valves are easy to maintain, while diaphragm valves require diaphragm replacement. In terms of price, ball valves are relatively cheap, while diaphragm valves are relatively expensive.

    To summarize, ball valves and diaphragm valves are commonly used valves, but their structure, principle, and application scenarios are different. Diaphragm valves and ball valves each have a series of advantages and disadvantages, and the selection of the appropriate valve should be based on specific working conditions and needs. In practical application, it is necessary to consider the nature of the medium, flow requirements, sealing performance, and other factors to ensure the stable operation and long-term reliability of the valve. When selecting the valve, it is necessary to combine it with specific scenes to ensure that the product can meet their needs.
