Double 5 Digit Display Controller for Load Cells

Write a review

$258.99

Economical price double 5 digital display controller for load cells, force sensors and weighing sensors, available in 4-20mA, 0-10mA, 0-20mA, 1-5V, 0-5V, RS232, RS485 transmitting signal output. This digital panel meter can display gross, net, peak and valley value alternately.

Output Signal *
Communication Port *
Power Supply *

SKU: ATO-DDC-CHB6F

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

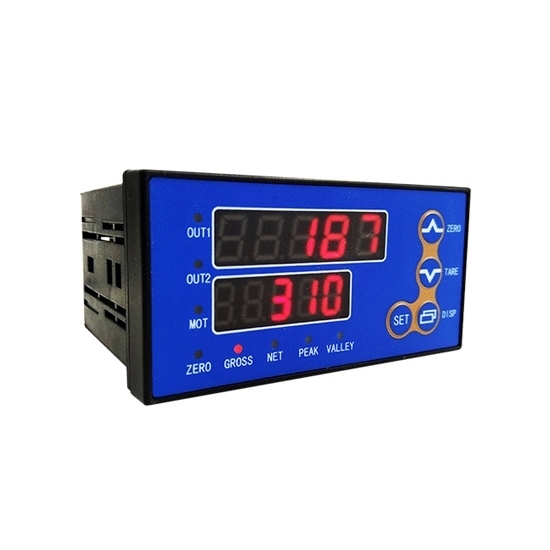

ATO double 5 digit display controller is a digital panel meter designed to control and drive a 5 digit display unit, which can be used with load cells, force sensors and weighing sensors.

Specification

Basic Parameters	Model		ATO-DDC-CHB6F
	Display Method		Double 5 Digit
	Voltage	V0	100~240V AC 50/60Hz
		V1	10~24V AC 50/60Hz, 10~24V DC
	Power Consumption	V0	Below 10W
		V1	AC: Below 6VA; DC: Below 5W
	Allowable Voltage Range		90%~110% of Voltage
	Insulation Resistance		≥100MΩ
	Dielectric Strength		2000V AC
	Anti-Interference		IEC61000-4-2 (Electrostatic Discharge), Level III
			IEC61000-4-4 (Electrical Fast Transient Burst), Level III
			IEC61000-4-5 (Surge), Level III
	Protection Grade		IP65
	Operating Environment	Ambient Temperature	-10~50℃ (Storage: -25~65℃)
		Environmental Humidity	35~85%RH, No Condensation
		Installation Location	Indoors, Height <2000m
	Comparison Output		2 points OC Gate Output, 100mA (Max)
Input Parameters	Sensor Power Supply	P1	DC 10V±2%, 200mA (Max)
		P2	DC 5V±2%, 100mA (Max)
	Input Impedance		＞10MΩ
	Conversion Method		Signal-Delta
	Measurement & Control Speed		240, 480, 960, 1920 times/second
	Nonlinearity		±0.05%F·S (Measurement & Control: 15bps)
	Gain Drift		<10ppm/℃
	Maximum Display Accuracy		1/100000
	Input Signal		Proportional Measurement, Connected to 4-Wire Strain Sensor
	Contact Input		1 External Switch Input
Optional Parameters	Analog Output	M1	Current Output 4-20mA, 0-10mA, 0-20mA
		M2	Voltage Output 1-5V, 0-5V
		M3	Voltage Output 0-10V
	Communication Interface	R1	RS232 Interface, Modbus-RTU and TC ASCⅡ Protocol
		R2	RS485 Interface, Modbus-RTU and TC ASCⅡ Protocol

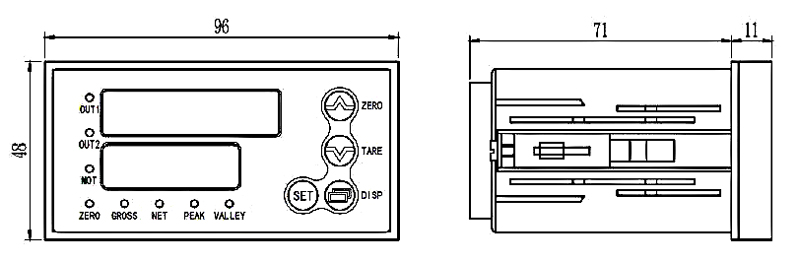

Dimension (Unit: mm)

Double 5 digit display controller dimension

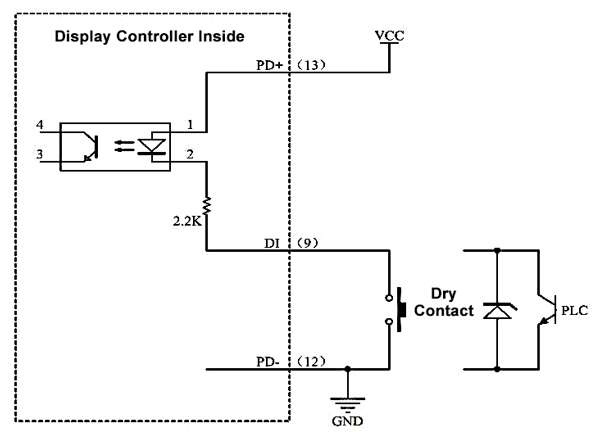

Switch Input Wiring Diagram

Double 5 digit display controller switch input wiring diagram

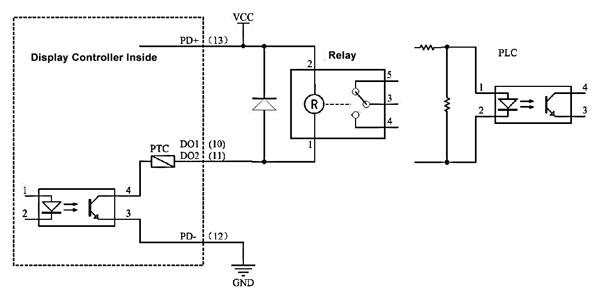

Switch Output Wiring Diagram

Double 5 digit display controller switch output wiring diagram

Tips: What is a double 5 digit display controller used for?

A double 5 digit display controller is a specialized electronic device used primarily for load cell applications. Load cells are sensors that measure force or weight, and these controllers provide a convenient way to monitor and display the measurement data. The double 5 digit description typically means that the controller has two separate displays, each with the capacity to show five digits, providing a high level of precision.

These display controllers are essential in various industries, including manufacturing, logistics, and agriculture, where accurate weight measurements are critical. They typically feature user-friendly interfaces and options for calibration and data processing. Users can configure parameters, set alarms, and access recorded data. This type of controller is often integrated into larger systems for automated process control or inventory management, ensuring efficient and reliable operation by providing real-time load data in an easily readable format.
