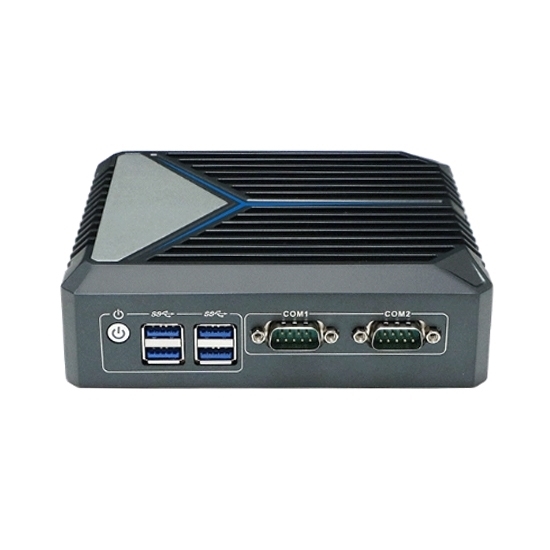

    Industrial Fanless Embedded PC, Intel N100, Dual 2.5G LAN, Dual HDMI

    5 out of 5 based on 1 reviews | Write a review
    $620.87
    Industrial fanless PC on sale, featuring a rugged all-aluminum alloy housing and an Intel Alder Lake-N N100 quad-core processor with up to 3.4GHz turbo frequency. Supports up to 16GB DDR4 3200MHz SODIMM memory, dual Intel i226-V 2.5GbE LAN ports, and dual HDMI outputs for efficient multi-display connectivity. Fanless design ensures silent operation for industrial automation.
    *
    *
    *
    *
    *
    SKU: ATO-IPC-N1321
    Availability: In stock
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Mini industrial PC combines a fanless structure with three-sided cooling fins for efficient heat dissipation, low-noise operation, and enhanced dust and water resistance. A high-performance processor, rich I/O connectivity, dual HDMI displays, and support for Win10, Win11, and Linux provide reliable performance for industrial and embedded applications.

    Specification

    Model ATO-Nano-N1321
    Color Metal grey (colors can be customized)

    Material High quality all aluminium alloy
    Processor Intel Alder Lake-N N100 (4 Core 4 threads, Turbo 3.4 GHz)
    CPU Architecture Alder Lake-N
    Memory 1*DDR4 3200MHz SODIMM memory slot, Max.16 GB
    BIOS AMIUEFI BIOS
    Display Chip Intel(R) UHD Graphics
    Display Port 2*HDMI , Resolution:4096x2160 @60Hz
    Front I/O 1*Power button,3*USB3.1,1*USB2.0,2*COM RS232
    Rear I/O 1*DC,2*HDMI,2*USB2.0,2*RJ45 Lans 1*Mic&Audio, 1*SIM card slot
    Expansion Slot Support 1*M.2 2280 M-key slot (SATA & PCIE3.0X1 NVME)
    Support 1*M.2 2230 E-key slot (WiFi & BT)
    Support 1*MINI PCIE slot (USB2.0), External SIM card slot
    Expandable interface (standard doesn't none): 8-way GPIO
    Network 2*Intel i226-V 2.5G Lan
    Storage 1*M.2 2280 slot, Onboard 1*2.5 inch HDD/SSD
    Input Voltage DC 12V
    Other Function Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255),TPM2.0 security encryption
    Work Temp 0°C~+40°C (business HDD), -0°C~+60°C (industrial SSD), Surface air flow
    Work Humidity 0%~95% Non-condensing
    Application Industrial automation, loT, edge computing, machine vision, etc.
    Dimension 150*126.5*45 mm
    Weight 0.84 kg


    Feature

    • Intel Alder Lake-N N100 Processor: Embedded industrial PC delivers efficient computing performance with an Intel Alder Lake-N N100 quad-core processor and up to 3.4GHz turbo frequency.
    • Fanless Aluminum Alloy Design: Rugged all-aluminum enclosure with efficient heat dissipation for silent and reliable 24/7 operation.
    • Dual 4K HDMI Outputs: The industrial PC supports simultaneous dual-display applications with resolutions up to 4096×2160 @ 60Hz.
    • High-Speed 2.5GbE Networking: Dual Intel i226-V 2.5G LAN ports provide fast and stable network connectivity.
    • Flexible Expansion Options: Industrial fanless embedded PC supports M.2 NVMe/SATA SSD, WiFi/Bluetooth modules, Mini PCIe expansion, and optional GPIO interfaces.
    • Rich Industrial I/O Interfaces: Multiple USB ports, dual RS232 serial ports, audio interface, SIM card slot, and DC power input for versatile device integration.
    • Advanced System Functions: Industrial fanless embedded PC supports Wake-on-LAN, PXE boot, scheduled startup, watchdog, and TPM 2.0 security encryption.
    • Multi-OS Compatibility: Compatible with Windows 10, Windows 11, and Linux for flexible industrial deployment.
    • Compact Embedded Structure: Space-saving design ideal for industrial automation, edge computing, IoT, and machine vision applications.

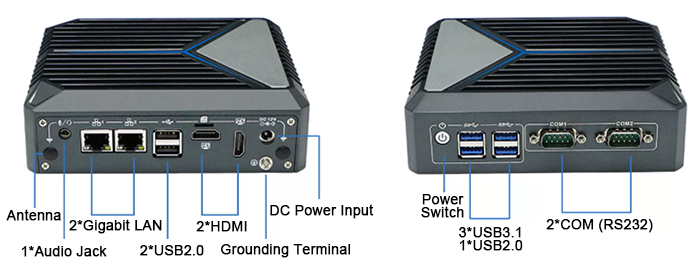

    Detail

    Embedded industrial PC fanless detail

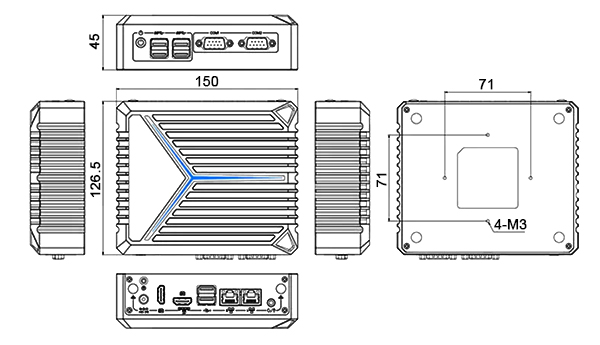

    Size (unit: mm)

    Embedded industrial PC fanless size

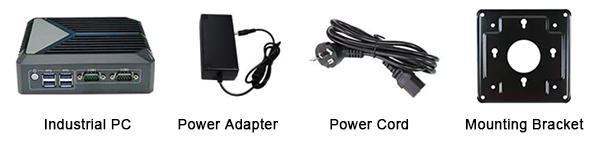

    Package Includes

    Embedded industrial pc fanless package

    Note: AU plug included by default. For other plug standards, please contact us.

    5 tips for selecting an industrial PC

    1. Industrial PCs usually need to be installed in racks or other narrow spaces, so first select the product specifications according to the size of field installations.
    2. According to the feasible installation method on site, it can be divided into wall-mounted type, rack type, desktop and embedded. Meanwhile, it should also consider the outlet mode to avoid the difficulty of wiring, such as the front line and the back line.
    3. Environmental requirements. The industrial PC is different from the ordinary civil computer because it can be used in harsh environments, such as ultra-high or ultra-low temperature, high dust, high vibration etc.. Therefore, you should carefully check whether its parameters can meet the requirements of your application environment when selecting an industrial PC.
    4. Technical parameters. Like choosing a personal computer, you should also look at the configuration: The CPU, storage, memory, software, and so on. When selecting these parameters, choose according to the application requirements of industrial PC.
    5. Scalability. It is necessary to consider which type of interface is required for the IPC, and whether there are RS-232/485, CPCI, USB, Profinet and other types of interfaces.
