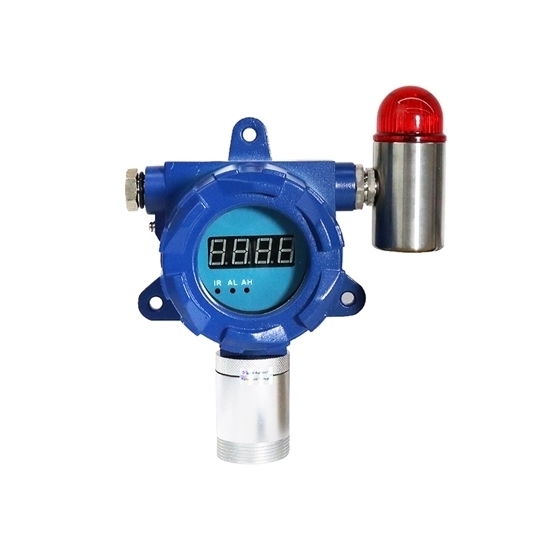

Fixed Phosphine (PH3) Gas Detector, 0 to 100/1000/3000 ppm

The economical and affordable fixed PH₃ phosphine gas detector adopts high-quality sensors and advanced micro-processing technology. The operating temperature is -20~+50℃. It uses gas diffusion to detect whether there are toxic gases in the air. It can work continuously for a long time. The working voltage is 12-30V DC, it can detect 0-100/1000/3000 ppm, the gas leak detector can display data and alarm reminders on the screen, and the response speed is fast.

Specification

• Model: GD300-PH3
• Detected Gas: PH₃ Sulfur dioxide
• Measure Range: 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-3000ppm
• Resolution: 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100ppm), 1ppm (0-500/1000/2000/3000ppm)
• Install Method: Wall-mounted, piping type, flow-type
• Output Signal (Optional): 1. 4-20mA and RS485, 2. Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
• Precision: ≤±3%F.S. (higher precision is available)
• Zero shift: ≤±1%（F.S./year）
• Display: 4 digits Nixie tube display.
• Connection mode: G1/2 is the inlet and outlet for power and signal lines; Pipe-mounted type: The installation thread size of the instrument is M45*P2.0
• Thread Size: M45*2mm
• Temperature: -20℃ ~ 50℃
• Humidity: 0-95%RH (non-condensing)
• Explosion-Proof: Ex dⅡCT6
• Degree of Protection: IP65
• Alarm Mode: Sound, light
• Material: Case: Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
• Power: 12-36V DC
• Dimensions: 180×150×90mm
• Weight: 1.6kg
• Approval: CE, CNEX explosion proof certificate, CMC (China Metrology Certification)
• Warranty: 12 months

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Features

Online monitoring with sound/light alarm

• 24h continuously monitoring, data will real-time display.
• High/low alarm with sound and light, sound >90dB, alarm point is settable.

Non-contacted control the device

• With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.

Iversified output signals

• 4-20mA current signal output, compatible with different kinds of controllers.
• RS485 digital signal output.
• Relay signal output, to turn on/off ventilator, generators or other external devices.

Variety of installation methods

• Wall mounted type, installed on the wall directly, real time monitoring.
• Piping type, installed on the pipeline, monitoring the gas concentration inside.
• Flow type, connected with external sampling pump and tube, measure the gas concentration in enclosed space.

Data transmission

• Can be installed with computer software, to transmit the data to computer, workers can remote monitor the data.

High quality case

• Die-cast aluminum case, strong and durable; Stainless steel case is available for choose, meeting the demand of different situations.
• IP65 protection degree, water-proof, dust-proof, explosion-proof

Application

Tips: How Does a Fixed Phosphine (PH3) Gas Detector Work?

• Gas Collection: The primary task of a gas detector is to collect air samples from the surrounding environment. This is usually accomplished through an air inlet or sampling line.
• Gas Sensor: The gas leak detector has a built-in phosphine gas sensor, which usually uses chemical sensing elements, such as semiconductor sensors, electrochemical sensors, or infrared sensors. These gas sensors work by reacting to phosphine molecules, causing changes in electrical resistance, electrical current, or optical signals.
• Signal Processing: The gas sensor generates an electrical signal that correlates to the detected phosphine concentration. This signal is fed into a built-in microprocessor or control unit for processing.
• Data Analysis: A microprocessor analyzes the signal generated by the sensor and converts it into a concentration reading. If the concentration exceeds a preset safety threshold, the gas monitor triggers an gas alarm.
• Alarm Systems: Fixed phosphine gas detectors are often equipped with audible, light, or digital interface alarm systems, as well as features that can transmit information to a monitoring room or automatically shut down the device. This helps to detect dangers early and take necessary measures.
• Maintenance and Calibration: To ensure the accuracy and reliability of your gas detector for home, regular maintenance and calibration are required. This includes replacing or cleaning sensor elements, verifying gas detector performance, and calibrating measurements.
