    Laser Sensor, Distance/Height Measurement, M5, 100mm/50m

    5 out of 5 based on 1 reviews | Write a review
    Low cost M5 laser sensor adopts diffuse reflection or through beam detection mode, has 304 stainless steel detection head with thread size M5*0.5mm, laser spot size 1mm, protection class IP67, can be used for distance, height, displacement, position, speed and level measurement. The M5 diffuse reflection laser sensor has 100mm detection range, while the through beam laser sensor has the detection range of 50m.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Laser sensor with M5*0.5mm metal detection head, 1mm spot size, diffuse reflection/through beam detection mode and NPN/PNP NO/NC output mode for selection.


    Model ATO-LASES-M5
    Shipping weight 2kg
    Thread size M5*0.5mm
    Detection of spot size 1mm
    Detection mode * Diffuse reflection type, through beam type
    Detection range Diffuse reflection type: Sn=100mm, Sn=130mm; through beam type: Sn=50m
    Light source Infrared ray LED (880nm)
    The laser beam is invisible. The laser spot is visible.
    Output mode * NPN NO, NPN NC, PNP NO, PNP NC
    Power supply 10-30VDC
    No-load current <9mA
    Maximum load current 150mA
    Leakage current <0.01mA
    Voltage drop <1V
    Switching frequency 120Hz
    Response time 0.1ms
    Switching hysteresis <15% (sr)
    Repeat accuracy <1.0% (sr)
    Protection class IP67
    Environment humidity 35-95%
    Operating temperature -5~+50℃ (23~122℉)
    Temperature drift <10% (sr)
    Short circuit protection Yes
    Indicator light Yes
    Housing material 304 stainless steel (detector), plastic (connector protective sleeve)
    Connection method Direct lead wire
    Cable length 2m

    Note: The detection range of diffuse reflection laser sensor can be adjusted by the knob on the box (Clockwise rotation for adding distance, anticlockwise rotation for reducing distance). The detection range of through beam laser sensor can be adjusted by the distance of projector and receiver.
    Dimension (diffuse reflection type, unit: mm):

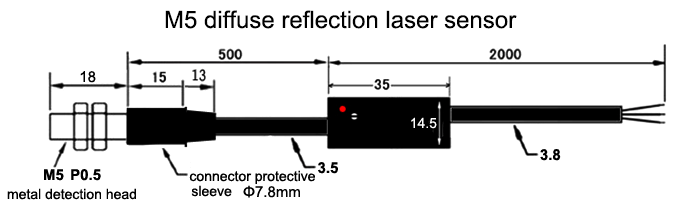

    Diffuse reflection laser sensor M5 dimensional drawing
    Wiring diagram:
    Diffuse reflection/through beam M5 laser sensor  wiring diagram

    Tips: Laser sensor for traffic flow monitoring
    The laser sensor is generally fixed on the gantry of the high-speed or important intersection. The laser emission and reception are perpendicular to the ground, aiming at the middle of a lane. When there are vehicles passing through, the laser sensor can output the relative change value of the measured distance value in real time to delineate the outline of the vehicle under test. This measurement method generally uses a ranging range of less than 30 meters, and requires a relatively high measuring rate of laser ranging. It is generally required that the measurement rate can reach 100 Hz. This can achieve good results for monitoring in important road sections. The laser sensor can distinguish various types of vehicles, and the sampling rate for scanning the height of the vehicle body can reach 10 cm per point (at 40Km/h, the sampling rate is 11 cm per point). It can distinguish the height limit, length limit and vehicle type of traffic flow in real time, and can quickly output the results.
