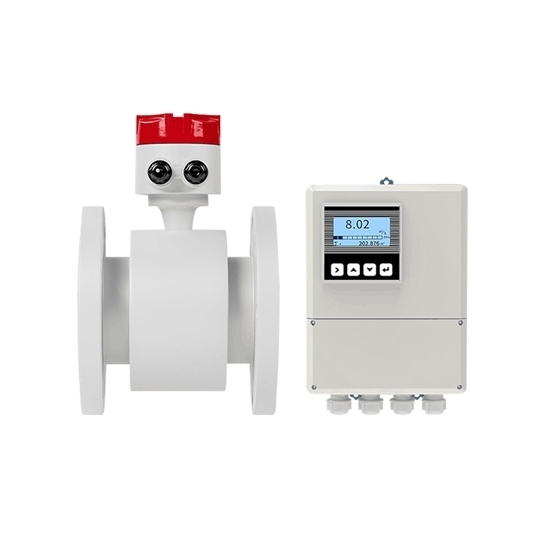

Magnetic Water Flow Meter, Split Type PTFE Lining, DN15-DN1000

$1,098.87

Magnetic split water flow meter for sale, with PTFE lining, suitable for acids, alkalis, solvents, oils, fuels, and various chemicals. Many calibers available DN15-DN1000. Smart flow meter can display instantaneous flow rate, cumulative flow rate. The smart water flow meter widely used in chemical industry, chemical fiber, metallurgy, fertilizer, paper making.

Nominal Diameter *

SKU: ATO-FLOW-MWFM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Magnetic split water flow meter with PTFE lining, ideal for acids, alkalis, solvents, oils, fuels, and chemicals. Available in sizes DN15 to DN1000. Water flow meter widely used in chemical industry, chemical fiber, metallurgy, fertilizer, paper making, water supply and drainage, sewage treatment and other industrial sectors and agricultural irrigation water dosage of conductive liquid flow measurement and automatic control of the production process.

Specification

Model	ATO-LDG-MIK
Caliber	DN15-DN1000
Flange	Standard Carbon Steel (Optional stainless steel flange, contact customer service)
Rated Pressure Rating	DN15-DN50, PN<4.0MPa
	DN65-DN150, PN<1.6MPa
	DN200-DN250, PN<1.0MPa
	High pressure can be customized
Protection Class	IP68/IP67 (Contact customer service)
Medium Temperature	Sensor: -25~180℃; Converter: -10~80℃
Buriability	Less than 5m (IP68 protected split sensors only)
Depth of Immersion	Less than 3m (IP68 protected split sensors only)
Sensor Cables	The standard cable is 10m; other cables are recommended to be customized to a maximum length of 20m.
Communication	RS485
Outputs	Current (4-20mA), pulse, frequency, status switching
Communication Functions	Empty tube identification, electrode contamination
Graphic Display	Monochrome LCD with white backlight; size: 128*64 pixels
Display Functions	2 measured value screens (measurement, status, etc.)
Maximum Measurement Error	±0.3% of measured value (flow rate 1m/s); ±2mm/s (flow rate <1m/s)
Repeatability	0.002
Operating Environment	Temperature: -10°C to 55°C (for flowmeter sensor section: -10°C to 60°C)
Operating Environment	Storage Temperature: -40°C to 65°C
Electrical Conductivity	Water: Minimum 20 μS/cm (for water conductive measurement)
Electrical Conductivity	Others: Minimum 5 μS/cm (for other conductivity measurements)
Material	Sensor: Ferrite, Standard stainless steel
Power Supply	Voltage: 100-240VAC, 50/60Hz, 22VDC to 26VDC
	Maximum Power: 15VA
	Power Cable: 0.5mm² Cu/AWG20
Output	Output Range: 4-20mA
	Measurement Range: 20mA
	Lower Limit: 4mA
	Power Supply: 24VDC
	Load: < 750Ω
Pulse and Frequency Output	Pulse width: 0.25ms to 100ms
	Pulse frequency: 50% (max flow rate 5L)
	Frequency range: 5000 cps

Feature

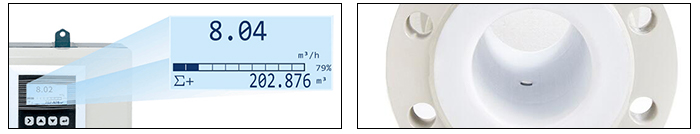

Magnetic water flow meter split type feature

Instantaneous and Cumulative Flow Display: The smart water flow meter provides both instantaneous and cumulative flow measurements for real-time monitoring and total volume tracking.
Multiple Flow Units Switchable: Supports various flow units like liters, cubic meters, etc., offering flexibility for different measurement requirements.
Bidirectional Flow Measurement: This magnetic water flow meter allows bidirectional flow measurement without installation concerns, ensuring reliable data collection for both flow directions.
Standard 4-20 mA Output: The digital water flow meter comes with a built-in 4-20 mA output for easy data transmission to external devices or control systems.
RS485 Communication with Modbus Protocol: The smart flow meter supports RS485 communication with Modbus for seamless integration with industrial control systems.
IP65 Waterproof and Anti-corrosion Design: The magnetic water flow meter features durable PTFE lining and a three-proof design (waterproof, anti-fall, anti-leakage) for enhanced durability and reliability in harsh environments.
Enhanced Usability: The design and functionality of this smart water flow meter are optimized to improve overall usability and operational efficiency in various industrial applications.

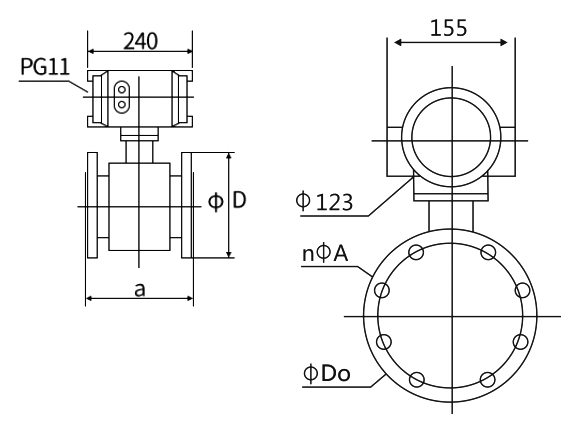

Dimension (Unit:mm)

Magnetic water flow meter split type dimension

DN	a	D	Do	*nA**
10	200	90	60	4*14
15	200	95	65	4*14
20	200	105	75	4*14
25	200	115	85	4*14
32	200	140	100	4*18
40	200	150	110	4*18
50	200	165	125	4*18
65	200	185	145	8*18
80	200	200	160	8*18
100	250	220	180	8*18
125	250	250	210	8*18
150	300	285	240	8*22
200	350	340	295	12*22
250	450	405	355	12*22

Flow Chart

Calibre DN	Flow Rate (m/s)
	0.1	0.2	0.4	0.5	1	10	12	15
	Volume (m³/s)
DN10	0.02827	0.0565	0.1131	0.1414	0.2827	2.827	3.39	4.24
DN15	0.0636	0.127	0.25	0.318	0.636	6.362	7.632	9.54
DN20	0.131	0.226	0.45	0.566	1.131	11.31	13.572	16.965
DN25	0.176	0.35	0.71	0.8835	1.767	17.67	21.204	26.965
DN32	0.2895	0.58	1.16	1.448	2.895	28.95	34.74	43.425
DN40	0.4525	0.9	1.81	2.62	4.524	45.24	54.208	67.86
DN50	0.707	1.414	2.83	3.535	7.069	70.69	84.36	106
DN65	1.195	2.39	4.78	5.973	11.946	119.5	143.35	179.2
DN80	1.81	3.62	7.24	9.048	18.1	181	217.2	217.2
DN100	2.83	5.65	11.31	14.14	28.27	282.7	339.24	404.05
DN125	4.42	8.84	17.67	22.09	44.18	441.5	530.16	662.7
DN150	6.36	12.7	25.5	31.81	63.62	636.2	763.44	954.3
DN200	11.3	22.6	45.2	45.55	113.1	1131	1357.2	1696.5
DN250	17.7	35.4	70.7	88.36	176.7	1767	2110.4	2650.5

Flow Rate Characteristic Curve

Flow rate characteristic curve

Application

Integral magnetic flow meter application

Tips: What are the characteristics of the four different linings - chloroprene, polyurethane, JPEFE and F46?

Material	Main Characteristics	Maximum Operating Temperature	Applications
Neoprene	Excellent elasticity, high tensile strength, good wear resistance. Resistant to general low-concentration acids, alkalis, salts, and oxidation.	80°C (Custom orders can reach 120°C)	Suitable for water, sewage, weakly abrasive slurries, and mining slurries.
Polyurethane	Excellent abrasion resistance, but relatively poor resistance to acid, alkali, and salt.	70°C	Suitable for medium-strong abrasive slurries, coal, and mud.
JPEFE	Resists almost all chemicals, including sulfuric acid, hydrochloric acid, and oils. Suitable for high-temperature and high-speed fluids.	100°C	Suitable for corrosive chemicals and fluids in various industrial applications.
F46	Excellent resistance to oxidation and high-pressure resistance.	150°C (Custom orders can reach 150°C)	Primarily used in sanitary applications and for chemical fluids requiring high resistance.
