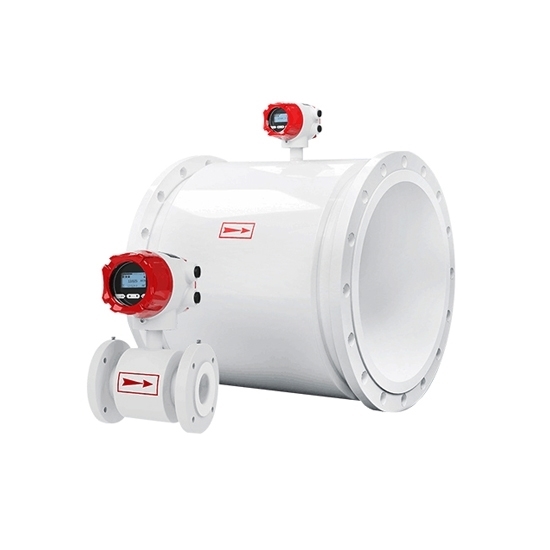

Magnetic Water Flow Meter, Integral Type, DN300-DN1000

Electromagnetic water flow meter with nominal calibers ranging from DN300 to DN600. It has a 4-20mA current output, operates on 24VDC, and is ideal for sewage and wastewater treatment. The flow meter supports input flow rates from 0.5m/s to 5m/s.

Specification

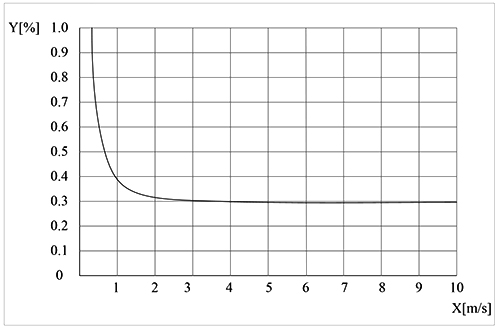

Flow Rate Characteristic Curve

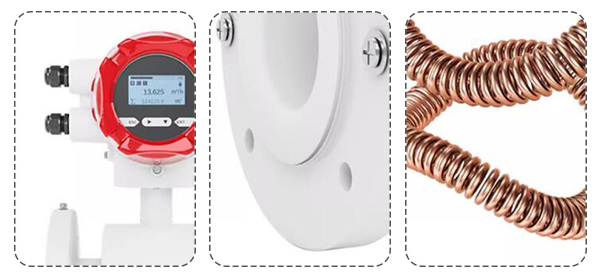

Feature

• Reliable Measurement: The flow meter utilizes advanced magnetic technology, ensuring precise and stable readings.
• Durable Structure: Equipped with a thickened structure for enhanced resistance against corrosion and water damage, ensuring long-lasting performance.
• Waterproof and Anti-Splash Design: The integral flow meter is water-resistant and splash-proof, perfect for tough environments.
• High-Accuracy Magnetic Field: Utilizes pure copper wire and advanced magnetic field technology, ensuring highly accurate and stable measurements.
• Compact and Space-Saving: Ideal for spaces with limited room, making it suitable for water treatment, chemical, and pharmaceutical industries.
• Wide Application Range: Applicable in various sectors like water supply, sewage systems, and pipeline projects.
• Multiple Sizes Available: Available in sizes from DN300, DN400, DN500 to DN1000 to fit different pipeline requirements.
• Integrated Design for Easy Setup: The integrated design allows for easy installation, saving space and reducing complexity.

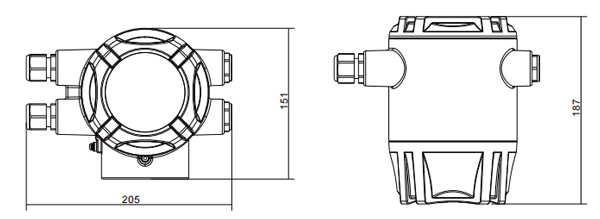

Dimension (Unit:mm)

Integral Type

Flow Characteristic Parameters

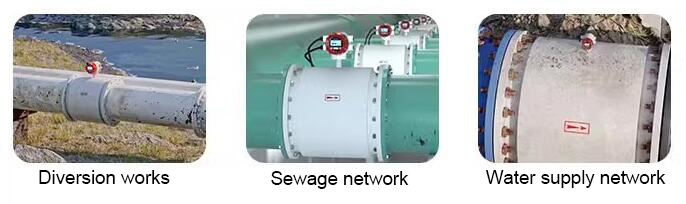

Application

Tips: What is the role of magnetic water flow meter composition?

The electromagnetic flowmeter is mainly composed of two main parts: the sensor and the converter, of which the sensor includes flange, lining, electrode, measuring tube, excitation coil, sensor shell and other parts; the converter includes internal circuit board and converter shell and other parts.

• Converter: Provide stable excitation current for the sensor, and at the same time amplify the induction potential obtained through the sensor into a standard electric signal or frequency signal, and at the same time display the real time signal. At the same time, it amplifies the induced electromotive force obtained through the sensor and converts it into standard electric signal or frequency signal, and at the same time, it displays the real-time flow rate and parameters. It is used for flow display, control and adjustment.
• Flange: Double side flanges for magnetic flow meters Used to connect with process pipeline.
• Lining: a complete layer of electrical insulation and corrosion-resistant material on the inside of the measuring pipe and the sealing surface of the flange.
  material.
• Electrodes: A pair of electrodes is installed on the wall of the measuring pipe perpendicular to the magnetic force line to detect the flow signal.
  The electrode material can be selected according to the corrosive properties of the measured medium. Another 1~2 grounding electrodes are installed for flow signal measurement.
  Another 1~2 grounding electrode is installed for flow signal measurement of grounding and anti-interference.
• Measuring tube: Measuring tube flowing through the measured medium. Measuring tube by the non-magnetic stainless steel and
  flange welded together and lined with an insulating liner.
• Excitation coil: The measuring tube is equipped with a set of coils at the top and bottom of the outer side of the measuring tube to generate the working magnetic field.
• Shell: Both play a role in protecting the instrument and sealing.
