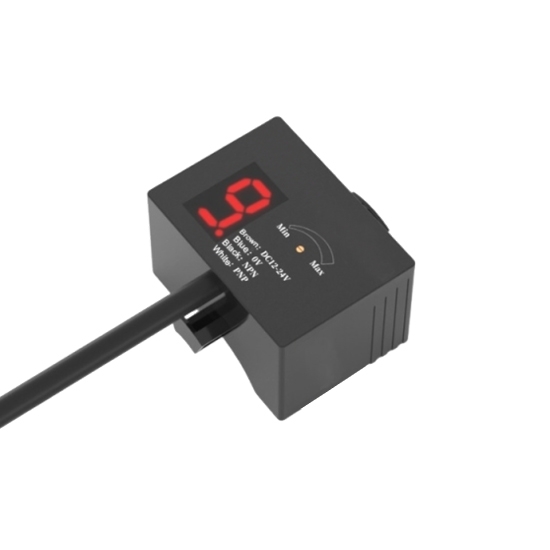

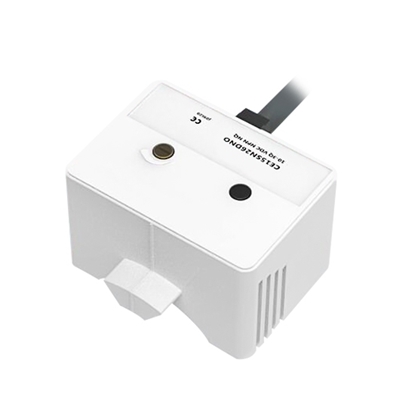

Non Contact Capacitive Liquid Level Sensor, NPN+PNP

This innovative liquid level sensor utilizes a non-contact capacitive sensing principle to detect liquid presence through the wall of a pipe, eliminating the need for direct contact with the fluid. capacitive level sensors ensures reliable and hygienic operation, making it suitable for diverse industrial and commercial applications. The non-contact level sensor combines precision engineering with a durable, compact housing, delivering consistent performance in challenging environments.

Specification

Feature

• Non-Contact Capacitive Detection: The capacitive level sensor operates by detecting changes in capacitance through the pipe wall, ensuring accurate and contamination-free liquid level sensing.
• Dual Output Flexibility: This capacitive water level sensor supports both NPN and PNP output configurations, providing versatility for integration with different types of PLCs and control systems.
• High Precision & Stability: Engineered for detection precision, stable performance, and strong anti-interference, it delivers reliable readings with a fast response time.
• Robust Construction: Featuring a sturdy and durable ABS plastic housing with an IP66 rating, capacitive fluid level sensor is built to withstand harsh industrial environments and offers excellent protection against dust and water jets.
• Easy Installation & Adjustment: The capacitive liquid level sensor is easily mounted on the external pipe wall. It features a multi-turn potentiometer and a clear digital display for precise and intuitive sensitivity adjustment and threshold setting.

Dimension (Unit: mm)

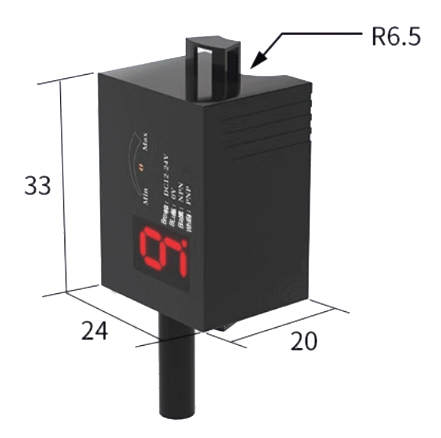

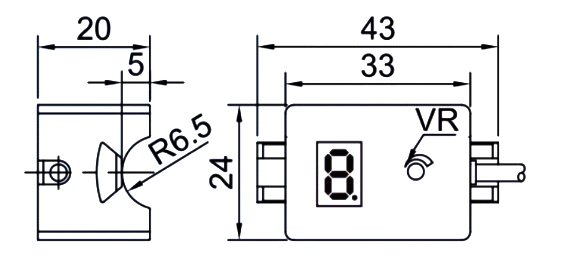

Non Contact Capacitive Liquid Level Sensor (Pipe Outer Diameter Range: Φ6-13mm)

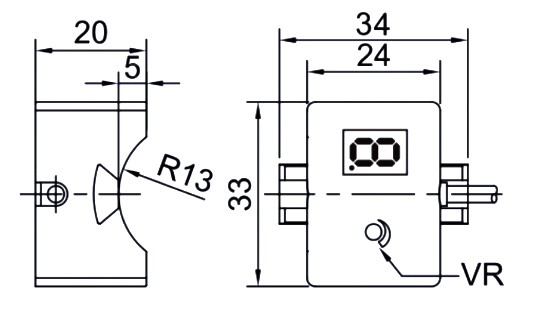

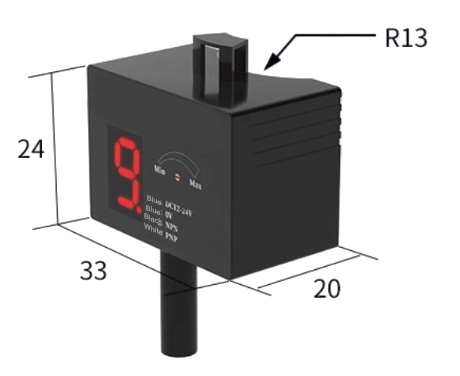

Non Contact Capacitive Liquid Level Sensor (Pipe Outer Diameter Range: Φ13-26mm)

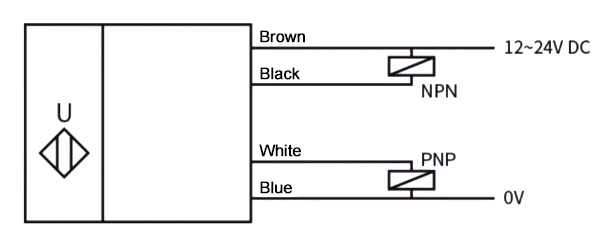

Wiring Diagram

4 Tips for Non Contact Capacitive Liquid Level Sensor

1. Output Configuration: Understand your control system's input type before installation. NPN outputs switch the signal line to 0V (sinking), while PNP outputs switch it to the supply voltage (sourcing).
2. Calibration for Empty State: For best results, always perform the initial setup (entering learning mode) when the pipe is empty to establish the correct baseline reference.
3. Mounting Surface: For consistent performance, ensure the capacitive level sensors is firmly mounted against a clean, dry, and smooth section of the pipe wall without gaps or obstructions.
4. Electrical Protection: Although the capacitive liquid level detection includes reverse polarity and short-circuit protection, always follow proper electrical wiring practices and use a stable power supply within the specified voltage range.
