Pressure Sensor for Air/Water/Oil, 4-20mA/0-5V/RS485 Output

5 out of 5 based on 7 reviews | Write a review

$119.68

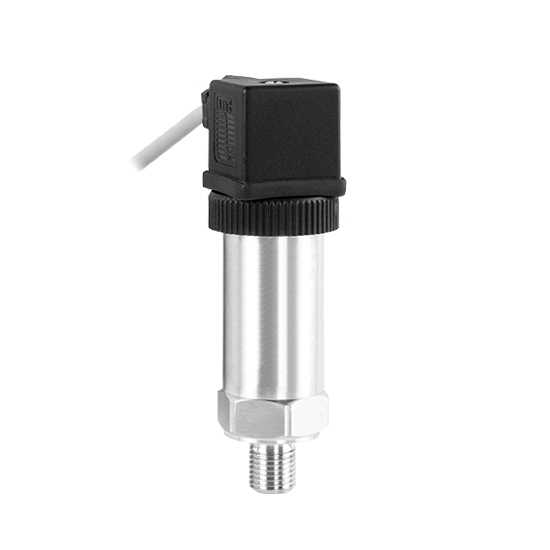

This series of pressure sensors use a high-performance silicon piezoresistive pressure core as core element. The internal ASICs convert the mV signal into a standard current (4-20mA/0-20mA), voltage (0-5V/1-5V/0-10V) or RS485 signal. Pressure sensor with stainless steel sealing structure has small size, light weight, high anti-vibration and anti-shock performance, measuring range -0.1~100MPa/ -1~1000bar/ -14~14503psi, medium temperature -40~+60℃ (-40~+140℉), for air/water/oil pressure measurement.

Measuring Range *
Output Signal *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Power Supply *
Pressure Type *
Electrical Connection *
Thread of Pressure Connection *

SKU: ATO-PRES-P300

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Pressure sensor for air/water/oil pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.

Application: Pressure sensor is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.

Features

Model: ATO-PRES-P300
Measuring Range: -0.1~100MPa (-1~1000bar/-14~14503psi)
Output Signal: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V, RS485
Accuracy: ±0.5%FS, ±0.3%FS, ±1%FS (when output signal is 0-5V or 0-10V)
Power Supply: DC 12V, DC 24V, DC 12-36V
Electrical Connection: DIN connector type, direct lead wire type, M12 circular connector type
Thread of Pressure Connection: G1/4, G1/2, 1/4NPT, 1/2NPT, M14*1.5, M20*1.5
Protection Class: IP65
Measuring Medium: Air, water, oil (non-explosion proof area)
Pressure Type: Gauge pressure (standard), contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)

Pressure sensor dimension drawing (unit: mm):

Pressure sensor wiring diagram:

Tips: Stability of pressure sensor
The ability of a pressure sensor to remain unchanged after using a certain time is called stability. In addition to the structure of pressure sensor, the main factors that affect the long-term stability of pressure sensor are the use environment of sensor. Therefore, to make the pressure sensor have good stability, the sensor must have strong adaptability to the environment.
Before selecting a pressure sensor, it is necessary to investigate its use environment, and select the appropriate sensor according to the specific use environment, or take appropriate measures to reduce the impact of the environment.
The stability of pressure sensor has a quantitative index, and it should be calibrated again before use to determine whether the performance of pressure sensor has changed.
In some situations where pressure sensors can be used for a long time and cannot be easily replaced or calibrated, the selected pressure sensor requires more stringent stability and should be able to stand the test for a long time.

Measuring range conversion table:

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503

Related videos for ATO pressure sensors:

How to install and wire a pressure sensor?

How to install a constant pressure water pump with digital pressure sensor?

Pressure sensor 4-20mA output wiring details

VFD Constant Pressure Water Supply System Wiring and Testing

The video shows a 4~20mA pressure sensor connected to an ATO VFD to form a constant pressure water supply system.
