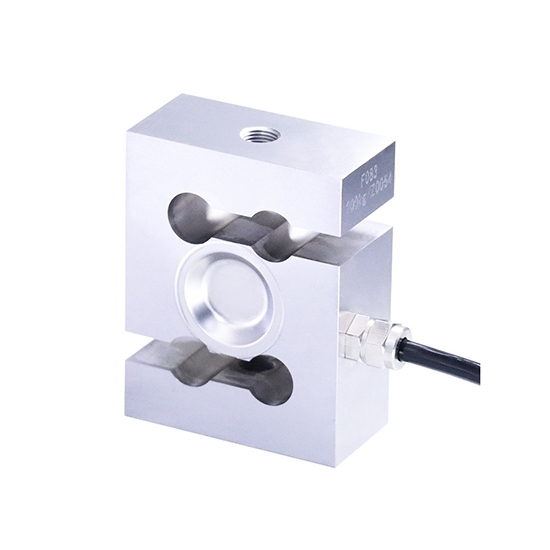

S Type Load Cell for Tension and Compression, Stainless Steel, 200kg-5 ton

5 out of 5 based on 1 reviews | Write a review

$153.96

High-quality S-type load cells for sale are used for tension and compression and are available in a variety of capacities from 200kg to 5 tons. Constructed of durable stainless steel with a sensitivity range of 2.0 to 3.0 ±10% mV/V and a response frequency of 1k Hz, it provides accurate measurements even in harsh conditions, making it a reliable and cost-effective choice for tension and compression measurements in industrial environments.

Capacity *
With Transmitter *
With Display Controller *

SKU: ATO-LC-TSH

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Good price S type load cell for tension and compression with high accuracy, repeatability and temperature sensitivity, with range 200kg/300kg/500kg/1 ton/2 ton/3 ton, operating voltage range 5-15V, high quality stainless steel for long term stability and extreme overload of 200%. Ideal for industrial and commercial use, this load cell is designed to withstand operating temperatures from -20°C to 80°C.

Specification

Model	ATO-DYTSH
Capacity	200kg/300kg/500kg/1 ton/2 ton/3 ton (optional)
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	ATO-DPM-DY800 (Click it to the controller page)
Output Sensitivity	2.0~3.0 ±10% mV/V
Zero Output	±1%F.S.
Non-linearity	0.03 %F.S.
Hysteresis	0.03 %F.S.
Repeatability	0.03 %F.S.
Creep	0.05 %F.S. (30 min)
Temperature Sensitivity Drift	0.03 %F.S./10°C
Zero Temperature Drift	0.05 %F.S./10°C
Response Frequency	1k Hz
Material	Stainless steel
Resistance	350 Ω
Insulation Resistance	≥5000 MΩ/100V DC
Operating Voltage	5~15 V
Operating Temperature Range	-20°C~80°C
Safety Overload	150 %R.C.
Limit Overload	200 %R.C.
Cable Wire Specification	φ5*6m
Ultimate Cable Pull	98 N

Dimension (unit: mm)

S type load cell dimension

Capacity	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
200kg-1 ton	M10*1	62	80	32.5	30
2 ton	M16*1.5	71	90	40	45
3 ton	M18*1.5	80	100	41.5	50
5 ton	M20*2	92	130	57.5	58

Force Diagram

S Type load cell force diagram

Application

S Type load cell application

Tips: What is the working principle of S-type load cell?

The s type load cell is based on the strain gauge measurement principle. When an external force is applied, the elastomer inside the load cell undergoes a slight deformation, and the strain gauges affixed to it are then stretched or compressed, resulting in a change in resistance. This change in resistance is converted into an electrical signal through a Wheatstone bridge and processed by an amplifier circuit and data acquisition system, ultimately outputting weight data proportional to the load.
