Shear Beam Load Cell, 1 ton/2 ton/5 ton/10 ton/20 ton to 30 ton

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Shear beam load cells have capacity range from 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton to 30 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	ATO-LCB-TJH-6C
Shipping weight	1.1~5kg
Capacity range *	1 ton~30 ton
Matched display controller	ATO-TY5DA3 (Click it to the controller page)
Matched transmitter	ATO-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.02~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃ (-4℉~+149℉)
Input impedance	750±15Ω
Output impedance	700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High-Quality 42CrMo Alloy Steel Construction: Made with durable 42CrMo alloy steel, known for its high strength, low deformation, and excellent fatigue resistance, ensuring long-lasting performance.
Wide Load Capacity Range: Available in capacities from 1 ton to 30 tons, making it suitable for various industrial applications.
Versatile Application: Ideal for use in weighing systems, load testing, and control systems across industries such as heavy equipment, water treatment, and material handling.
Excellent Stability: Features a bridge structure that ensures high stability and precision for accurate load measurement in demanding conditions.
Wide Compatibility: Perfect for truck scales, railway weighbridges, and other industrial scale systems, offering reliability and accuracy in diverse environments.

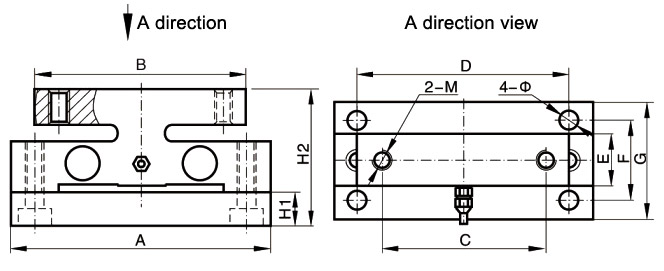

Shear beam load cell dimension (*bottom plate need to be purchased separately)

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H1	H2	Φ	M
1~5 ton	220	140	110	186	45	70	100	25	110	Φ13	M16
10 ton	240	180	120	192	50	128	180	41	134	Φ22	M20
20~30 ton	240	180	120	192	56	128	180	41	143	Φ22	M20

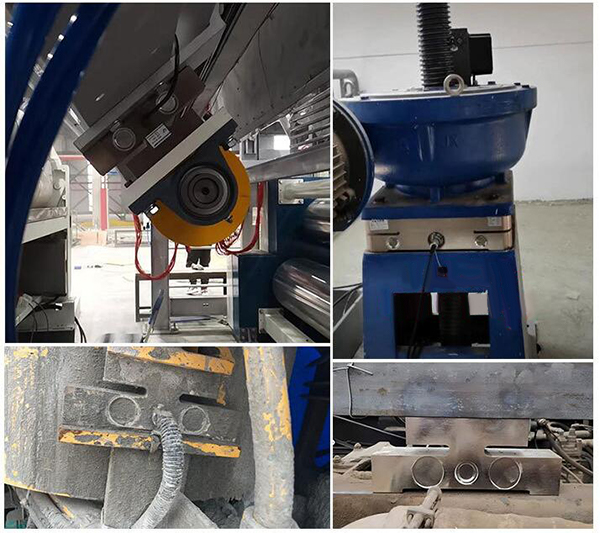

Application

Tips: What is a Shear Beam Load Cell?

A Shear Beam Load Cell is a type of load cell designed to measure shear force when weight or load is applied. It uses strain gauges to detect the deformation of a shear beam under load, converting this deformation into an electrical signal that can be measured to determine the force or weight.

Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells
Weighbridge load cells is a device used to measure force. It works by using a spring or other form of elastomer to withstand pressure. When an object is placed on the floor scale, it compresses the spring, thereby changing the spring's force. Deformation amount. This change in deformation can be converted into an electrical signal through a measuring device, which is then amplified and processed through a circuit to finally obtain the weight of the object. This type of equipment is usually used in industrial environments such as logistics, warehousing, construction, etc.

How to Make Your Load Cell Transmitter Work More Accurately

In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

Existing reviews of Shear Beam Load Cell, 1 ton/2 ton/5 ton/10 ton/20 ton to 30 ton

I'm wondering if your load cell is affected by magnetic fields?

I'm wondering if your load cell is affected by magnetic fields?

From: Tiffyy | Date: 30/12/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, the output voltage signal of the Load Cell will be affected by the magnetic field, it is proportional to strength of the magnetic field.

Shear beam load cell accessories

Does your shear beam load cell come with the wiring components? And does it include an amplifier with it?

From: Jersey | Date: 01/04/2021

Was this review helpful? Yes No (0/0)

ATO Responded

After purchasing one ATO shear beam load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4 -20mA. We provide both transmitter and digital panel meter, but needs to order separetly.
