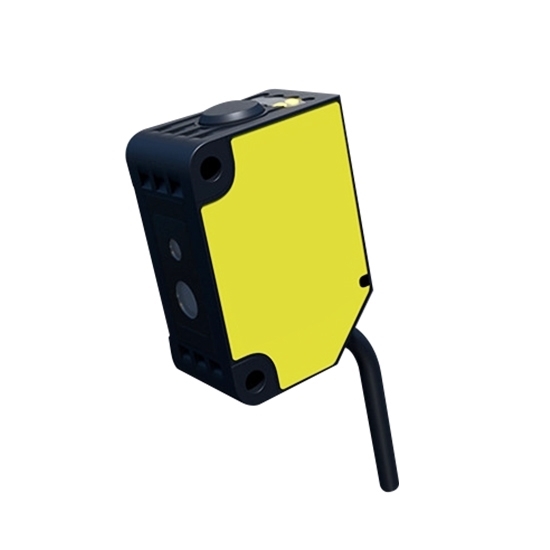

TOF Laser Range Sensor, 0.05m-35m

Compact and easy to install, this laser TOF sensor delivers full-range coverage from 0.05–35m. Ultra-fast response ensures accurate distance measurement. Industrial-grade reliability, operating from 9–30 VDC and -20–55 °C, makes it perfect for automation, robotics, and logistics.

Specification

Feature

• High-Precision Distance Detection: Measuring range of 0.1–35mm, engineered for accurate short-range sensing in industrial environments.
• Transparent Material Detection: The TOF laser range sensor penetrates glass and transparent media, enabling accurate internal liquid level monitoring.
• Smart Background Suppression: Intelligent filtering locks onto the target even when partially blocked by shelves or surrounding structures, ensuring stable detection.
• One-Button NO/NC Switching: The laser sensor supports Normally Open and Normally Closed modes with adjustable sensing distance for flexible configuration.
• Curved Surface Adaptive Algorithm: Automatically compensates for curved surfaces, suitable for applications like automotive windshield detection.
• Smart Output, Plug & Play: The laser distance sensor is compatible with 99% of PLC systems, enabling quick installation without additional conversion modules.
• Reflector-Free Operation: No reflector required, providing greater installation flexibility in industrial automation setups.
• Wide Voltage Input: The laser TOF sensor supports a 9–30 VDC power supply for easy system integration.
• Wide Operating Temperature: Works reliably in -20–55 °C environments.

Size (unit: mm)

Tips: What is a TOF laser range sensor?

A TOF (Time of Flight) laser range sensor is a distance measurement device that calculates the distance to a target by measuring the time it takes for a laser pulse to travel to the object and reflect back to the sensor. By using high-speed light signals, TOF technology enables fast, accurate, and stable distance measurement. Compared with traditional sensing methods, TOF laser range sensors typically provide higher precision, longer measurement range, and faster response. They are widely used in industrial automation, logistics positioning, level measurement, and equipment distance monitoring applications.
