    Laser Distance Sensor, 85mm

    5 out of 5 based on 1 reviews | Write a review
    $1,237.62

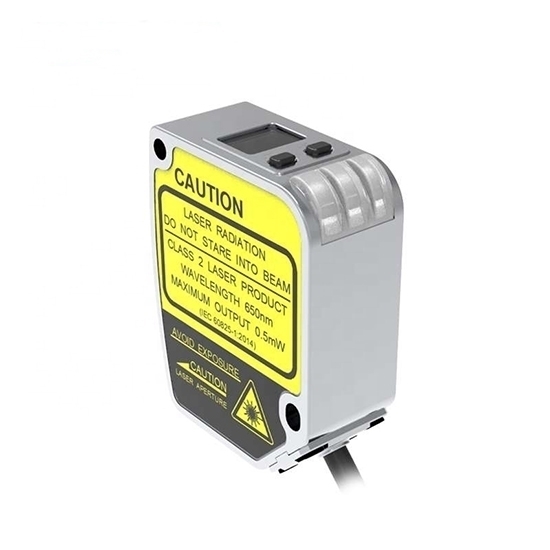

    Cost-effective laser distance sensor has 85mm measuring center distance. High accuracy laser distance sensor has power supply 10-30V DC/ 12-24V DC, protection class IP67, 30um@85mm resolution, laser spot diameter Φ0.5@85mm and CE, UL, CCC, ROHS certificates .
    SKU: ATO-LDS-PDACC85
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • Exquisite appearance and light aluminum housing, easy to mount and dismount.
    • Convenient operation panel with visualized OLED display to complete all function settings fastly.
    • Small diameter light spot to accurately measure very tiny objects.
    • Key or remote teach-in to easily set response time for different applications.
    • Powerful function setting and flexible output way.
    • Complete shielded desgin, stronger anti-interference perfomance.
    • IP67 protection degree, able to work in water or dusty environment.

    Specification

    Model PDA-CC85DGR PDA-CC85TGI
    Linear Accuracy ±0.3% F.S ±0.4% F.S
    Supply Voltage 10-30V DC 12-24V DC
    Output Signal RS-485 (Support Modbus protocol) 4-20mA (Load resistance< 390Ω)
    Connection 2m 5-pins/ 4-pins PVC cable 4-pin: analog output
    Light Source Red laser (650nm)
    Laser Class  Class 2
    Spot Diameter Φ0.5@85mm
    Measuring Center Distance 85mm
    Measuring Range ±25mm
    Resolution 30um@85mm
    Repeated Accuracy  60um
    Voltage Drop <2.5V
    Power Consumption ≤ 700mW
    Load Current 200mA
    Circuit Protection Short circuit, reverse polarity, overload protection
    Ambient Temperature -10-50℃
    Temperature Drift ±0.04%  F.S./℃
    Response Time 2ms/ 16ms/ 40ms (configurable)
    Ambient Humidity 35-85% RH (No condensation)
    Anti-ambient Light Incandescent light: <3,000lux
    Impluse Withstand 500m/s² (About 50G)3 times each in X, Y, Z directions
    Vibration Resistance 10-55Hz Double amplitude 1mm, 2h each in X ,Y, Z directions
    Protection Degree  IP67
    Material Housing: Aluminum; Lens cover: PMMA; Display panel: PC
    Accessory Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
    Dimension 65*51*23mm
    Certificates CE, UL, CCC, ROHS
    Warranty 12 months

    Remark:

    ①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90% white card.
    ②The statistical data follows the 3σ criteria
    ③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
    ④Slave address,baud rate setting only for RS-485 series.
    ⑤Protecion circuit only for switch output.

    Dimension (unit=mm)



    Dimension of laser distance sensor

    Accessory Dimension

    Accessory dimension of laser distance sensor

    Wiring diagram

    Wiring diagram of laser distance sensor

    Remark:
    The sensors are equipped with shielded cables, Q is the switch output.
    RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
    Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

    Installation of laser distance sensor

    Installation of laser distance sensor

    Tips: Safety Warning of Laser Distance Sensor.

    1. Do not use in an environment with flammable,explosive or corrosive gases.
    2. The RS485 communication line should not be too long.
    3. Do not disassemble,repair or modify this product without authorization.
    4. This product is dangerous, please do not look directly at the laser or observe the optical system through the lens.
