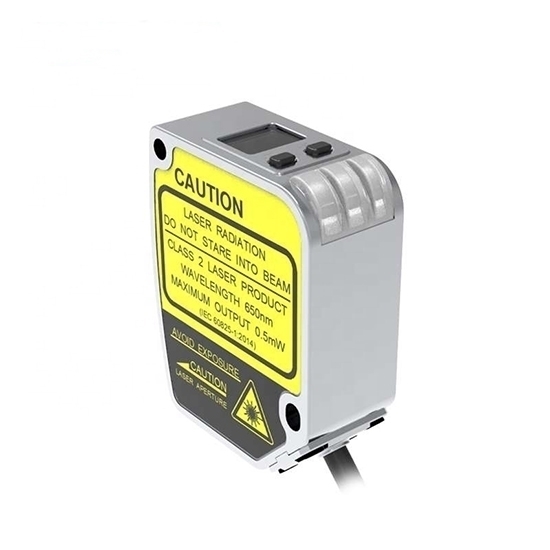

Laser Distance Sensor, 150-1000mm

5 out of 5 based on 2 reviews | Write a review

$1,302.11

Economical price laser distance sensor with small outer size 65*51*23mm, measuring range 150-1000mm, spot diameter Φ3mm@1000mm, power supply 10-30V DC/ 12-24V DC, protection class IP67, RS-485 (Support Modbus protocol)/ 4-20mA (Load resistance< 390Ω) two output signals can be chosen.

Output Signal *

SKU: ATO-LDS-PDACC100

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Features

Exquisite appearance and light aluminum housing, easy to mount and dismount.
Convenient operation panel with visualized OLED display to complete all function settings fastly.
Small diameter light spot to accurately measure very tiny objects.
Key or remote teach-in to easily set response time for different applications.
Powerful function setting and flexible output way.
Complete shielded desgin, stronger anti-interference perfomance.
IP67 protection degree, able to work in water or dusty environment.

Specification

Model	ATO-PDA-CC100DGR	ATO-PDA-CC100TGI
Linear Accuracy	±0.6% F.S	±0.3% F.S (150-450mm) / ±0.6% F.S (450-1000mm)
Supply Voltage	10-30V DC	12-24V DC
Output Signal	RS-485 (Support Modbus protocol)	4-20mA (Load resistance< 390Ω)
Connection	2m 5-pins/ 4-pin PVC cable	2m 4-pin PVC cable
Light Source	Red laser (650nm)
Laser Class	Class 2
Spot Diameter	Φ3mm@1000mm
Measuring Range	150-1000mm
Resolution	50um@150mm; 2000@1000mm
Repeated Accuracy	100um@150mm; 520um@500um; 4000um@1000mm
Voltage Drop	<2.5V
Power Consumption	≤ 700mW
Load Current	200mA
Circuit Protection	Short circuit, reverse polarity, overload protection
Ambient Temperature	-10-50℃
Temperature Drift	±0.02% F.S./℃
Response Time	2ms/ 16ms/ 40ms (configurable)
Ambient Humidity	35-85% RH (No condensation)
Anti-ambient Light	Incandescent light: <3,000lux
Impluse Withstand	500m/s² (About 50G)3 times each in X, Y, Z directions
Vibration Resistance	10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
Protection Degree	IP67
Material	Housing: Aluminum; Lens cover: PMMA; Display panel: PC
Accessory	Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
Dimension	655123mm
Certificates	CE, UL, CCC, ROHS
Warranty	12 months

Remark:

①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card.
②The statistical data follows the 3σ criteria
③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
④Slave address,baud rate setting only for RS-485 series.
⑤Protecion circuit only for switch output.

Dimension (unit=mm)

Dimension of laser distance sensor

Accessory Dimension

Wiring diagram

Wiring diagram of laser distance sensor

Remark:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

Installation of laser distance sensor

Installation of laser distance sensor

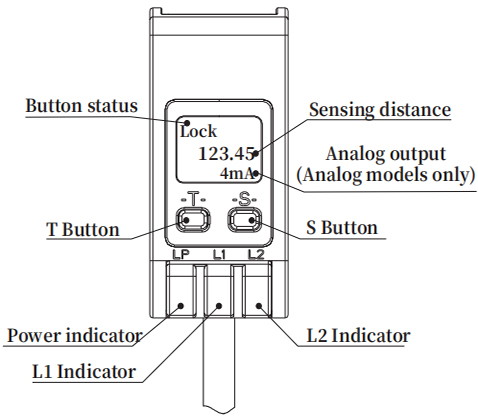

Tips: Panel Introduction of Laser Distance Sensor.

1. Button
Used to set the switch output logic of the sensor,operating point,reset,unlock,address,baud rate query,data filtering and analog.

T	Toggle buttom Switch buttom
S	Set buttom Set buttom

2. Indicator
Used to power indicator,sensing indication,alarm indicator.

Product name	Color	Always on/ off	Flashing
LP	Grenn LED	Power indicator	\
L1	Yellow LED	Sensing indicator	Alarm
L2	Yellow LED	Sensing indicator	Alarm

3.Display
Used to display key status,current measured value,current output value,current setting status, setting menu.

Display content	Description
Button status	Button LOCK, Button UNLOCK, RUN
Sensing distance	Real-time display of the distance value and displacement value measured by current sensor.
Analog output	Real-time display of current sensor measurement value conversion output current value.
No DIS	Data transmission error, no measured value display (sensor failure).
Out of range	Out of sensing range
Overload	Switch output overload
OK	Parameter setting successfully
Error	Parameter setting failed (set point is outside the sensing range)

In this video, ATO will show you top ten most used sensors (sensing technologies).

How to Connect Photoelectric Sensors to PLC?

This video introduces the connection method of photoelectric sensors to PLC. Whether it is a photoelectric sensor, proximity sensor or laser switch, their wiring principles are similar. We can use its output signal to control the intermediate relay, or we can input the signal to the PLC for logic control.

How Do Laser Sensor/Switch Work with Relay?

This video shows an example of how laser sensors/switches work with relays. Photoelectric switches, proximity switches or laser sensors are often used as PLC input signals and relay coil controls.
