    High Precision Laser Distance Sensor, 30mm

    5 out of 5 based on 1 reviews | Write a review
    High precision laser distance sensor with load current 200mA, measuring center distance 30mm, response time 2ms/ 16ms/ 40ms can be configurable, laser spot size Φ0.5@30mm, two output signals are optional. It has advantages of light weight, long service life.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days


    • Exquisite appearance and light aluminum housing, easy to mount and dismount.
    • Convenient operation panel with visualized OLED display to complete all function settings fastly.
    • Small diameter light spot to accurately measure very tiny objects.
    • Key or remote teach-in to easily set response time for different applications.
    • Powerful function setting and flexible output way.
    • Complete shielded desgin, stronger anti-interference perfomance.
    • IP67 protection degree, able to work in water or dusty environment.


    Linear Accuracy ±0.3% F.S ±0.4% F.S
    Supply Voltage 10-30V DC 12-24V DC
    Output Signal RS-485 (Support Modbus protocol) 4-20mA (Load resistance< 390Ω)
    Connection 2m 5-pins/ 4-pins PVC cable 4-pin: analog output
    Light Source Red laser (650nm)
    Laser Class  Class 2
    Spot Diameter Φ0.5@30mm
    Measuring Center Distance 30mm
    Measuring Range ±5mm
    Resolution 2.5um@30mm
    Repeated Accuracy  5um
    Voltage Drop <2.5V
    Power Consumption ≤ 700mW
    Load Current 200mA
    Circuit Protection Short circuit, reverse polarity, overload protection
    Ambient Temperature -10-50℃
    Temperature Drift ±0.08%  F.S./℃
    Response Time 2ms/ 16ms/ 40ms (configurable)
    Ambient Humidity 35-85% RH (No condensation)
    Anti-ambient Light Incandescent light: <3,000lux
    Impluse Withstand 500m/s² (About 50G)3 times each in X, Y, Z directions
    Vibration Resistance 10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
    Protection Degree  IP67
    Material Housing: Aluminum; Lens cover: PMMA; Display panel: PC
    Accessory Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
    Dimension 65*51*23mm
    Certificates CE
    Warrnaty 12 months

    ①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90% white card.
    ②The statistical data follows the 3σ criteria
    ③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
    ④Slave address,baud rate setting only for RS-485 series.
    ⑤Protecion circuit only for switch output.

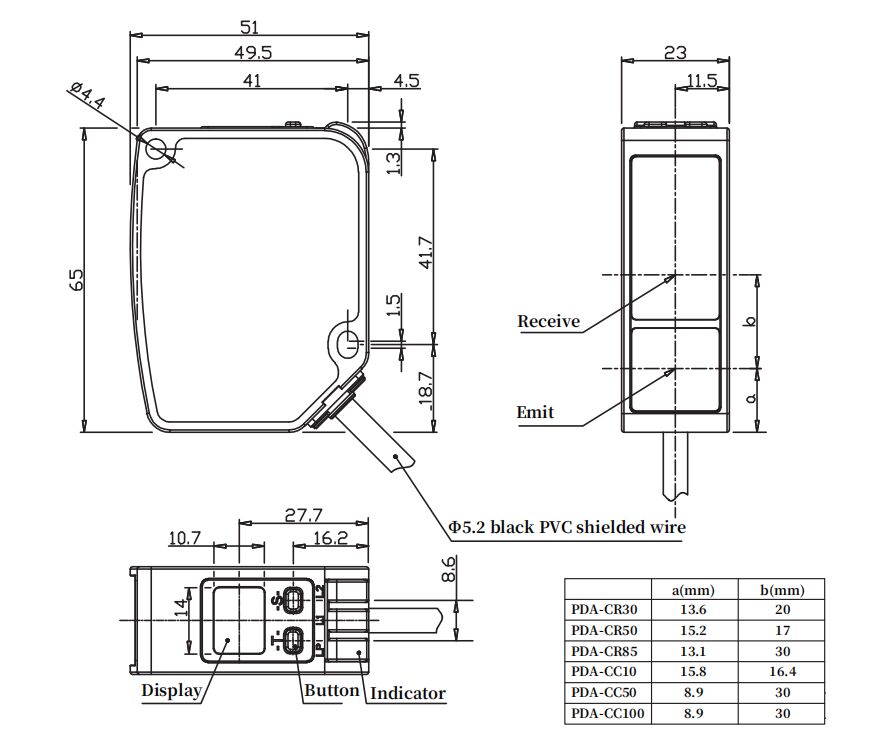

    Dimension (unit=mm)


    Dimension of laser distance sensor

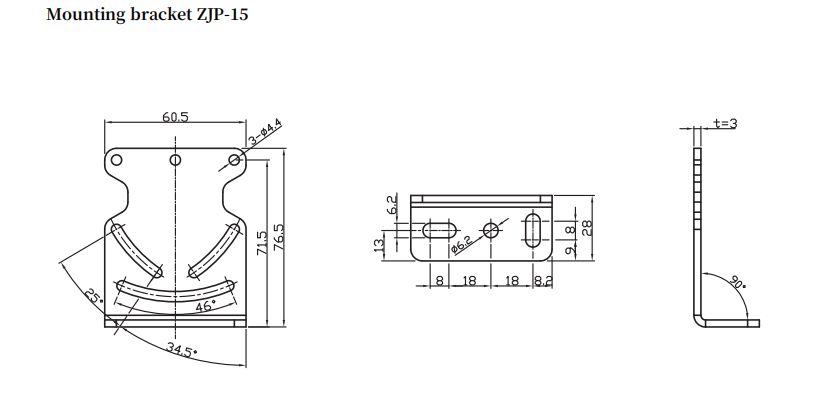

    Accessory Dimension

    Accessory dimension of laser distance sensor

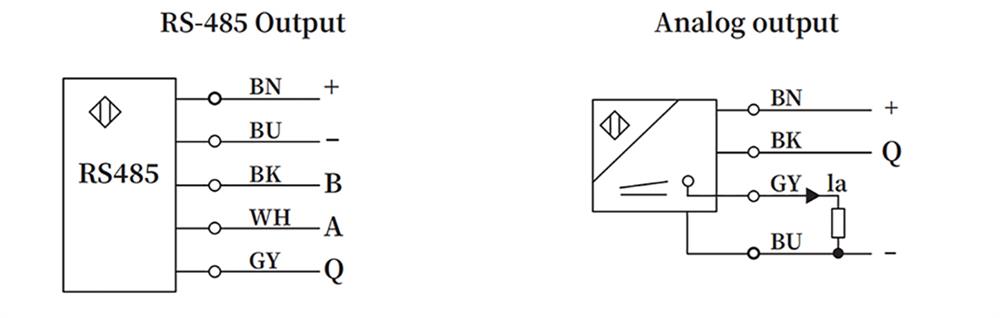

    Wiring diagram

    Wiring diagram of laser distance sensor

    The sensors are equipped with shielded cables, Q is the switch output.
    RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
    Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

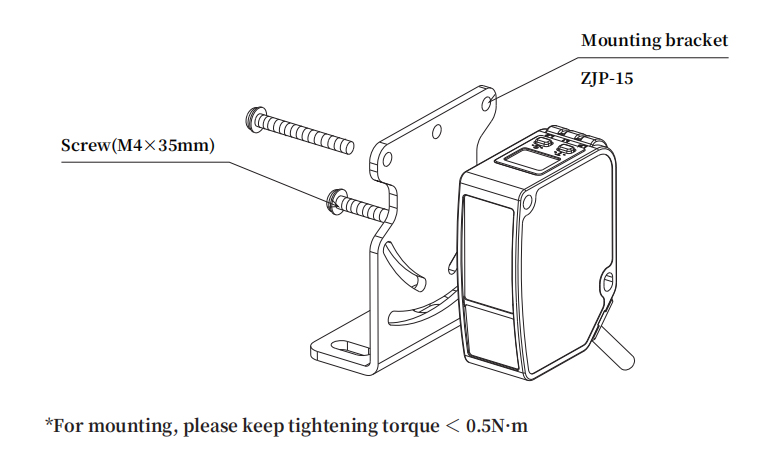

    Installation of laser distance sensor

    Installation of laser distance sensor

    Tips: The Advantages of Laser Distance Sensor.

    1. Wide measurement range and fast response speed.
    2. No reflector is needed for long-distance measurement.
    3. High measurement accuracy and large range.
    4. 905 nanometer safety laser is not harmful to human eyes.
    5. Small size, easy to install and debug.
    6. Online continuous measurement achieves unattended continuous monitoring.
