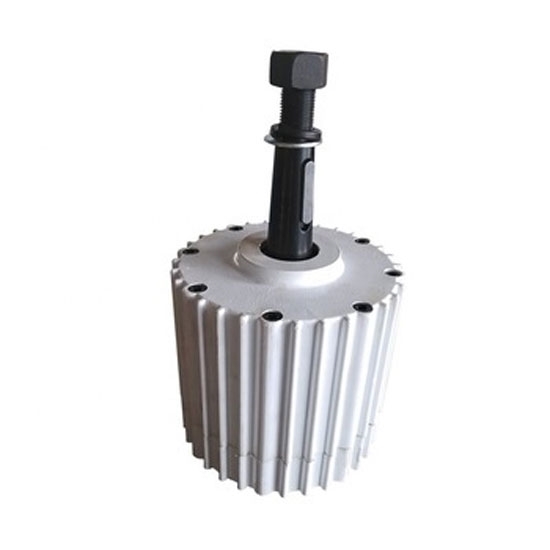

    1.5 KW 48v/120v/220v Alternator, 3 Phase

    5 out of 5 based on 1 reviews | Write a review
    Cheap 1500W low rpm alternator, three phase, wind turbine alternator with rated voltage 48V / 96V / 120V / 220V can be selected, rated speed 500 rpm, suitable for working in harsh environments with humidity or dust.
    SKU: ATO-PMG-1.5kW
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High efficiency low rpm permanent magnet generator 1500 watt, rated voltage 48V/ 96V/ 120V/ 220V, rated speed 500rpm, 3 phase permanent magnet generator motor is low in price.

    Note: Special rated voltage and speed can be customized, please contact us.


    Model ATO-PMG-1.5kW
    Rated Power 1500W
    Max Power 2000W
    Rated Voltage 48V/ 96V/ 120V/ 220V
    Rated Speed 500r/m
    Net Weight 23kg
    Output Voltage AC
    Rated Torque 28.65Nm
    Synchronous Generator Phase 3 Phase
    Insulation Class F
    Service Life More Than 20 years
    Bearing HRB or for your order
    Shaft Material Iron
    Shell Material Aluminium Alloy
    Permanent Magnet Material Rare Earth NdFeB
    Protection Grade IP55
    Lubrication Lubrication Grease
    Working Temperature -40℃ - 80 ℃

    Single axis alternator dimension

    Single shaft alternator dimensions

    Double axis alternator dimension: (unit: mm)
    1kW alternator dimension


    • Gearless, direct drive, low RPM permanent magnet generator.
    • Low start up speed due to low cogging and resistive torque design.
    • High standard, quality components for use in harsh and extreme environments for wind turbines.
    • High efficiency and Low mechanical resistance energy loss.
    • Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
    • High strength from the specially desy selecign structure and fully heat treatment aluminium.
    • Generator is designed using speciallted material and treated to resist corrosion and oxidation.
    • Designed for reliable and long operational lifetime under long-term full output.

    Tips: How to keep the voltage stable for permanent magnet generators?

    The principle of voltage stabilization of permanent magnet generators: By changing the conduction angle of the thyristor, the output voltage of the generator is kept stable.

    When the generator rotor rotates, the magnetic field generated by the permanent magnet on the motor rotor cuts the stator windings and induces an AC voltage. The voltage is rectified by the rectifier bridge and supplied to the electrical appliances for operation. The voltage regulator changes according to the voltage level of the generator. The conduction angle of the thyristor keeps the output voltage of the generator stable.

    Existing reviews of 1.5 KW 48v/120v/220v Alternator, 3 Phase
    Other questions about the alternator
    I am part of the university of Toronto wind design team, and we are currently building a wind turbine for competition. Our plan is to use the 600W 12v/24v/48v Alternator, 3 Phase generator. Could you please confirm the number of poles present?  600W 12v/24v/48v Alternator, 3 Phase | SKU: ATO-PMG-600M2
    From: Geno | Date: 24/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    SKU: ATO-PMG-600M2
    See spec and price on:
    The number of poles is 6 pairs, a total of 12 poles.
