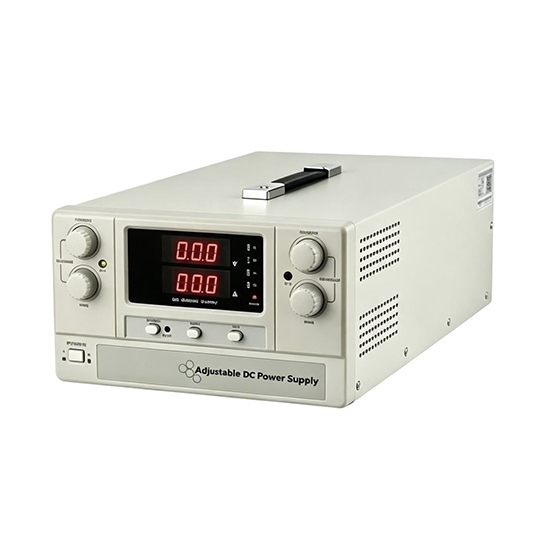

150A 24V 3600W Variable DC Power Supply

$1,468.79

3600W variable DC power supply provides 0–24V adjustable output voltage and 0–150A output current for industrial, laboratory, and electronic testing applications. Featuring stable, low-ripple output, CV/CC operation, potentiometer adjustment, 3½-digit digital displays, and built-in overvoltage, overcurrent, and overtemperature protection.

Input Voltage *

Single Phase AC 220V
Single Phase AC 110V [+$188.00]

SKU: ATO-VDCPS24150K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This 3600W adjustable DC power supply is built for high-current DC power requirements, delivering regulated output from 0–24V with a maximum current of 150A. Low ripple and strong load regulation help maintain consistent power delivery, while the grounded positive and negative terminals provide greater flexibility for different testing and power applications.

Specification

Model	ATO-JK24150K
Input Voltage	Single Phase 110V or 220V AC (±15%)
Input Frequency	50/60 Hz
Output Voltage	DC 0–24V
Output Current	0–150A
Output Power	3600 W
Power Supply Stability	≤0.5% + 10 mV
Load Regulation	≤0.5% + 30 mV
Ripple	≤0.5% + 10 mV RMS
Voltage Display	3½-digit digital meter; Accuracy: ±0.5% FS + 1 digit (10%–100% of rated value); Display range: 00.0–24.0V
Current Display	3½-digit digital meter; Accuracy: ±0.5% FS + 1 digit (10%–100% of rated value); Display range: 00.0–150.0A
Insulation Resistance	Input-Output: ≥20 MΩ; Input-Case: ≥20 MΩ; Output-Case: ≥80 MΩ
Dielectric Strength	Input-Output: AC 1500V, 10mA, 1 minute; Input-Case: AC 1500V, 10mA, 1 minute; Output-Case: AC 1500V, 10mA, 1 minute
Overvoltage Protection	Built-in OVP; protection threshold: rated output voltage +5%
Overcurrent Protection	Constant-current output under overload and short-circuit conditions
Overtemperature Protection	Built-in OTP; protection threshold: 85°C ±5°C (heatsink temperature)
Voltage and Current Adjustment	Potentiometer
Output Polarity	Positive (+) and negative (-) outputs can be grounded independently
Cooling Method	Forced-Air Cooling
Operating Environment	Indoor use; Temperature: -10°C–40°C; Humidity: 10%–85% RH
Storage Environment	Temperature: -20–70°C; Humidity: 10%–90% RH
Dimensions	430 × 255 × 155 mm (L × W × H)
Weight	18kg

Note: All values are typical and may vary under different load conditions or operating circumstances. Accuracy is measured under load-side voltage sensing conditions. Deviations from rated values may occur due to temperature variations and component aging.

Feature

High-Current DC Output: Up to 150A at 24V DC makes this 3600W adjustable DC power supply suitable for high-current equipment, electronic testing, battery charging systems, and industrial DC power applications.
Adjustable Voltage and Current: Independent potentiometer controls enable flexible output setting for different load requirements, making the adjustable DC power supply suitable for equipment testing, development, and laboratory applications.
Stable, Low-Ripple Power: Excellent power supply stability and low ripple help maintain consistent DC output under changing load conditions, supporting reliable operation and accurate electronic testing.
Flexible Output Configuration: Positive and negative output terminals can be grounded independently, allowing the variable DC power supply to integrate into different circuit configurations, test benches, and DC power systems.
Reliable High-Power Performance: Forced-air cooling assists heat dissipation during continuous operation, while overvoltage, overcurrent, short-circuit, and overtemperature protection enhance safety and reliability in demanding applications.

Detail

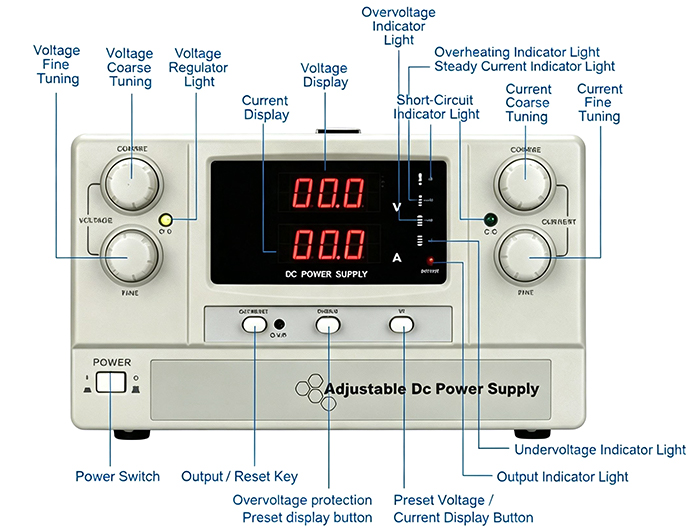

Front

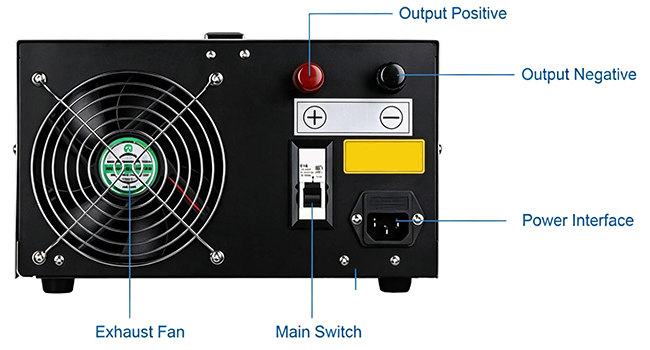

Back

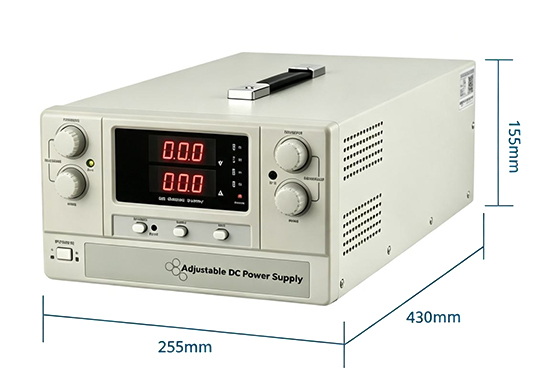

Size (unit: mm)

150A 24V variable DC power supply size

Tips: How Can a 3600W Variable DC Power Supply Maintain Stable Operation?

During continuous high-power operation, maintain adequate ventilation around the 3600W variable DC power supply and keep the cooling airflow unobstructed. Stable input power and properly rated wiring help minimize voltage fluctuations and excessive heat. Regular monitoring of output voltage, current, and operating temperature can also support reliable performance and extend the service life of the adjustable DC power supply.
