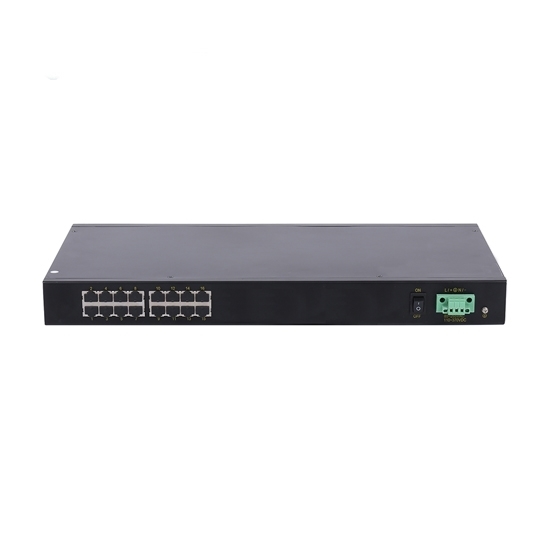

16 Port Unmanaged Industrial Switch, Layer 2, Rack Mount

5 out of 5 based on 1 reviews | Write a review

$422.31

Industrial-grade standard 19-inch rack mounting Layer 2 unmanaged Ethernet switch, 16 10/100M Tx RJ45 ports, supports auto-negotiation, auto-MDI/MDI-X and other functions, single AC 85-264V and DC 110-370V isolate power supply, designed for industrial high-speed communication network applications.

SKU: ATO-ES-EN2016

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

Cost-effective 16 ports industrial Ethernet switch, plug and play unmanaged switch, IP40 protection and wide operating temperature range from -40 to 85°C, suitable for harsh industrial environments.

Specification

Model	ATO-EN2016
Technical Parameters
Protocol Standard	IEEE802.3(Ethernet ), IEEE802.3u (100Base-TX & 100Base-FX), IEEE802.3x (Flow Control)
Switch Capability
MAC Table Size	8k
Backplane Bandwidth	4.8Gbps
Switch Delay	<5μs
Interface
100M Port	Number:16
	Connector: RJ45 100M TX port
	Baud rate: Self-adaption 10/100Mbase-TX
Terminal Block for Power Input	5.08mm terminal block
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
LED Indicator Lights
Front Panel LED Lights	Port light: LINK/ACT, SPEED
	System work light: RUN
	Power status light: PWR
Power
Input Power	AC/DC 110V, 120V, 220V, 230V (85-264VAC/110-370VDC)
Power Consumption	<25W@(MAX)
Overload Protection	support
Inversed Protection	support
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 19-inch rack mounting
Dimension	482.6mm × 44mm × 210mm (W×H×D)
Weight	1.7kg
Industry Standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6

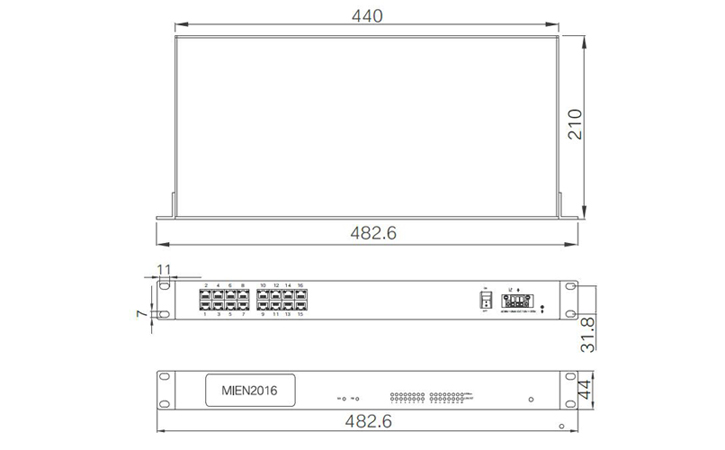

Dimensional Drawing (mm)

16 Port Rackmount Unmanaged Ethernet Switch Dimension

Tips: The difference between Ethernet switch and router
1. The Ethernet switch is used to distribute network data. The router can automatically assign IP to your LAN, virtual dialing, like a traffic policeman, directing where your computer should go.
2. The Ethernet switch is at the relay layer, and the switch is addressed according to the MAC address. The router is at the network layer, the router is addressed according to the IP address, the router can handle the TCP/IP protocol, and the switch cannot.
3. The Ethernet switch can connect many hosts, and each of these hosts has its own IP. A router can assign an IP to a number of hosts, and these hosts only show one IP to the outside.
4. The router can provide a firewall, and the switch cannot provide this function.
